Accessory Jacks and
Controls
The AR-80 is equipped with various input/output terminals and miscellaneous controls, the
functions of which are described below.

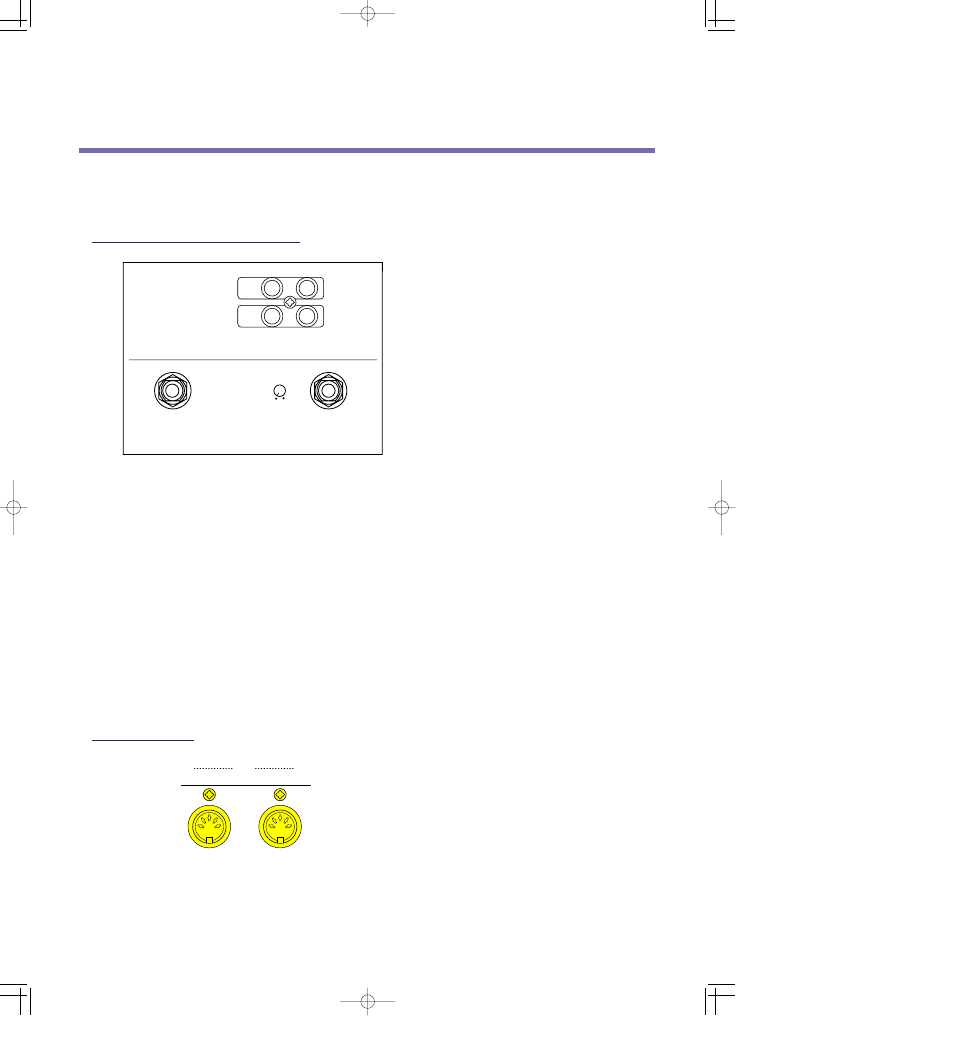

Underside of Keyboard
1 AUX IN jacks (RCA)
For connection of another sound source (CD player, tone generator, etc.). The sound is
mixed with the sound of the AR-80 and played through the built-in speakers.
2 AUX OUT jacks (RCA)
For connection to an external mixer, recorder, or amplifier/speaker system. Use these in
recording or live performance applications.
3 PHONES jack
For connection of a stereo headphone set. The built-in speakers are automatically turned off
when this is connected.
4 MIC VOL (Microphone Volume)
For adjusting the level of the microphone input.
5 MIC (Microphone) jack (1/4” phone)
For connection of a microphone.
Rear Panel
MIDI IN/OUT terminals (rear panel)
For connection to MIDI instruments and devices. (See page 162 for more information.)
IN
OUT
MIDI
MIC
PHONES
AUX
IN
MIC VOL
MIN
MAX
AUX
OUT
1
2
3
4
5
