TECHNICAL DATA
52
XEROX WIDE FORMAT 510dp OPERATOR MANUAL
Space requirements

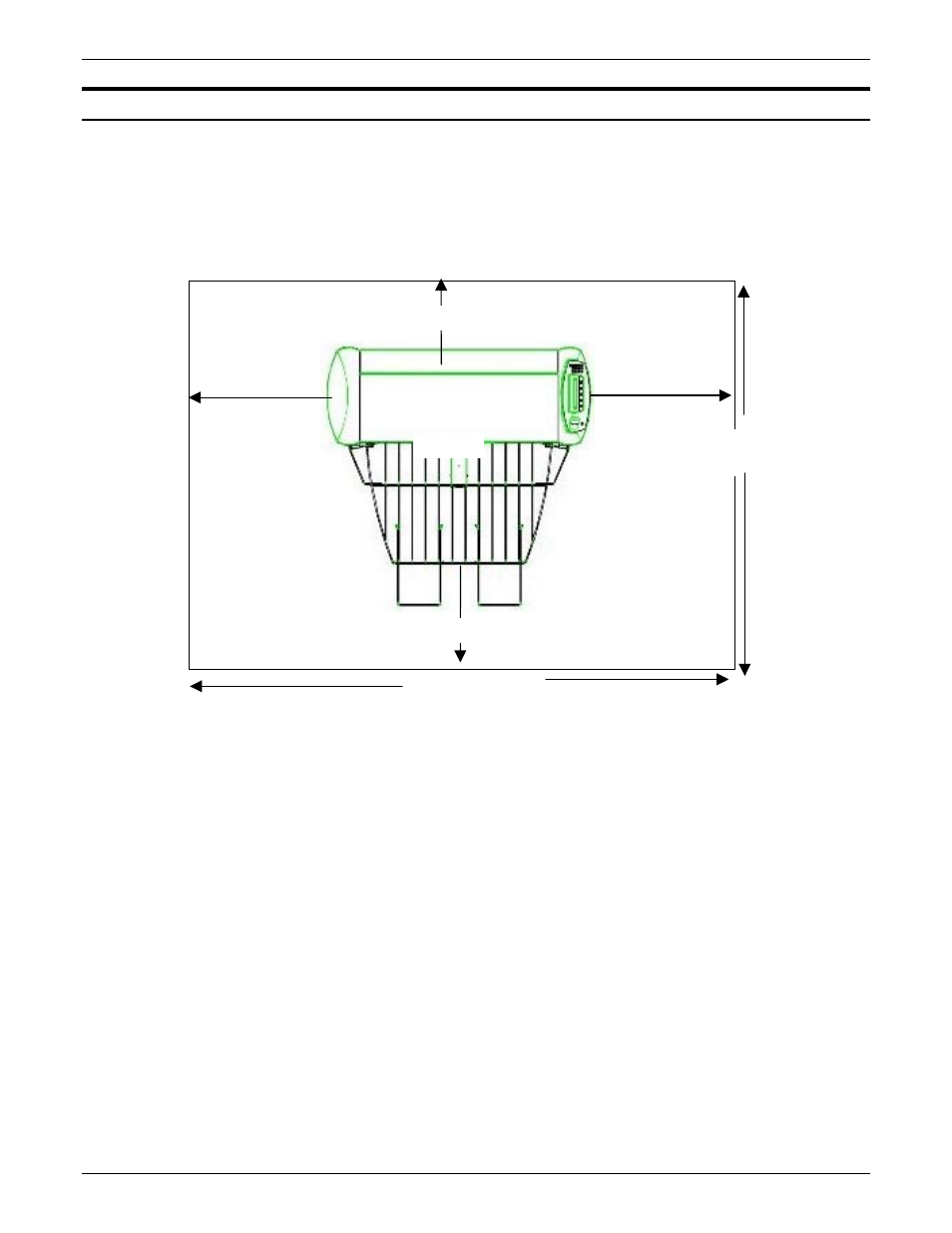

The illustration below shows the space requirements for normal
operation of the printer after installation.
The height clearance from the floor to the nearest overhead
obstruction within the floor space requirement is 78 inches (1981
mm).
NOTE: Once installed, this machine is not considered movable. If
moved, re-leveling of the machine will be required.
36" (914 mm)
36" (914 mm)
Top view
129"
(3277 mm)
83"
(2108 mm)
36" (914 mm)
24" (610 mm)
