PROBLEM SOLVING
38 XEROX WIDE FORMAT 510dp OPERATOR MANUAL
Fuser area jam
To clear a jam in the fuser area:

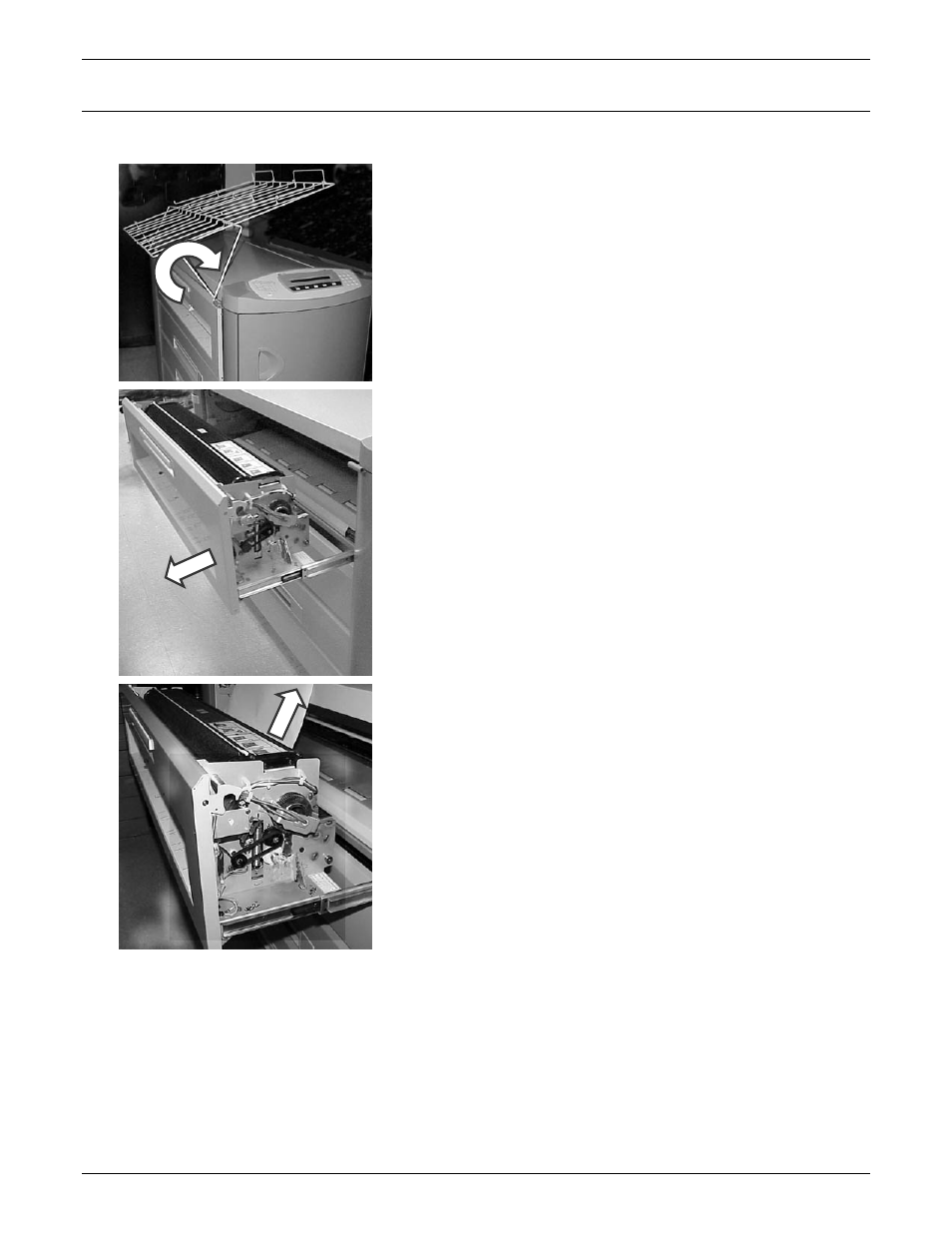

1. Raise the output tray all the way so that it rests on top of the
printer.
WARNING: Do not touch the fuser roll while clearing media jams
in the fuser area. The fuser roll is very hot and can cause severe
burns.
2. Open the fuser drawer all the way.
3. Do one of the following:
• Pull the jammed media out the back of the fuser area. Go
to step 7.
• If you cannot pull the jammed media out of the fuser area,
go to step 4.
