ES-4124 Support Notes
All contents copyright (c) 2006 ZyXEL Communications Corporation.
53
Configuration of IGMP snooping by web
In this example, we enable the IGMP function on the GS-4024 (an IGMP router)
to connect to a multimedia server. Also, we enable IGMP snooping function on
the ES-3124 or other ZyXEL L2 Switch to connect to the multimedia clients.

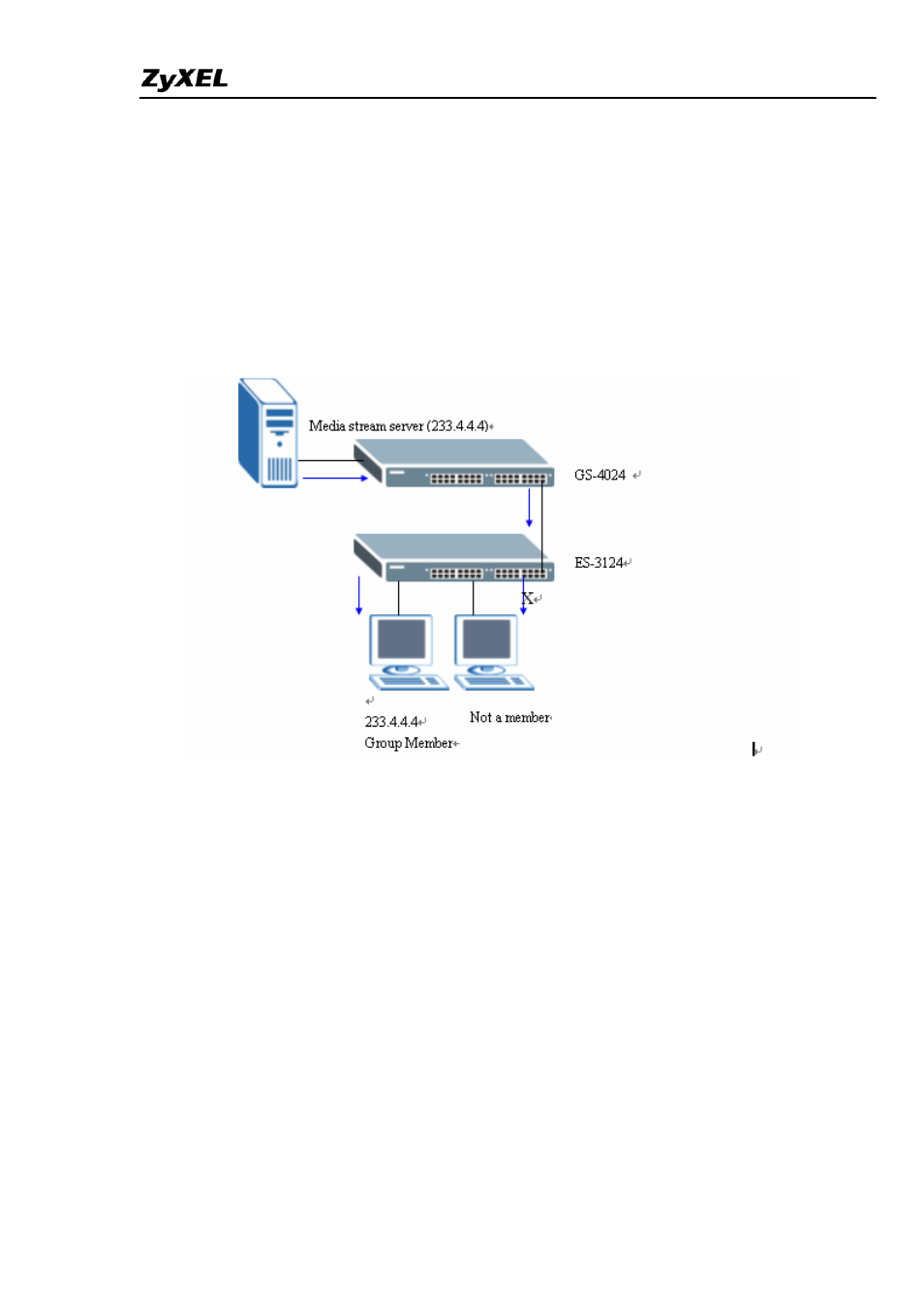

Figure 2: IGMP snooping Example
Step one : In the GS-4024, click the IP Application, select IGMP where,
IGMP function can be enabled and we can select either IGMP-v1 or IGMP-v2.
Figure 3: IGMP Setup
