ES-4124 Support Notes
All contents copyright (c) 2006 ZyXEL Communications Corporation.
113

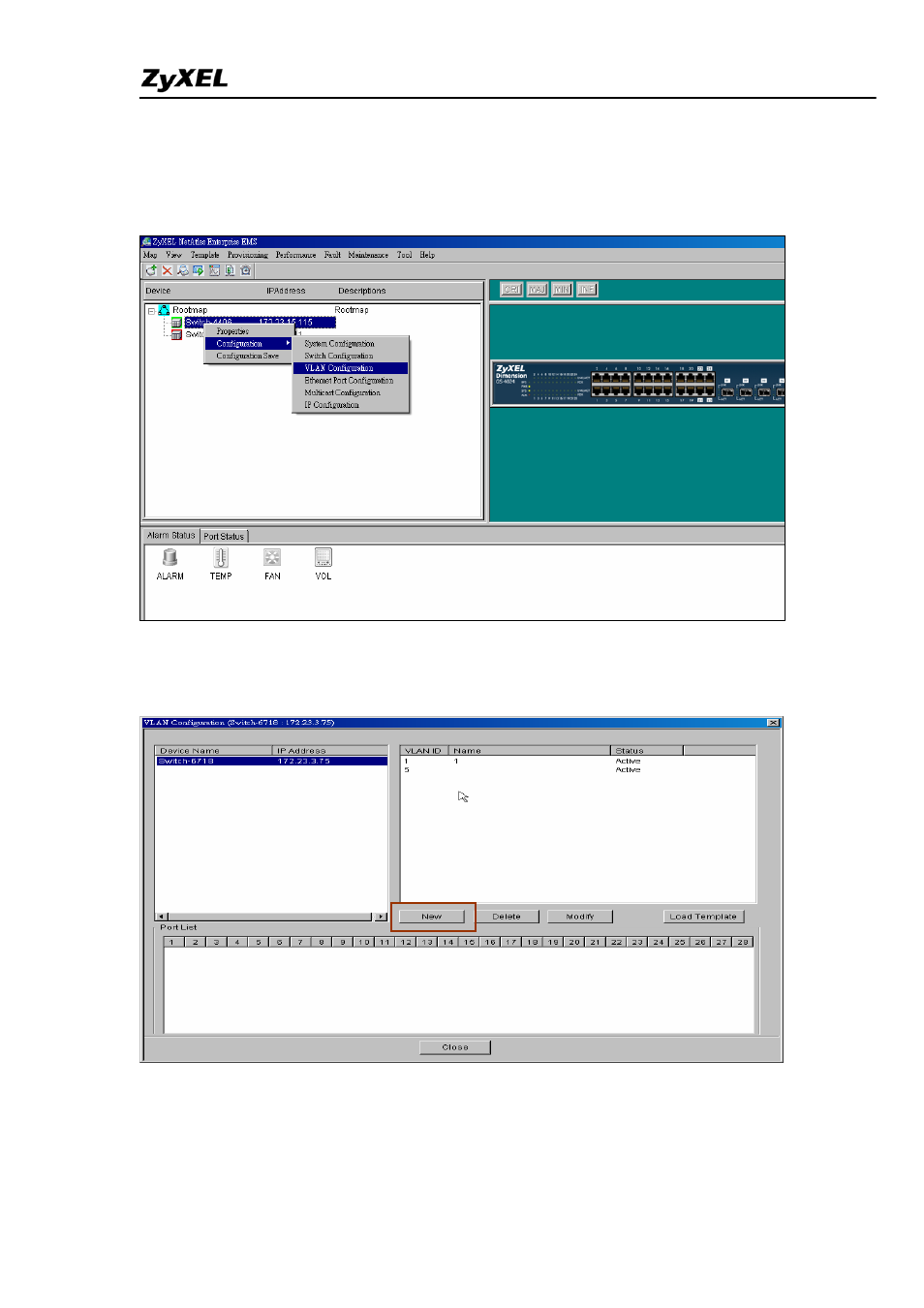

Figure 15.
Figure 15 VLAN Configuration
Click the New button to create a new VLAN ID in Figure 16.
Figure 16 Creating a new VLAN ID
Selecting Egress ports and defines them to be tagged or untagged in Figure 17
Figure 17 Selecting the ports
