Xerox 1150 User Manual
Page 105

ENWW
Changing the printer separation pad 97
4

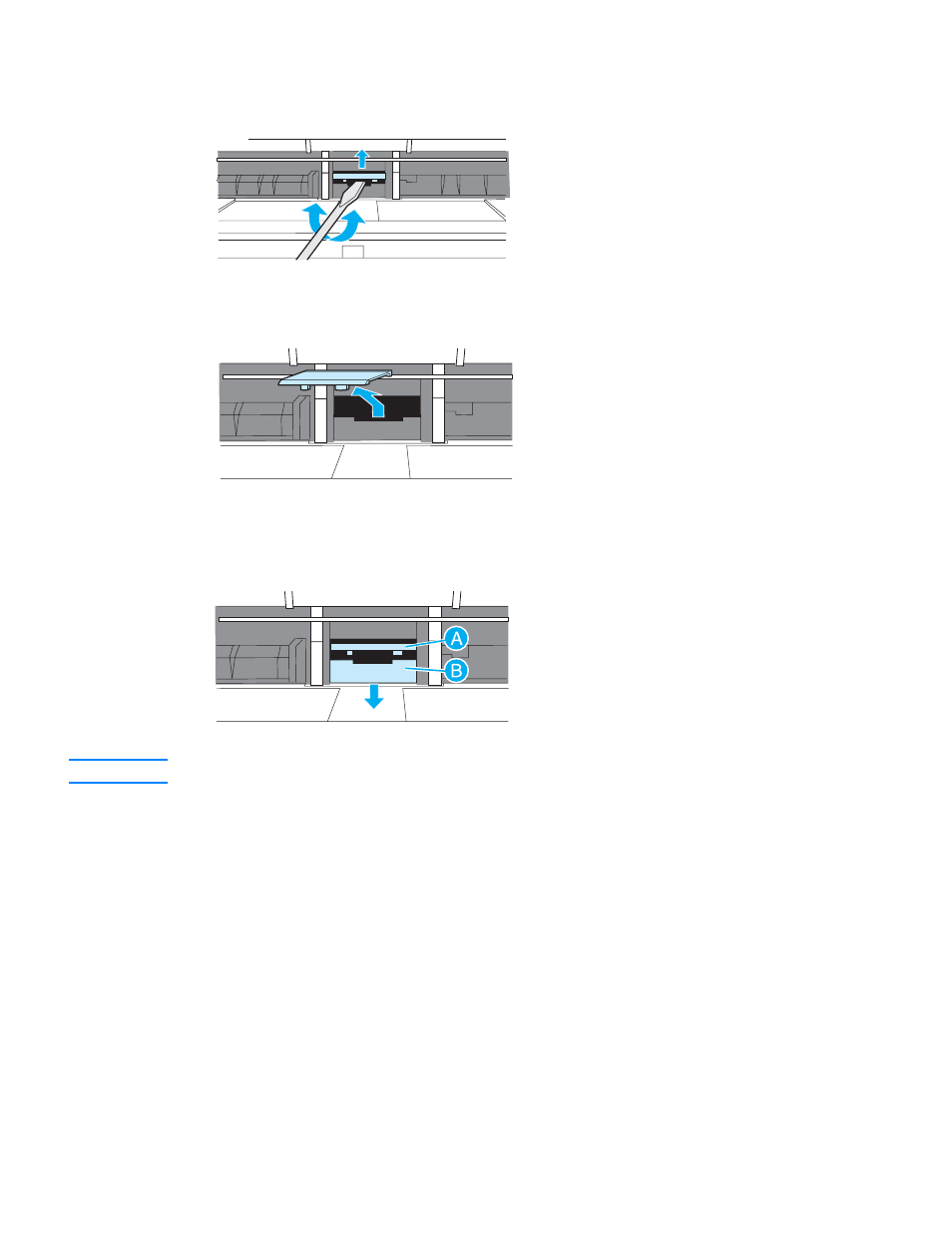

To pry the separation pad up from the spring-loaded base, insert a flat-edged screwdriver in
the slot under the separation pad and twist until the tabs are free.
5
Reach in through the opening, push the spring-loaded base down with one hand, and pull the
separation pad up with the other hand.
6
With one hand, position the new separation pad in the slot of the previous separation pad (A).
With the other hand, reach through the input tray opening, and push the spring-loaded base
down (B).
Note
The tab on the right is larger to help you position it correctly.
