1–14 975-0468-01-01
This guide for use by qualified installers only
Connecting the Equipment Ground
The Freedom HW has a ground stud on the side of the unit as shown in
Figure 1-4. Follow the guidelines in “Grounding Locations” to connect
the inverter’s chassis to the ground.
Grounding Locations
You must connect the equipment ground stud to a grounding point—
usually the vehicle’s chassis or DC negative bus ground—using
recommended copper wire (if insulated then green insulation with or
without one or more yellow stripes) or larger.
For recommended equipment ground cable size, see below.
In general, the equipment ground cable size must not be smaller than one
AWG size than the supply cable.
WARNING: Fire hazard
Never operate the Freedom HW without properly connecting the equipment
ground. A fire hazard could result from improper grounding.

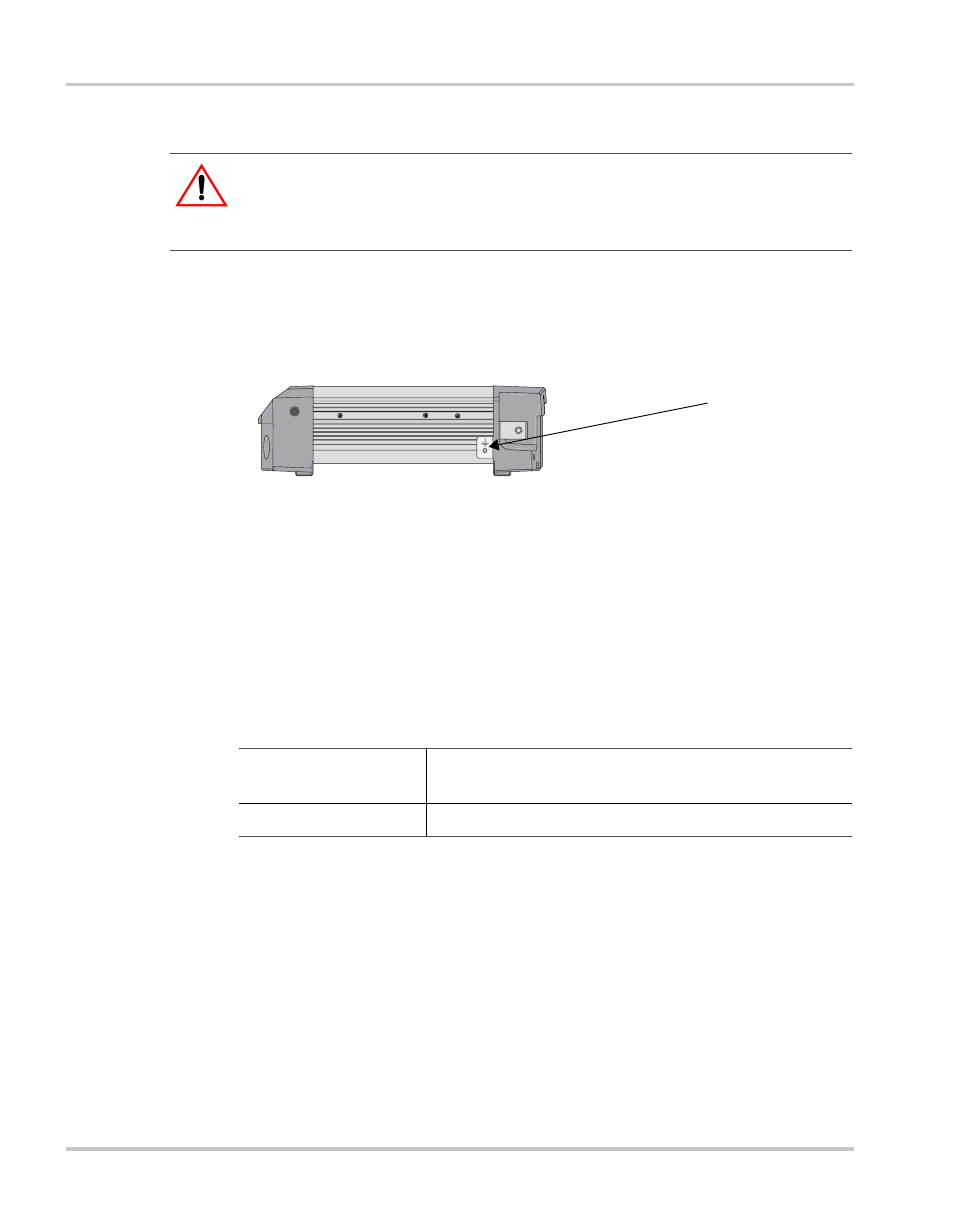

Figure 1-4 DC Panel Connections
Equipment
ground stud
Table 1-3 Recommended Equipment Ground Cable size
Application
Minimum equipment ground cable size
(Stranded cable is recommended)
Recreational Vehicle
a
a.Based on US National Electrical Code NFPA70, Article 551, par. 551-20c 2005
version.
No. 8 AWG
Note: There are no restrictions on length for the equipment ground cable.
