30
MIDI Functions
MIDI, the Musical Instrument Digital Interface, is a world-standard communication interface that allows
MIDI-compatible musical instruments and equipment to share musical information and control one another.
This makes it possible to create “systems” of MIDI instruments and equipment that offer far greater versatility
and control than is available with isolated instruments.

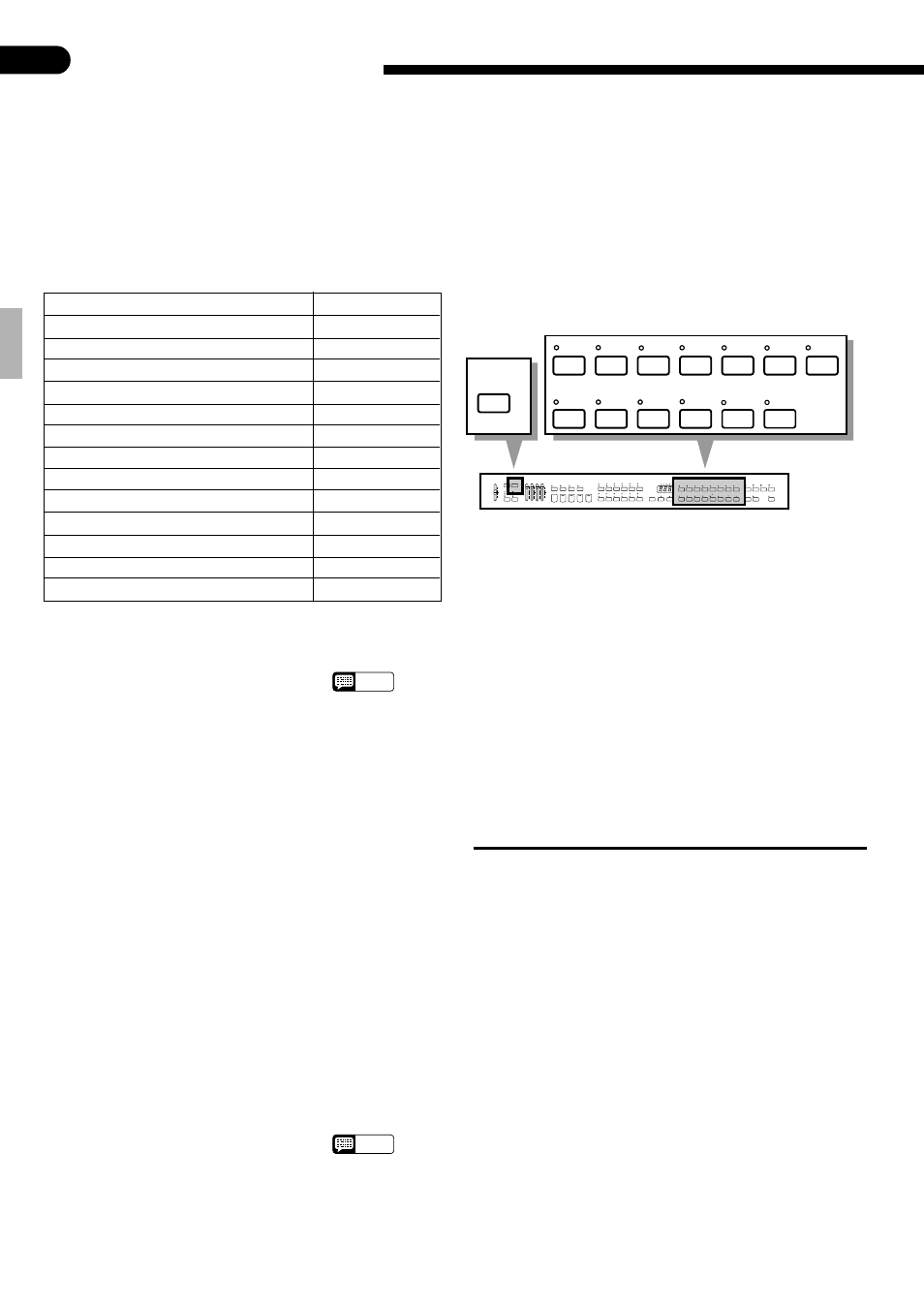

The Clavinova has 13 MIDI functions that are accessed by pressing the appropriate VOICE selector while
holding the [MIDI/TRANSPOSE] button. The MIDI functions accessed by the various VOICE selectors are
shown in the following chart:
Function Selector
1. Send Channel Select PIANO
2. Receive Channel Select CLAVINOVA TONE
3. Local ON/OFF E. PIANO
4. Program Change ON/OFF HARPSI
5. Control Change ON/OFF VIBES
6. Multi-Timbre Mode ON/OFF GUITAR
7. Split Send Mode STRINGS
8. MIDI Clock Select ORGAN
9. Panel Data Transmit CHOIR
10. MIDI Transpose Transmit UPRIGHT BASS
11. Clavinova Common Voice Mode ON/OFF ELEC BASS
12. GM Multi-Timbre Mode DRUMS
13. Performance Memory Data Send VOICE 13-60
The available settings and procedure for each MIDI function are described below.
NOTES
• Always use a high-quality MIDI cable to connect MIDI OUT to MIDI IN terminals.
Never use MIDI cables longer than about 15 meters, since cables longer than this
can pick up noise which can cause data errors.
• When using the Clavinova with other MIDI equipment, always refer to the MIDI
specifications (implementation chart and MIDI data format) of the equipment used
to ensure compatibility.
■
Send and Receive Channel Select
In any MIDI control setup, the MIDI channels of the transmitting and receiving equipment must be matched for
proper data transfer (there are 16 MIDI channels). An “OMNI” receive mode is also available, which allows reception on
all 16 MIDI channels. In the OMNI mode it is not necessary to match the receive channel of the receiving device to the
transmit channel of the transmitting device.
Z
Hold [MIDI/TRANSPOSE] and press [PIANO] to set the send channel or
[CLAVINOVA TONE] to set the receive channel.
X
Use TEMPO [▲] and [▼] buttons to select the desired channel (the selected
channel number is shown on the TEMPO display — the OMNI ON receive
mode is indicated by “ALL” on the display).
C
Release [MIDI/TRANSPOSE].
NOTES
• When the power is initially turned ON, MIDI receive is set to the OMNI ON mode
and the transmit channel is set to 1.
S 1
......
S16
Send channel
r 1
......
r16
Receive channel
ALL
OMNI ON
MIDI/
TRANSPOSE
PIANO E.PIANO HARPSI VIBES GUITAR STRINGS
ORGAN CHOIR UPRIGHT
BASS
ELEC
BASS
CLAVINOVA
TONE
8
1 2 3 4 5 6 7
9 0
RHYTHM
MASTER VOLUME
CHORD 1 CHORD 2 BASS
MIDI/
TRANSPOSE
COSMIC HALL 2 HALL 1 ROOM
SOLO STYLEPLAY START/STOP SOSTENUTO
REVERB LEFT PEDAL
FUNCTION
AUTO ACCOMPANIMENT AUTO BASS CHORD SOLO STYLEPLAY PIANO E.PIANO HARPSI VIBES GUITAR STRINGS SPLIT
ORGAN CHOIR UPRIGHT BASS ELEC BASS DRUMS VOICE 13-60 TEMPO
CLAVINOVA TONE
METRONOME
BEAT VOICE RERFORMANCE MEMORY
8 1 2 3 4 5 6 7 9 0 CHORD SEQUENCE REC START/STOP
RHYTHM ABC 2 1 DEMO POP 2 POP 1 DANCE POP 1 16BEAT 1 ROCK’N’ SHUFFLE
SWING BOOGIE BIG BAND SAMBA BOSSA RHUMBA CHA-CHA MARCH 6/8 MARCH J.WALTZ WALTZ
COUNTRY 1 STYLE
DANCE POP 2 16BEAT 2 16BEAT SHUFFLE
SLOW ROCK COUNTRY 2
JAZZ BALLAD MIN
MAX
MIN
MAX
SOFT
FULL KEYBOARD SINGLE FINGER FINGERED
START/STOP SYNCHRO START INTRO/ENDING NORMAL VARIATION
FILL TO NORMAL FILL TO VARIATION
DRUMS VOICE 13-60
