PREINSTALLATION
XEROX DOCUPRINT 96/DOCUPRINT 96MX LPS INSTALLATION PLANNING GUIDE 3-21
50 Hz system controller and peripheral cabinet power cord configurations

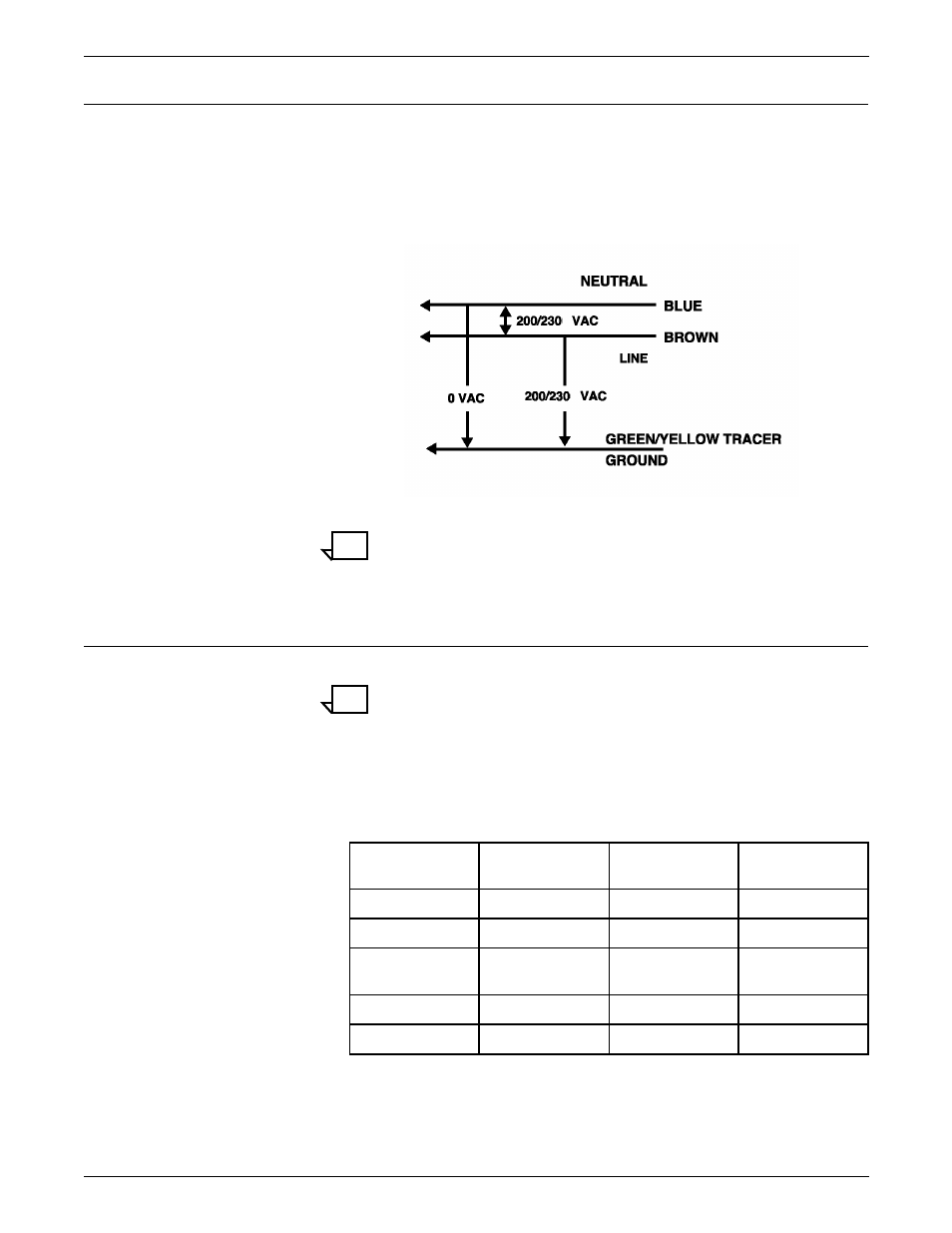

Figure 3-11 shows the 50 Hz system controller power cord
configuration.
Figure 3-11. System controller and peripheral cabinet power
cord 50 Hz installation 200/230 VAC, single phase,
15A
Note: The 50 Hz plug and receptacle specifications vary according
to local codes.
60 Hz printer outlet voltages
Note: All power outlets must have a dedicated circuit for each
system equipment piece. Ensure that each power cord has a
separate circuit.
Refer to table 3-12 for the 60Hz voltage requirements at the power
outlet.
Table 3-12. Printer (50 Hz) voltage requirements at power
outlet
Service outlet
configuration
Measurement Nominal Range
4 Wire Line 1 to Neutral 120 V RMS 107-127 V RMS
4 Wire Line 2 to Neutral 120 V RMS 107-127 V RMS
4 Wire Neutral to
Ground 0 V RMS 0-10 V RMS
4 Wire Line 1 to Line 2 208 V RMS 182-220 V RMS
Line 1 to Line 2 240 V RMS 210-254 V RMS
