PREINSTALLATION
XEROX DOCUPRINT 96/DOCUPRINT 96MX LPS INSTALLATION PLANNING GUIDE 3-3
System controller with peripheral
cabinet
The optional peripheral cabinet has the same height, depth, and
width requirements as the system controller cabinet. Figure 3-2
shows the minimum space requirements for the system controller
with the peripheral cabinet. It is not necessary to position the
cabinets directly adjacent to one another. The cabinets can be
separated by up to the length of the data cable connecting them.
The weight of the peripheral cabinet fully loaded with the 9-track and
18/36-track tape drives is 316 pounds/144 kg.
Note: The 1/4-inch cartridge tape is housed within the system
controller and has no unique space requirements.
Figure 3-2 shows the dimensions of the system controller with the
peripheral cabinet.

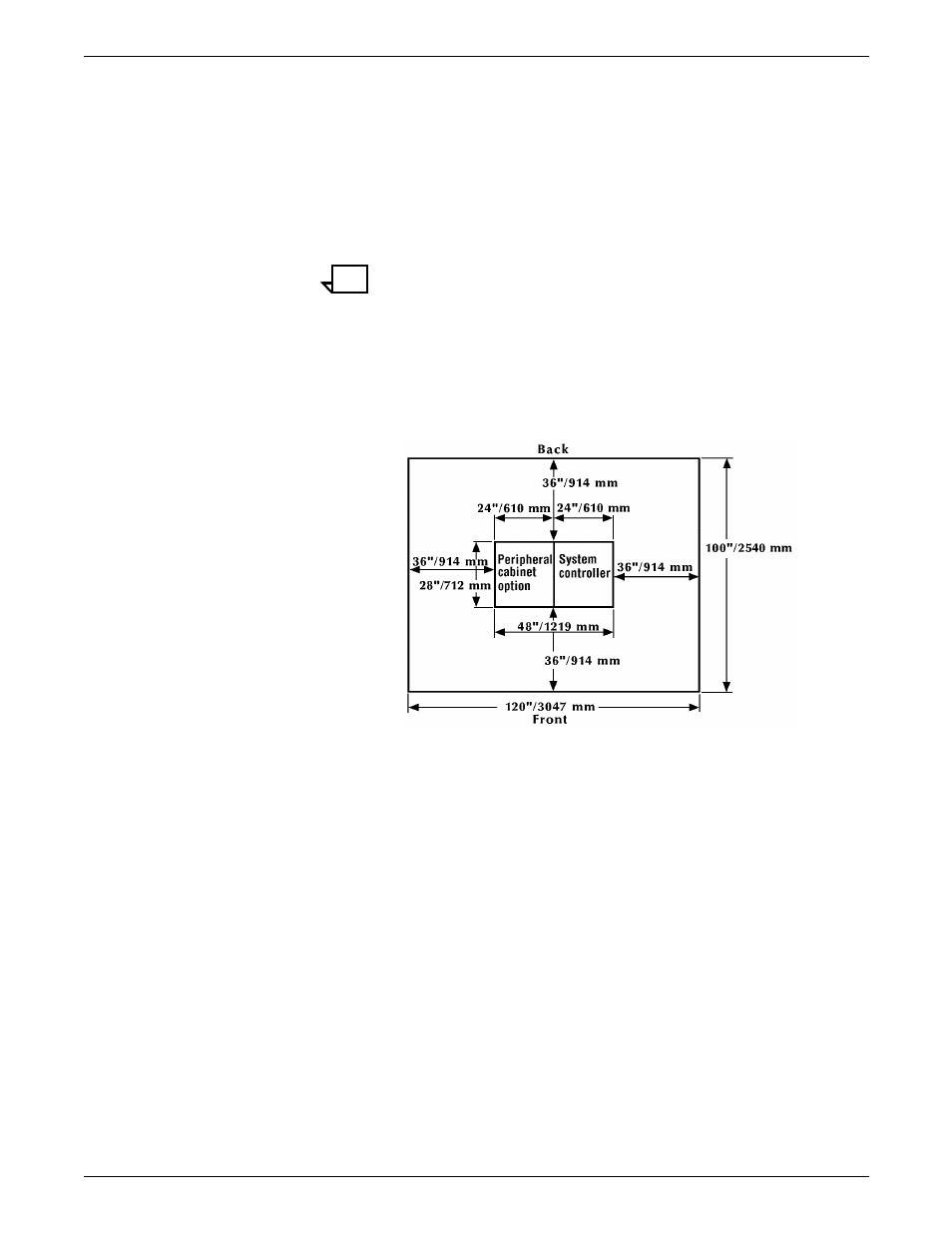

Figure 3-2. DocuPrint 96/DocuPrint 96MX system controller
with peripheral cabinet dimensions and space
requirements (top view)
