Rear panel – Yamaha CRW8824IX Series User Manual
Page 28
Operations

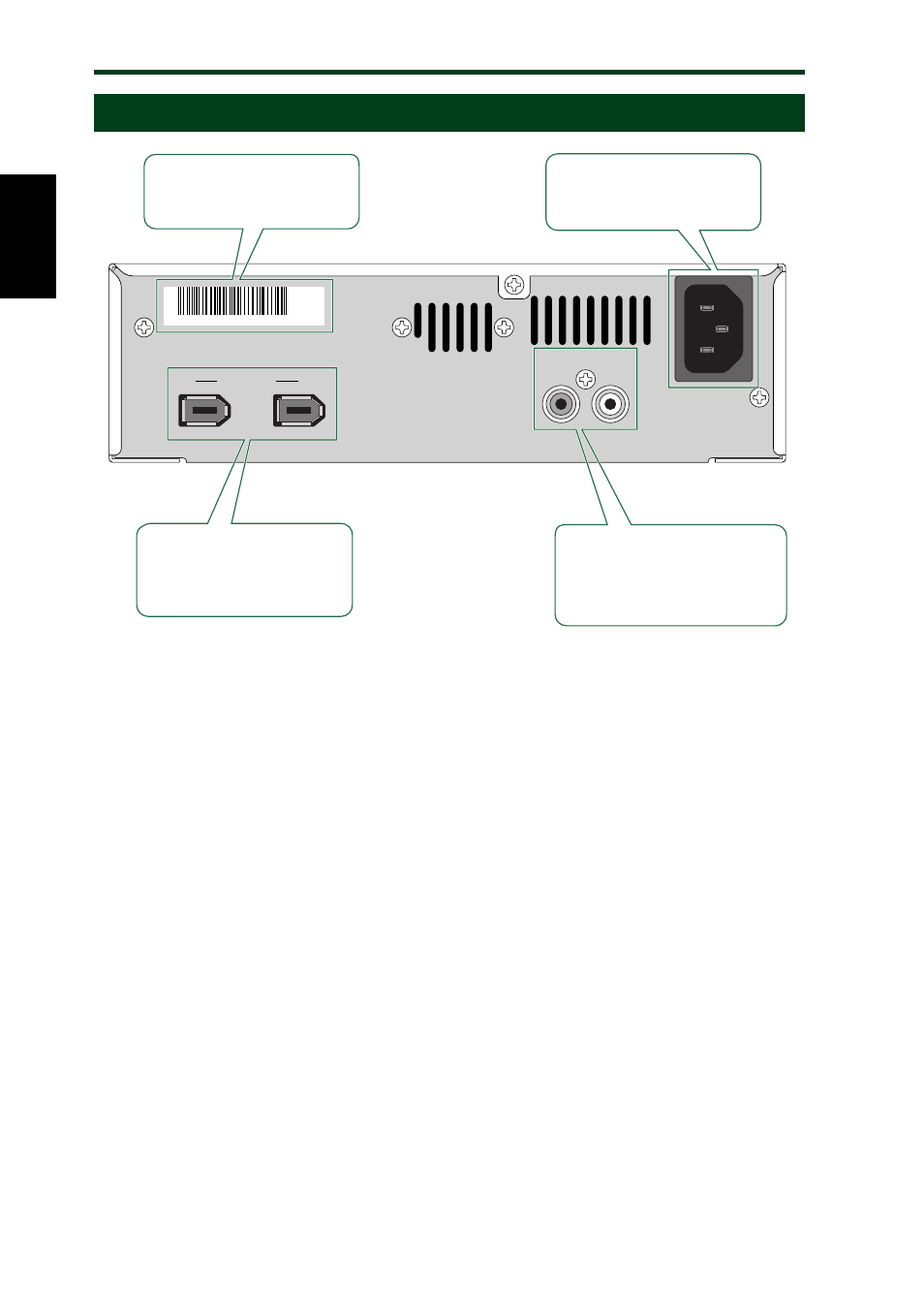

Rear Panel
AC IN
SER. NO.
st2
❋❋❋❋❋❋❋❋
IEEE1394
LINE OUT
R
L
Serial number sticker
(P. 9)
AC IN socket
Connect the supplied
power cable here. (P. 10)
LINE OUT (L/R)
Analog line level audio
outputs. Connect an external
audio device such as powered
speakers here.
IEEE1394 ports
Connect other IEEE1394
devices (including a host
computer) here. (P. 12)
n For more information about how to use the rear panel ports, refer to “Setup Procedures”
(P. 10 to P. 13).
