Yeoman DEVON 50 - Manual (Page 37)

sPaRe PaRts

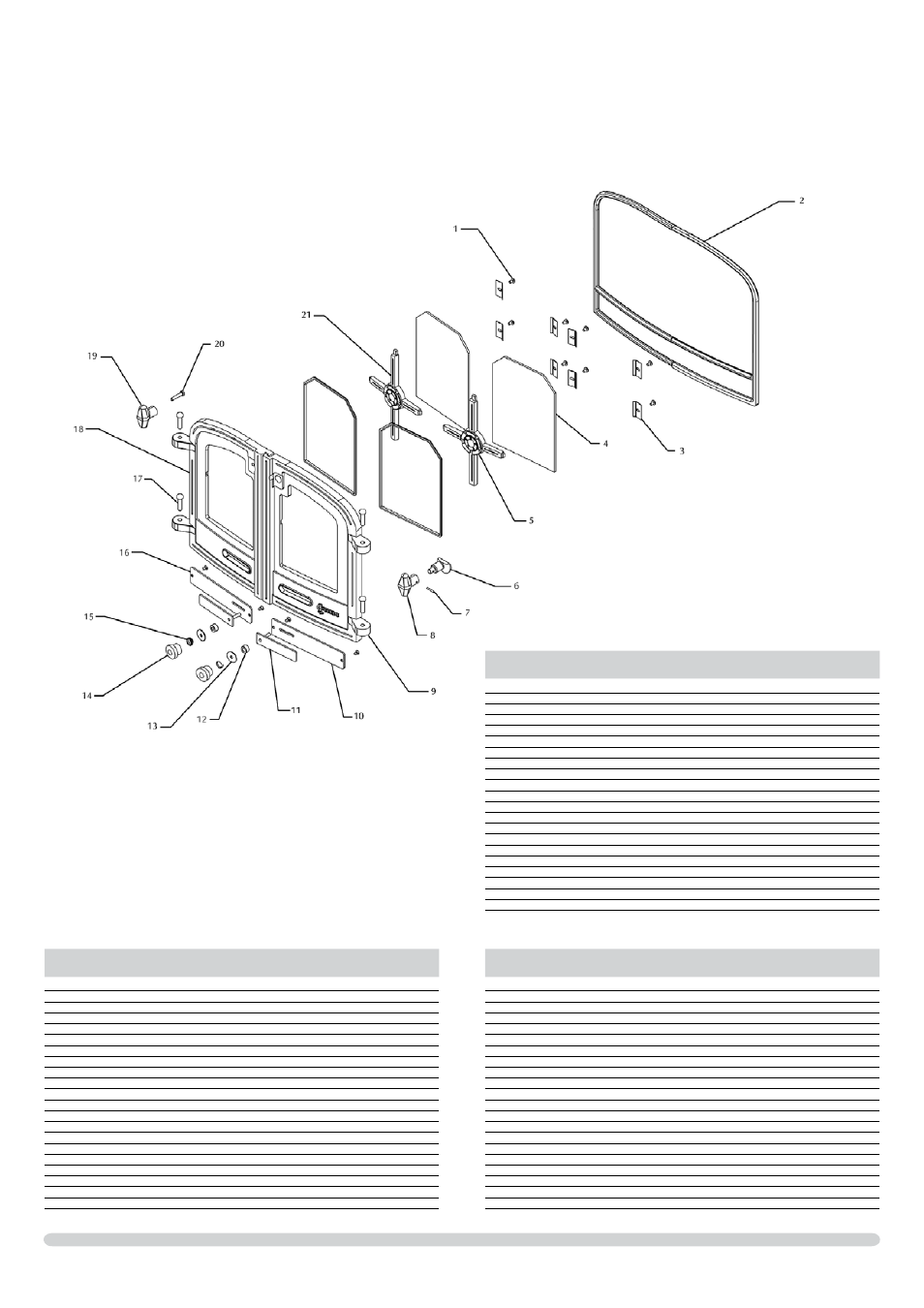

dooR asseMBly (all Models)
Ref.
No. Product
Code Drawing No.
(if different)
Description
1 SM29 M0508PHS M5 X 8 PAN HEAD SCREW
2 4670H Ø14 ROPE SEAL (BLACK)
3 YC00353 STANDARD GLASS CLIP
4 GL0253 GL0253 TWIN DOOR GLASS
5 YM-YM05001 YM05001 RIGHT HAND DOOR CROSS
6 YB00030 M18 DOOR CAM
7 YM-F00004 YF00004 SPIROL PIN Ø3 X 18 LG
8 YM-A9905 YC00228 RIGHT HAND MULTI-FUEL DOOR KNOB
9 YM-YM05907 YM05907 RIGHT HAND DOOR
10 N/A N/A NOT REQUIRED
11 YA00057 PRIMARY AIR SLIDER ASSEMBLY
12 YB00258 AIR SLIDER SPACER
13 YF00075 M6 X 25 PENNY WASHER
14 YB00158 SPRING AIR SLIDER KNOB
15 YM-F00258 YF00258 AIR SLIDER SPRING
16 N/A N/A NOT REQUIRED
17 YF00106 HINGE PIN
18 YM-YM05908 YM05908 LEFT HAND DOOR CASTING
19 YM-A9904 YC00128 LEFT HAND MULTI-FUEL DOOR KNOB
20 M6 X 30 HEX HEAD SET SCREW
21 YM-YM05101 YM05101 LEFT HAND TWIN DOOR CROSS
Ref.
No. Product
Code Drawing No.
(if different)
Description
1 SM29 M0508PHS M5 X 8 PAN HEAD SCREW
2 4670H Ø14 ROPE SEAL (BLACK)
3 YC00353 STANDARD GLASS CLIP
4 GL0251 TWIN DOOR GLASS
5 YM-YM81001 YM81001 RIGHT HAND DOOR CROSS
6 YB00030 M18 DOOR CAM
7 YM-F00004 YF00004 SPIROL PIN Ø3 X 18 LG
8 YM-A9905 YC00228 RIGHT HAND MULTI-FUEL DOOR KNOB
9 YM-YM81907 YM81907 RIGHT HAND DOOR
10 N/A N/A NOT REQUIRED
11 YA82057 PRIMARY AIR SLIDER ASSEMBLY
12 YB00258 AIR SLIDER SPACER
13 YF00075 M6 X 25 PENNY WASHER
14 YB00158 SPRING AIR SLIDER KNOB
15 YM-F00258 YF00258 AIR SLIDER SPRING
16 N/A N/A NOT REQUIRED
17 YF00106 HINGE PIN
18 YM-YM81908 YM81908 LEFT HAND DOOR CASTING
19 YM-A9904 YC00128 LEFT HAND MULTI-FUEL DOOR KNOB
20 M6 X 30 HEX HEAD SET SCREW
21 YM-YM81101 YM81101 LEFT HAND TWIN DOOR CROSS
Ref.
No. Product
Code Drawing No.
(if different)
Description
1 SM29 M0508PHS M5 X 8 PAN HEAD SCREW
2 4670H Ø14 ROPE SEAL (BLACK)
3 YC00353 STANDARD GLASS CLIP
4 GL0261 TWIN DOOR GLASS
5 YM-YM99001 YM99001 RIGHT HAND DOOR CROSS
6 YB00030 M18 DOOR CAM
7 YM-F00004 YF00004 SPIROL PIN Ø3 X 18 LG
8 YM-A9905 YC00228 RIGHT HAND MULTI-FUEL DOOR KNOB
9 YM-YM99907 YM99907 RIGHT HAND DOOR
10 N/A N/A NOT REQUIRED
11 YA00057 PRIMARY AIR SLIDER ASSEMBLY
12 YB00258 AIR SLIDER SPACER
13 YF00075 M6 X 25 PENNY WASHER
14 YB00158 SPRING AIR SLIDER KNOB
15 YM-F00258 YF00258 AIR SLIDER SPRING
16 N/A N/A NOT REQUIRED
17 YF00106 HINGE PIN
18 YM-YM99908 YM99908 LEFT HAND DOOR CASTING
19 YM-A9904 YC00128 LEFT HAND MULTI-FUEL DOOR KNOB
20 M6 X 30 HEX HEAD SET SCREW
21 YM-YM99101 YM99101 LEFT HAND TWIN DOOR CROSS
devon 50 county 80
county 60
