Yeoman DEVON 50 - Manual (Page 24)

24
InstallatIon InstRuctIons
2. ReMoval oF tHe loG GuaRd
2.1 To remove the Log guard:
—
Lift Log Guard clear of the supporting brackets.
—
Rotate to clear the sides of the door opening.
do not use appliance without the log guard in position.
3. FIttInG and ReMoval oF
tHe BaFFle
No tools are required.

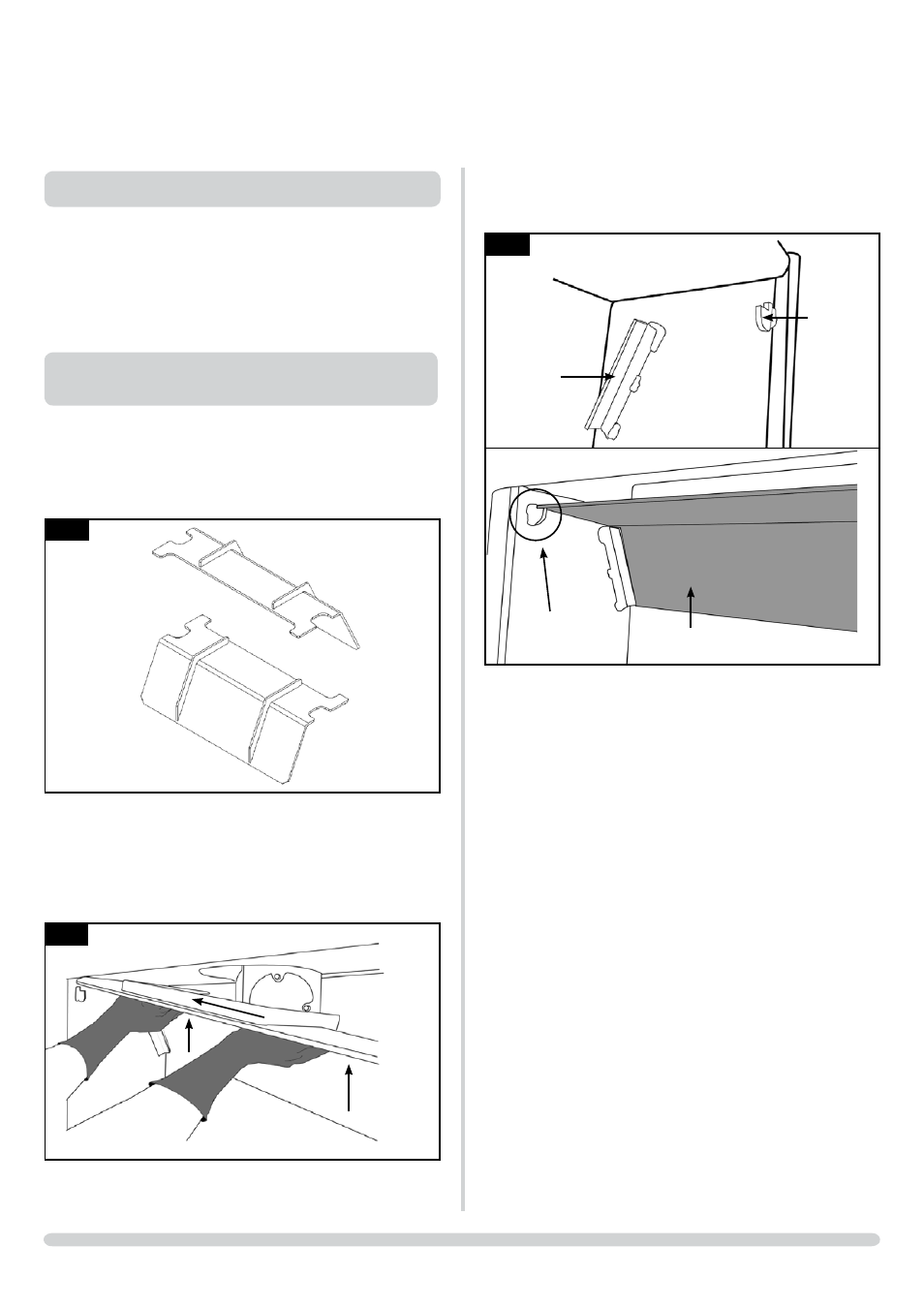

3.1 To maintain efficient combustion the appliance is fitted with
a baffle system that allows for secondary combustion (see
Diagram 4).
4
PR8885
3.2 First remove the log guard from the stove to give access to
the firebox.
3.3 Use both hands to lift the baffle vertically and slide to one
side (see Diagram 5). Always wear gloves when handling
appliance parts.
5
AR2404
—
Using both hands rotate the baffle to remove from the
firebox through the door opening.
3.4 To replace the baffle repeat the above steps in reverse,
ensuring the baffle fits over the supports on the sides of the
interior (see Diagram 6).
6
Rear
support
Front
support
Baffle In Place
AR2405
AR2406
Ensure baffle sits
on front supports
do not modify the baffle.
