9
PR8881 PR8880
Front plate
Ashpan
—

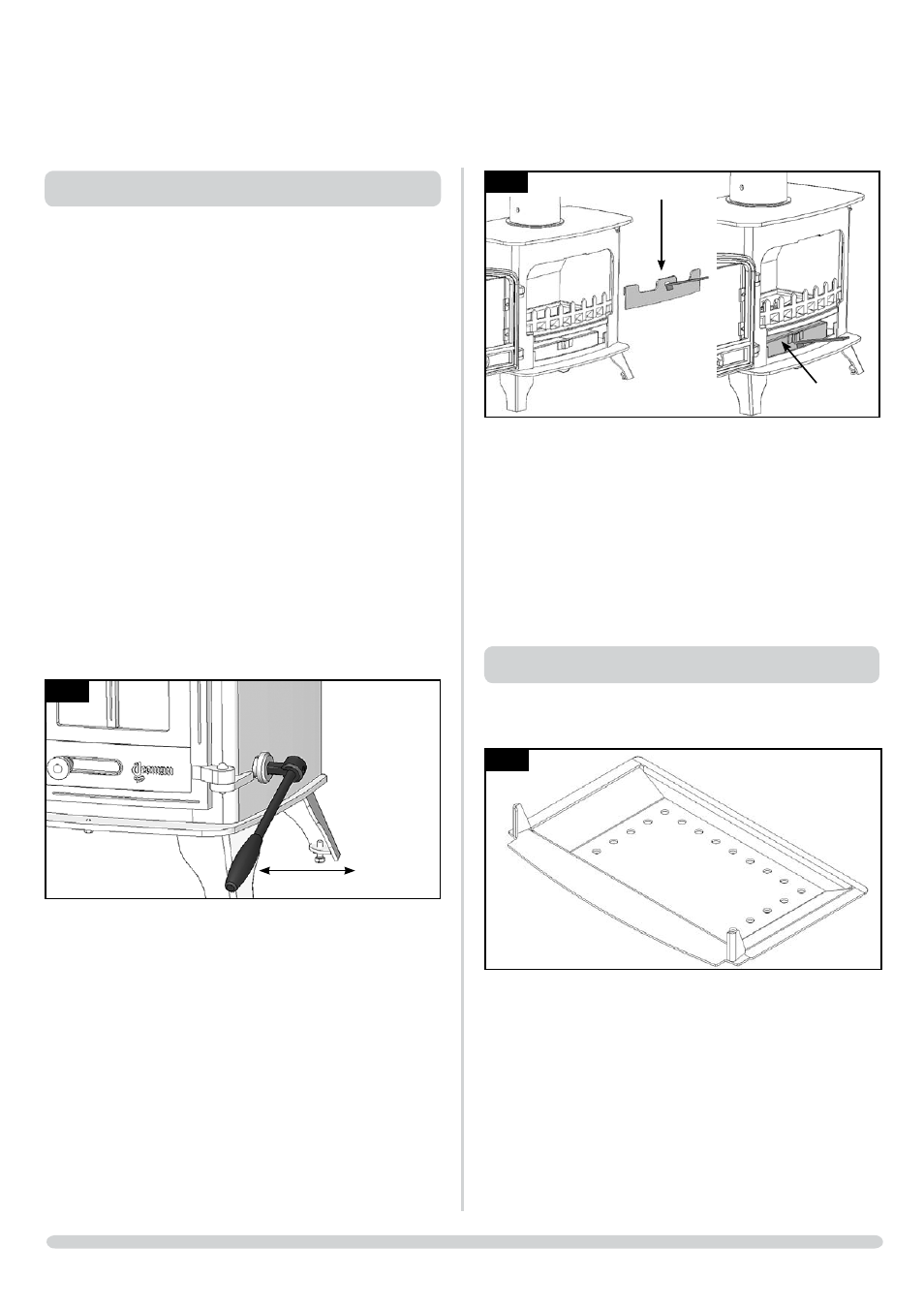

Using gloves, carefully remove ashpan (see Diagram 9).
—
Place the ash into a Stovax Ash Caddy (Stovax Part No.
4227) or other suitable container.
—
Check and remove ash as often as required when
burning solid fuel.
—
De-ash at least once a week.
—
Do not place hot ash in a container made from plastic or
any other combustible material.
8. Wood BuRnInG tRay
8.1 In order to burn wood continuously in this appliance a
Wood Burning Tray should be fitted (see Diagram 10).
10
PR8882
8.2 Remove the multi-fuel grate from the appliance (see
Installation Instructions, Section 4).
8.2 To fit the Wood Burning Tray:
—
Remove the log bar and ashlip,
—
Hold the tray flat with the front edge pointing forwards
(see Diagram 10).
—
Tilt diagonally and insert through the front of the stove
(see Diagram 11).
useR InstRuctIons
7. asH ReMoval
Warning: ash can remain hot long after appliance has
been in use.
7.1 Wood:
—
Open Doors (see Section 1.14)
—
Leave a layer of ash to start the new fire on. Wood burns
best on a bed of ash (approx. 25mm (1") deep).
—
Remove ash with a small shovel and place into
a Stovax Ash Caddy (Stovax Part No. 4227) or other
suitable container.
do not place hot ash in any container made from plastic
or any other combustible material.
—
De-ash at least once a week.
7.2 Multi-fuel:
De-ash the appliance before filling with new fuel. Do not
allow ash to build up on the underside of the grate as this
can cause premature failure.
—
Insert the Riddling Tool into the socket as shown in
Diagram 8.
8
PR8874
Push/Pull to
operate
—
Rotate the Riddling Tool backward and forward
3 or 4 times to remove the ash. Do not force the handle
beyond its natural stop point. The ash will fall into the
ashpan.
—
Open doors.
Warning: ash can remain hot long after appliance has
been in use.
—
Remove front plate (see Diagram 9).
