9. See Figure 37. Tilt the cartridge in toward the
printer and aline the green label and arrow at the
left end of the fuser oil cartridge with the green
label on the housing.
10. Slide the cartridge straight down.
11. Rotate the cartridge down until it snaps into place.
12. See Figure 38. Close the lower left side unit.
9
10
11

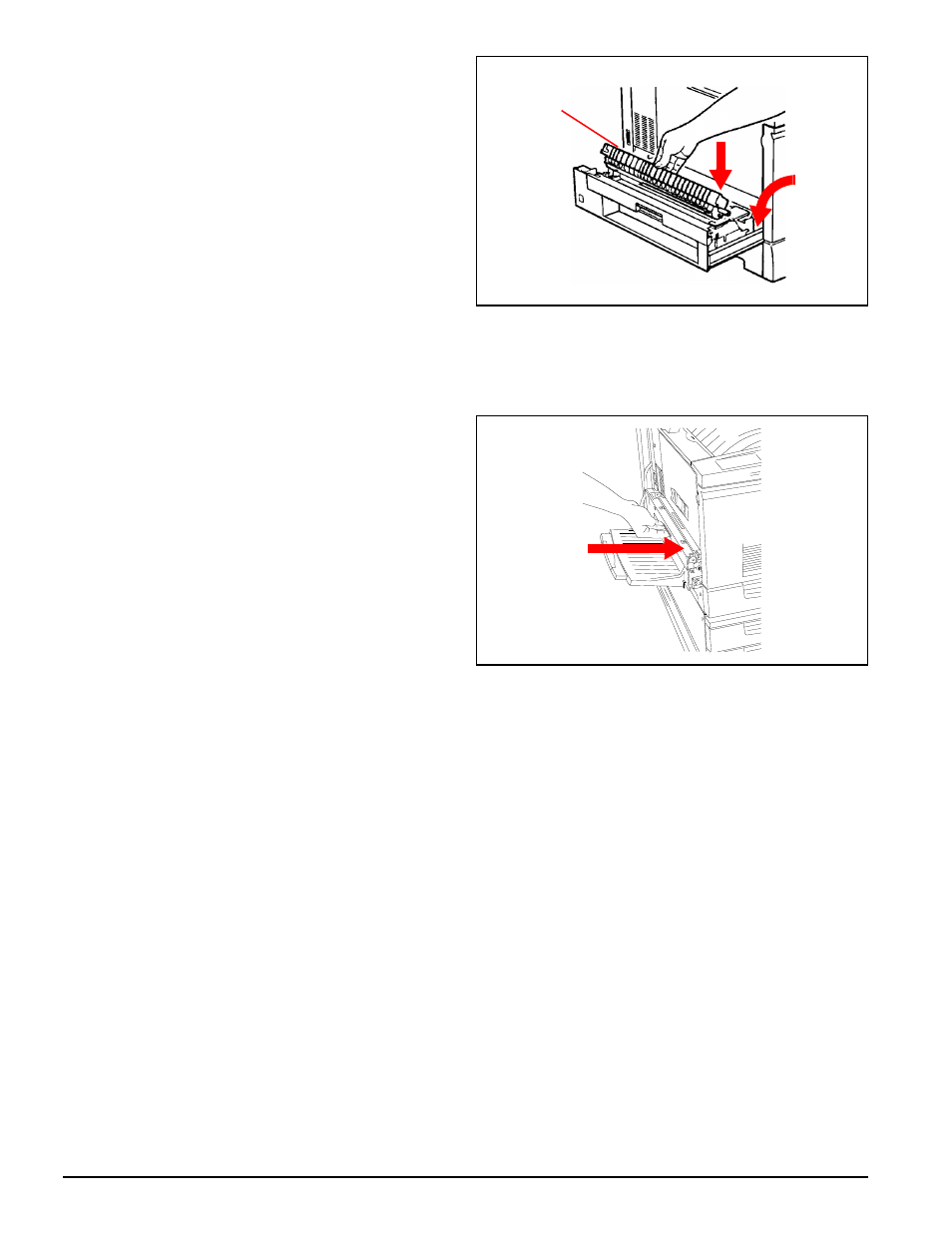

Figure 37
12
Figure 38
