Getting to Know Your Product
8 QuickStart Practice Guide

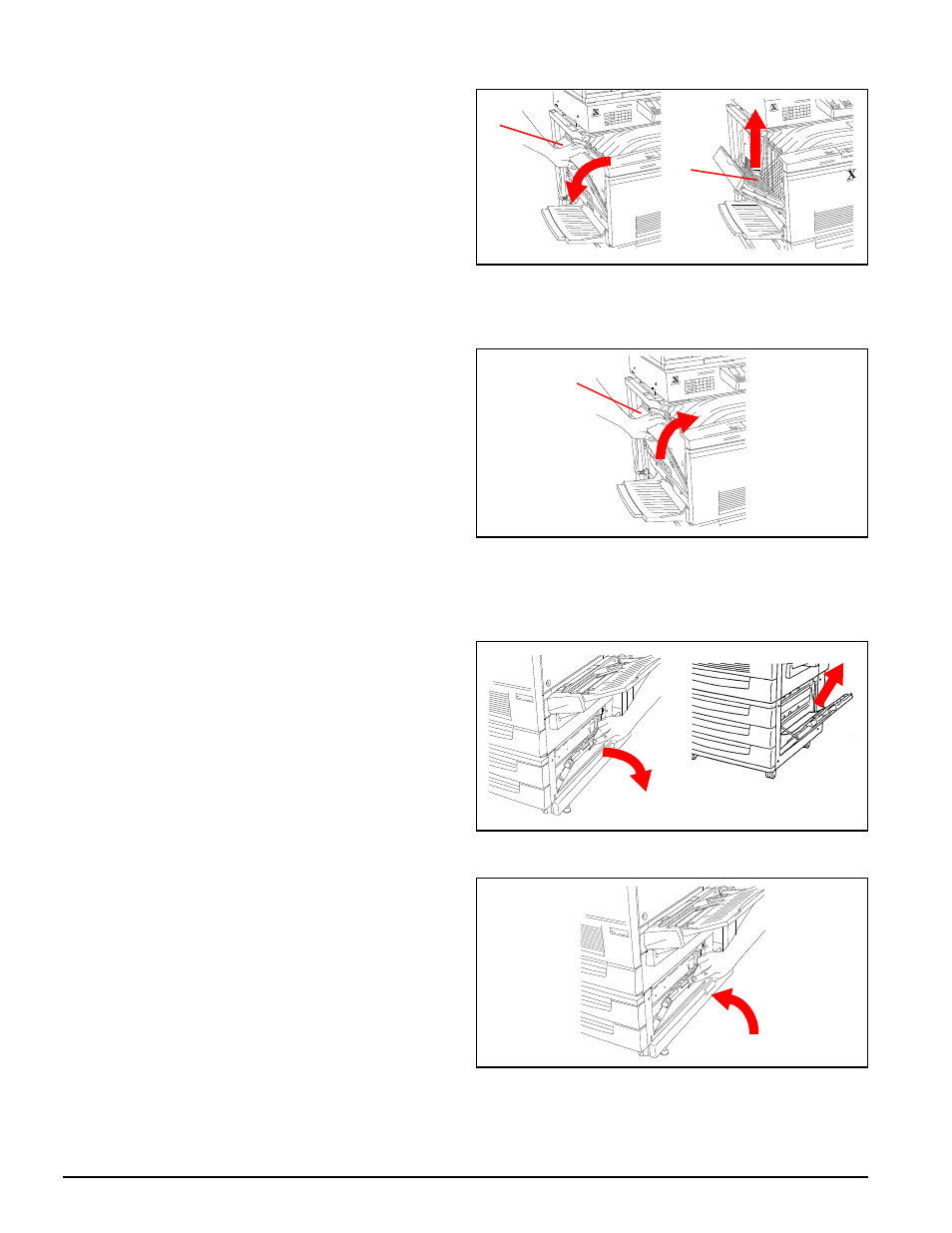

Clearing a jam in the left side
Demonstrate how to open the top left cover and
remove a paper jam.
1. See Figure 18. Open the top left cover by pull-
ing the top to the left.
2. Remove the jammed paper. Be sure no torn
pieces of paper remain inside the copier/printer.
3. See Figure 19. Close the top left cover.
Clearing a jam in the two tray module
Show how to clear a jam in the two tray module.
1. See Figure 20. Open the right cover of the two
tray module.
2. Remove the jammed paper. Be sure no pieces of
torn paper remain inside the copier/printer.
3. See Figure 21. Close the right cover of the 2-tray
module.
2
1
Figure 18
3
Figure 19
2
1
Figure 20
3
Figure 21
