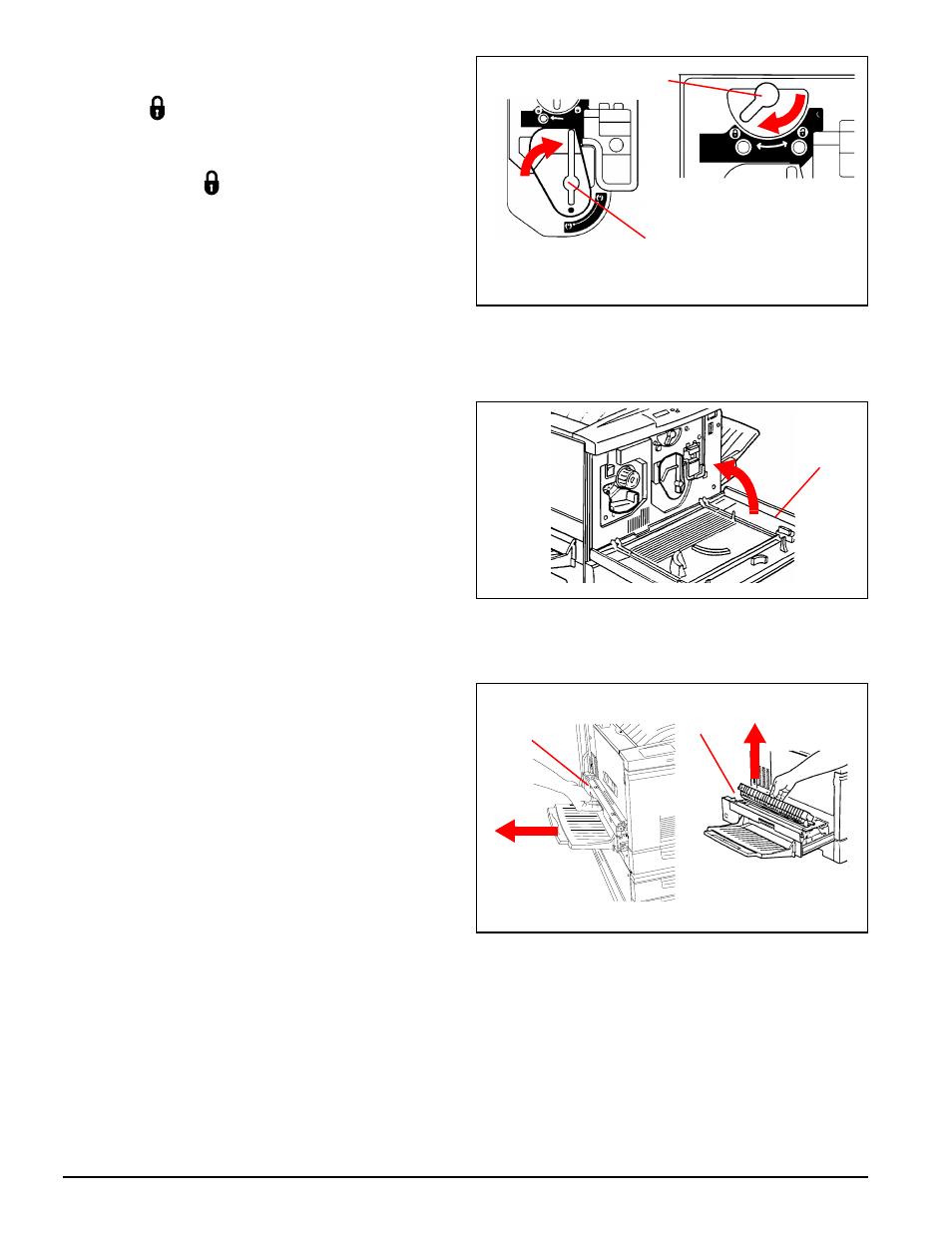

7. See Figure 31. Turn the peach colored lever “B”
clockwise until the lever aligns with the locked
symbol ( ) on the copier/printer.
8. Turn the peach colored cover “A” clockwise
until the “l” mark on the cover aligns with the
locked symbol ( ) on the copier/printer.
9. See Figure 32. Close the front cover of the copier/
printer.
Replacing the fuser oil roll cartridge
Show how to remove and replace the fuser oil roll
cartridge.
1. See Figure 33. Pull out the lower left side unit as
far as it will go.
2. Place two pieces of paper on a flat surface to set
the oil roll cartridge on when you remove it.
3. Remove the used fuser oil roll cartridge and set
it aside.
8
7
Cover “A”
Lever “B”
Figure 31
9
Figure 32
1
3
Figure 33
