Xerox 92C User Manual
Page 54
Printer components and options
3-18
System Overview Guide

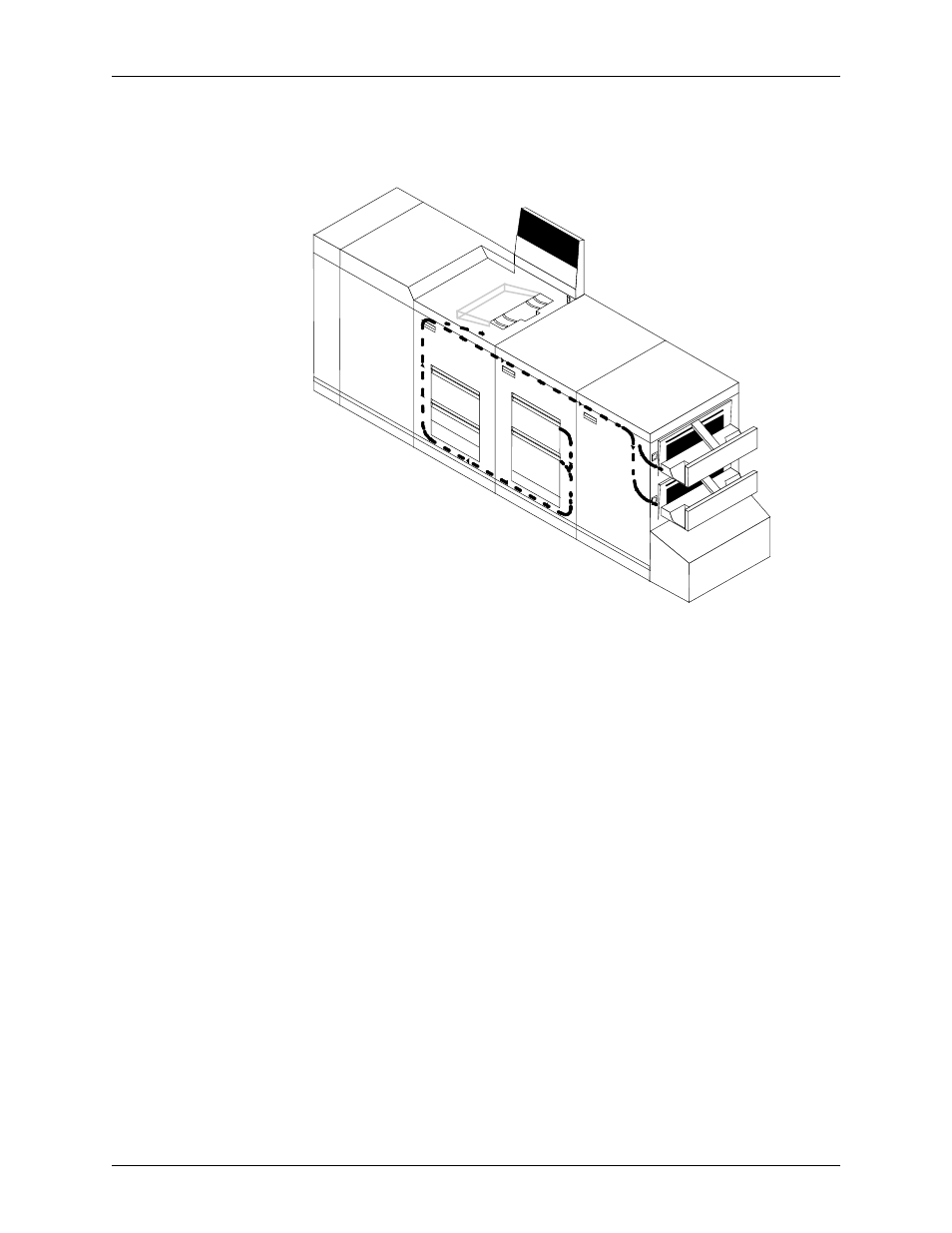

The following figure illustrates the simplex paper path of a printer
with the high-capacity feeder.
Figure 3-13. Simplex paper path (printer with high-capacity
feeder)
If you have the stitcher/stacker option, the paper path is the
same, except there is only one tray for the output (other than the
sample tray).
