When the light glows steadily, act soon to avoid a cycle-down.
A steady glow typically indicates that paper or dry ink is low.
Message display
Printer status and simple operating and maintenance
instructions are shown in a two-line message. One of the
following icons indicates the printer mode:
Also in the lower panel, the dry ink color currently loaded is
shown.
Graphic display
The graphic display shows a specific area of the printer requiring
attention. The graphics help you locate the problem.

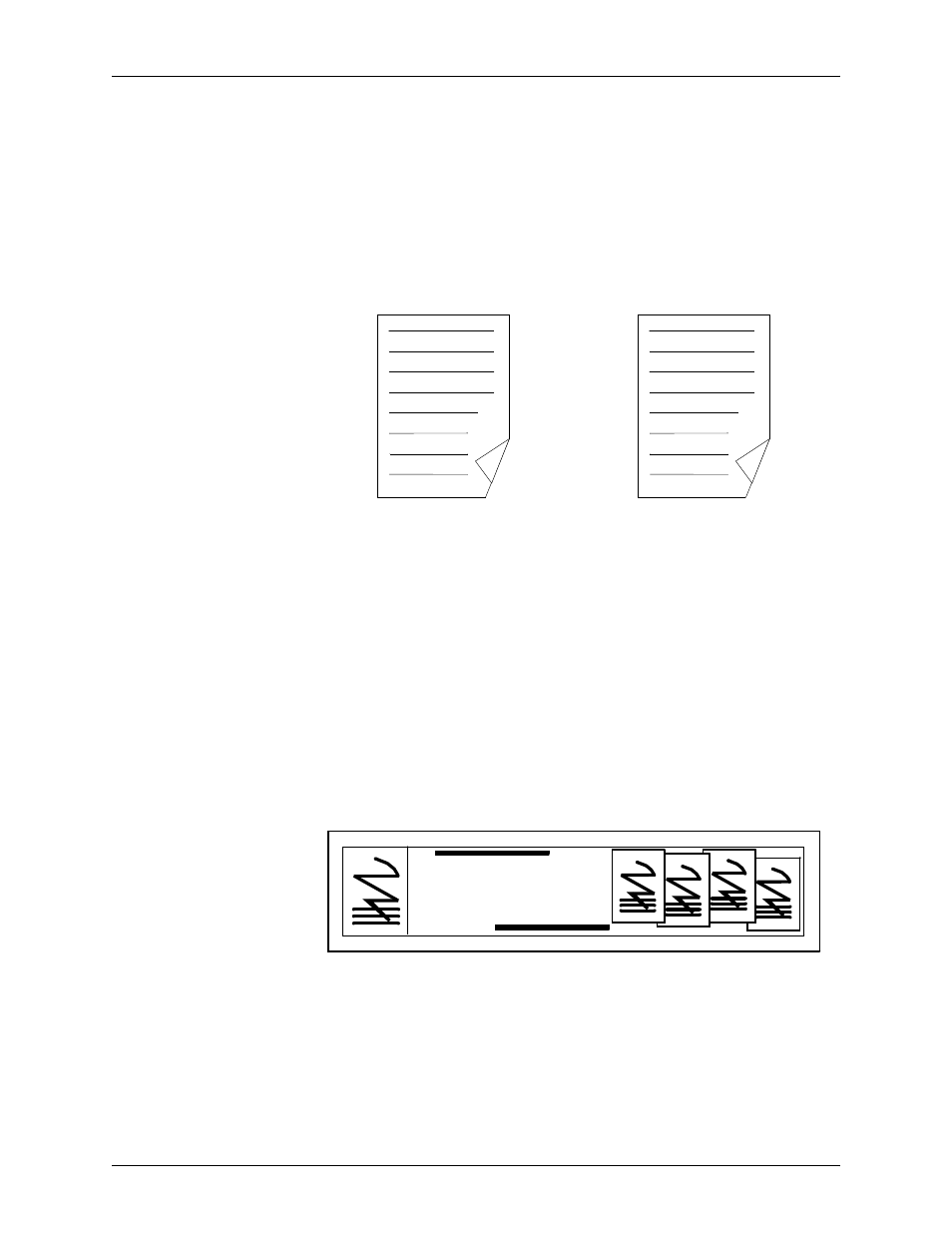

Icon display
The icon display is located in a rectangle below the graphic
display. The printer mode is indicated by the words that are
lighted--Black or Highlight (color). The printer indicates the color
of ink loaded in the printer by lighting one of the icons on the
right (red, blue, green, or “other”).
Wire percentage
indicator
If your printer has a stitcher/stacker, it displays the percentage of
stitcher wire remaining on the spool.
Feeder tray
indicators
These lights indicate the selected feeder tray or trays and the
size of paper loaded in each tray.
Printer Mode
Black
Highlight
Black
Printer Mode
Highlight
