Chapter2—Parts and their functions
46
— Operation Guide

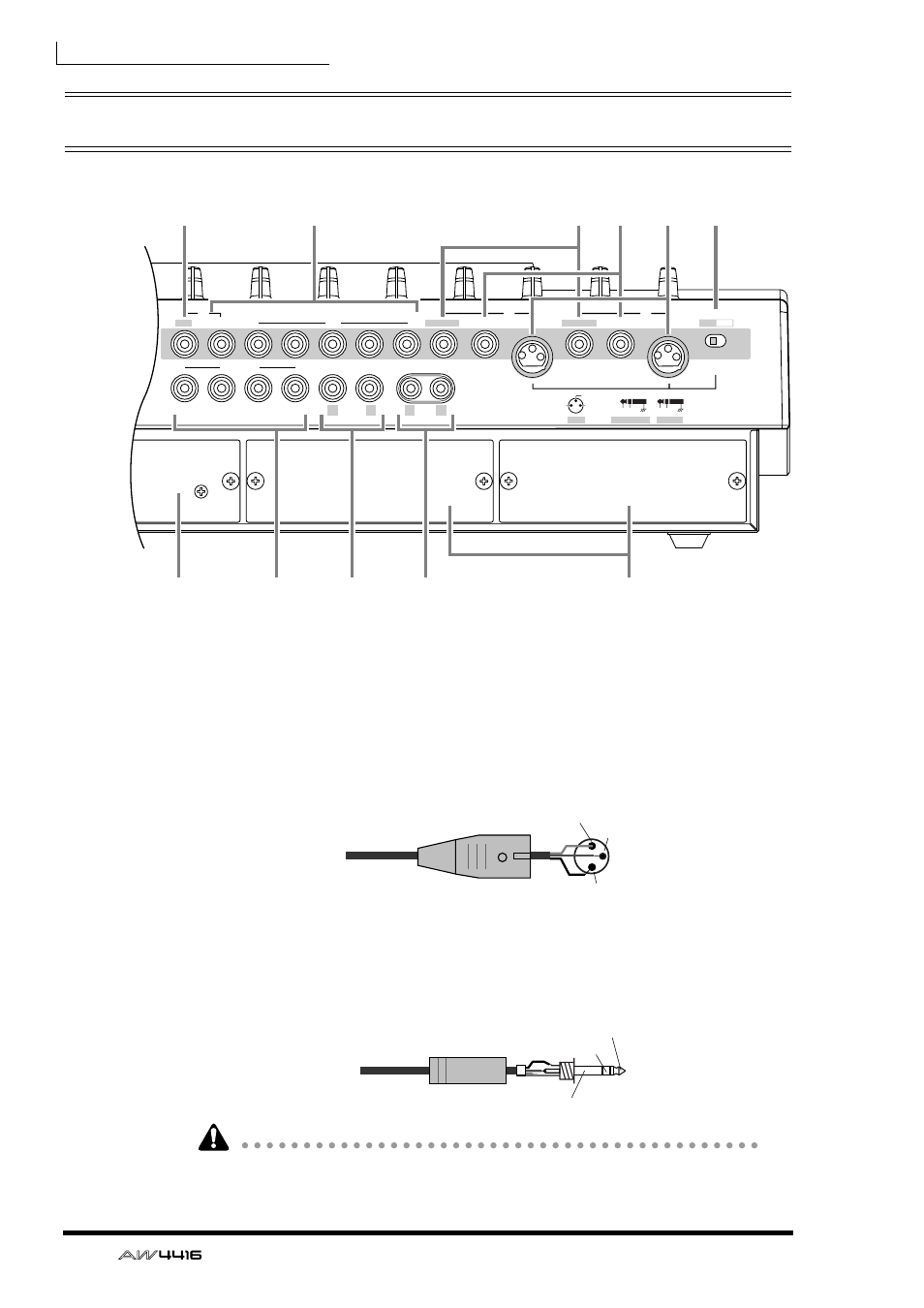

Rear panel
1
[PHANTOM +48V ON/OFF] switch
This switch supplies +48 V phantom power to the INPUT (XLR) 1/2 jacks.
B
INPUT 1/2 (XLR) jacks
These are balanced XLR-3-31 type input jacks. Nominal input level is –46 dB–
+4 dB. Pin connections are as follows.
C
INPUT 1/2 (phone) jacks
These are balanced TRS phone type input jacks. Nominal input level is –46 dB–
+4 dB. Pin connections are as follows.
If plugs are inserted into both the XLR jack for INPUT 1/2 and the phone jack, the
phone jack will take priority.
BAL
BAL
4
3
2
1
MONITOR OUT
BAL (+4dB)
UNBAL ( 0dB )
UNBAL (–10dBV)
STEREO OUT
OMNI OUT
8
7
6
5
4
3
2
1
BAL
BAL
INSERT I/O
BAL
BAL
HI-Z
INSERT I/O
OUT IN
HOT COLD
INSERT
BAL PHONE
XLR
3:COLD
1:GND
2:HOT
PHANTOM +48V
ON OFF
R
L
L
R
1
7
6
8
J
9
K
5
4
3
2
Male XLR connector
1 (ground)
3 (cold)
2 (hot)
1/4" TRS phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
