P-660R-Tx v2 Series User’s Guide
46
Chapter 3 Wizard Setup
The following table describes the labels in this screen.

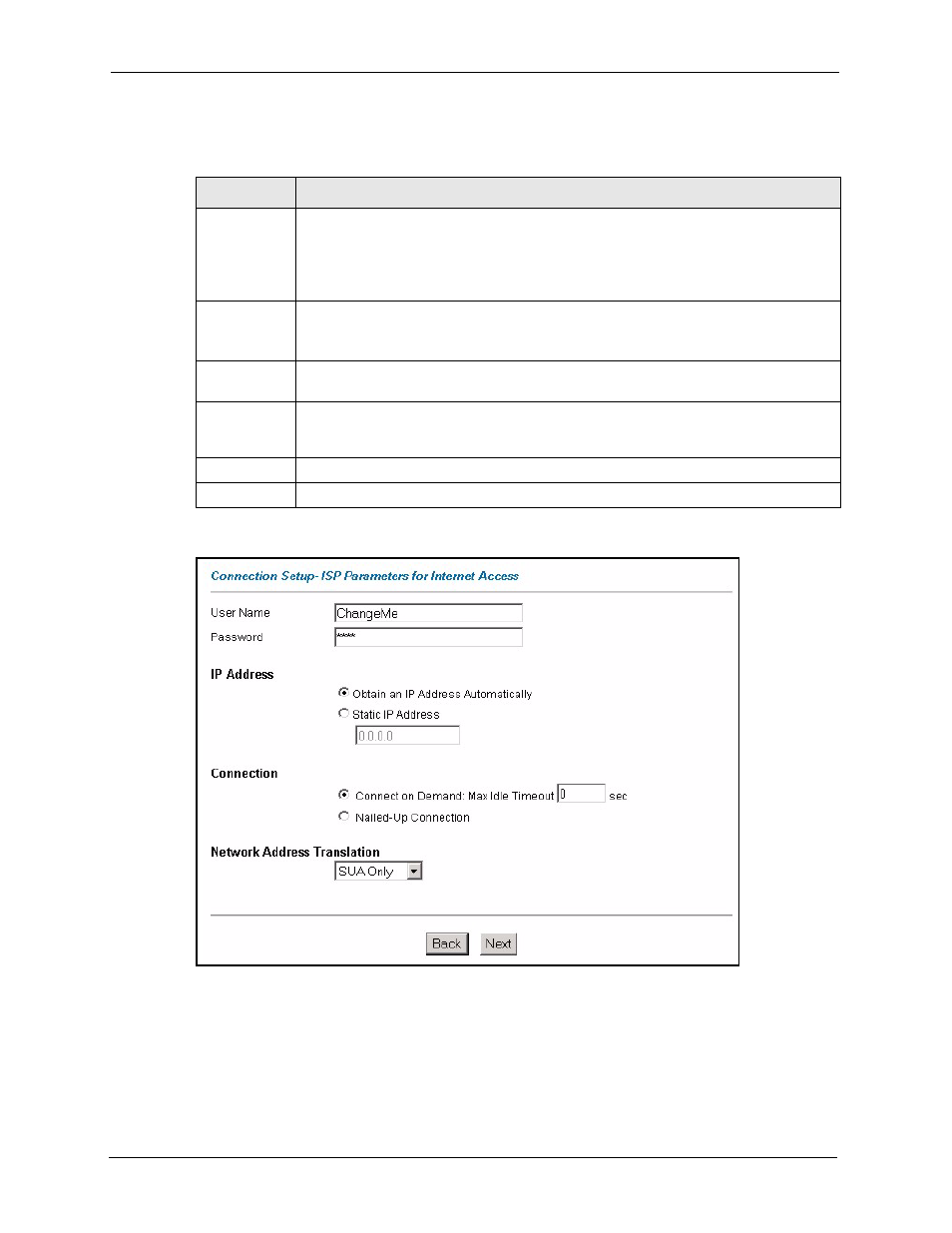

Figure 10 Internet Connection with PPPoA
Table 7 Internet Connection with ENET ENCAP
LABEL
DESCRIPTION
IP Address
A static IP address is a fixed IP that your ISP gives you. A dynamic IP address is not
fixed; the ISP assigns you a different one each time you connect to the Internet.
Select Obtain an IP Address Automatically if you have a dynamic IP address;
otherwise select Static IP Address and type your ISP assigned IP address in the IP
Address text box below.
Subnet Mask
Enter a subnet mask in dotted decimal notation.
Refer to
to calculate a subnet mask If you are implementing
subnetting.
ENET ENCAP
Gateway
You must specify a gateway IP address (supplied by your ISP) when you use ENET
ENCAP in the Encapsulation field in the previous screen.
Network
Address
Translation
Select None, SUA Only or Full Feature from the drop-sown list box. Refer to the NAT
chapter for more details.
Back
Click Back to go back to the first wizard screen.
Next
Click Next to continue to the next wizard screen.
