Johnson Controls Unitary Products

Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.

FRONT

33

A

LEFT SIDE

Combustion Air Inlet

Condensate Drain
(Downflow)

Vent Outlet

Thermostat
Wiring

28.5”

Gas Pipe
Entry

Electrical
Entry

Condensate
Drain

Thermostat
Wiring

RIGHT SIDE

Vent Outlet

Condensate Drain
(Downflow)

14”

1”

1.5”

23”

Combustion Air Inlet

Gas Pipe
Entry

Electrical
Entry

Condensate
Drain

Optional Return Air
Cutout (Either side)

29.5”

C

SUPPLY END

.56”

.56”

20”

B

3”

23.8”

.56”

Combustion
Air Inlet

Vent
Outlet

RETURN END

B

24.25”

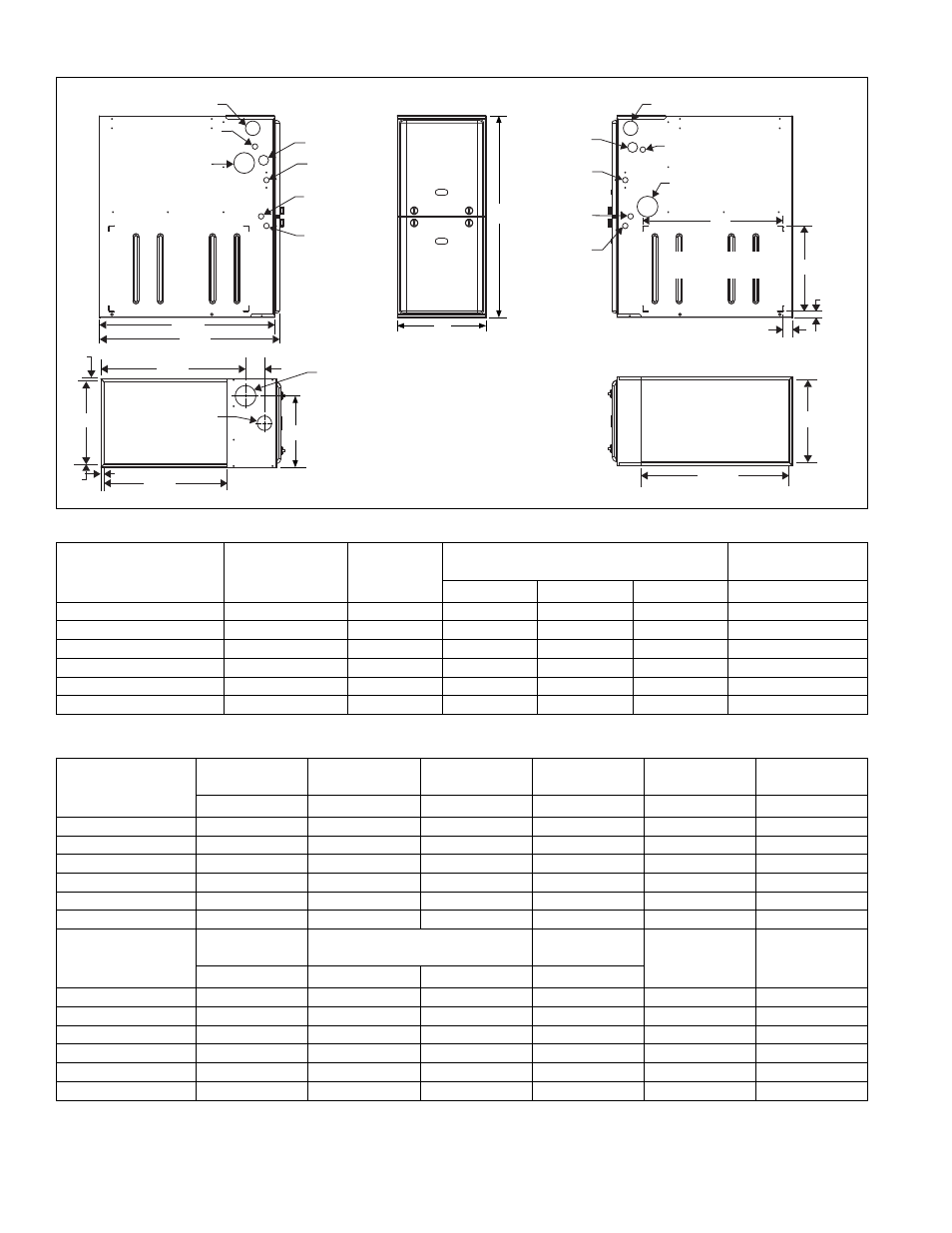

Cabinet & Duct Dimensions

Model

Nominal

CFM (m

3

/min)

Cabinet

Size

Cabinet Dimensions (Inches)

Approximate

Operating Weights

A

B

C

Lbs

TM9V060B12MP11

1200

B

17 1/2

16 3/8

13 1/4

122

TM9V080B12MP11

1200

B

17 1/2

16 3/8

13 1/4

126

TM9V080C16MP11

1600

C

21

19 7/8

16 1/2

136

TM9V100C16MP11

1600

C

21

19 7/8

18 1/4

142

TM9V100C20MP11

2000

C

21

19 7/8

18 1/4

145

TM9V120D20MP11

2000

D

24 1/2

23 3/8

21 3/4

156

Ratings & Physical / Electrical Data

Model

Input

High/Low

Output

High/Low

Total

Unit

AFUE

High Fire

Air Temp. Rise

Low Fire

Air Temp. Rise

MBH

MBH Amps %

°F

°F

TM9V060B12MP11

60/39

58/37

9

96

35 - 65

35 - 65

TM9V080B12MP11

80/52

77/50

9

96

35 - 65

30 - 60

TM9V080C16MP11

80/52

77/50

12

96

35 - 65

35 - 65

TM9V100C16MP11

100/65

96/62

12

96

35 - 65

30 - 65

TM9V100C20MP11

100/65

96/62

14

96

35 - 65

35 - 65

TM9V120D20MP11

120/78

115/75

14

96

35 - 65

35 - 65

Model

Max. Outlet

Air Temp.

Blower Blower

Size

Max.

Over-current

Protect

Min. Wire Size

(awg) @ 75 ft.

One Way

°F HP

Amps

In.

TM9V060B12MP11

170

1/2

7

11 x 8

15

14

TM9V080B12MP11

175

1/2

7

11 x 8

15

14

TM9V080C16MP11

175

3/4

10.2

11 x 10

15

14

TM9V100C16MP11

175

3/4

10.2

11 x 10

15

14

TM9V100C20MP11

175

1

12.7

11 x 11

20

12

TM9V120D20MP11

170

1

12.7

11 x 11

20

12
