ES-3100 Series Switch Support Notes


All contents copyright (c) 2006 ZyXEL Communications Corporation.

64

Scenario of MVR

In the following section, we will provide an example to illustrate how to
configure MVR. In this scenario, the media stream from the media servers will
be transmitted from port 24 of GS-4024 (as an IGMP Router) to ES-3124 (L2
edge Switch) and GS-4012F.(work as L2 edge Switch). On Switch ES-3124
and GS4012F, we enabled the MVR function to allocate the multicast traffic
from GS-4024 to separate VLAN hosts located on ES-3124 and GS-4012F.
Moreover, we created a dummy ip interface for the multicast VLAN (VLAN100)
on GS-4024. VLAN100 will be the Multicast VLAN in this scenario.

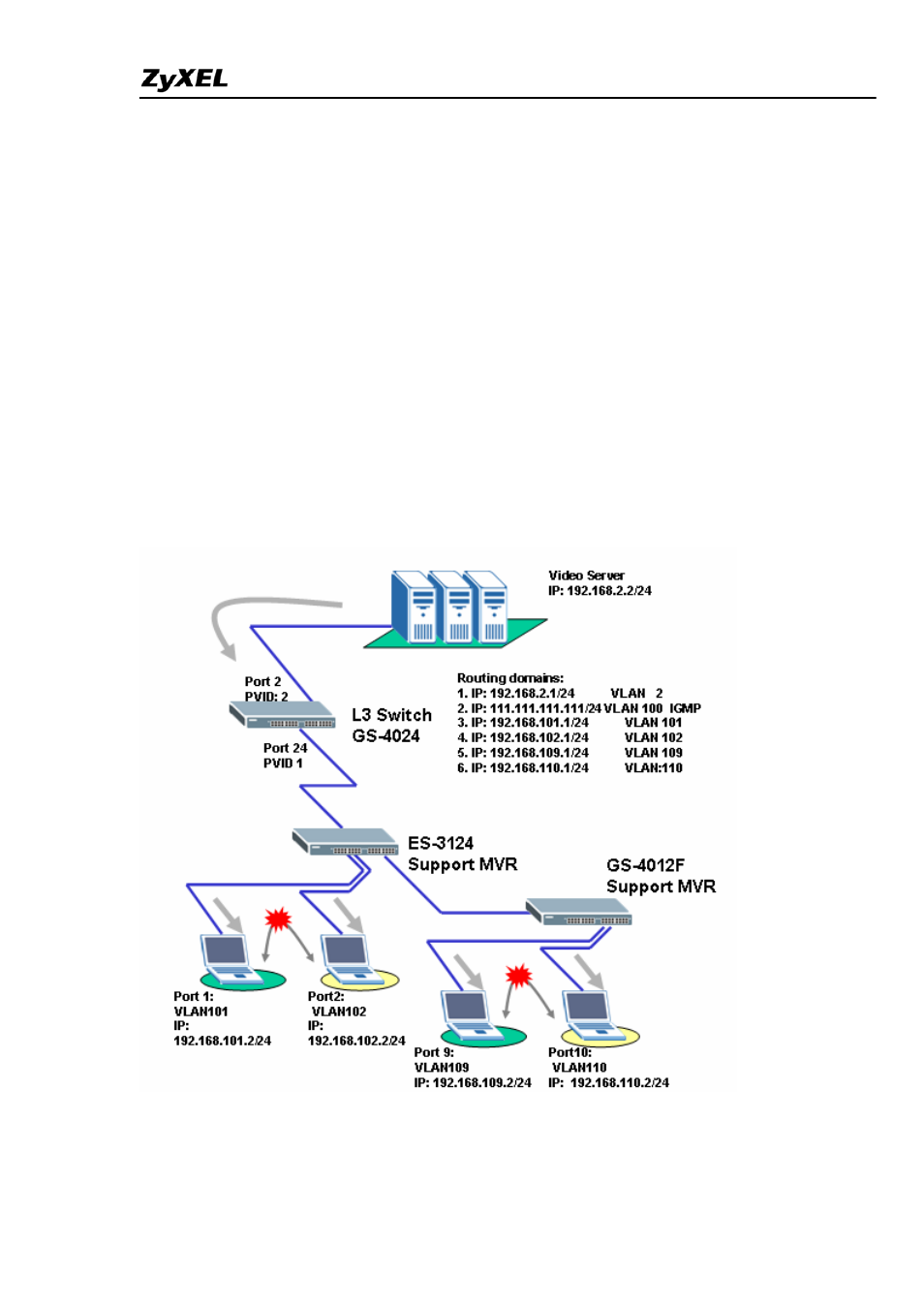

Illustration of this scenario
