ES-3100 Series Switch Support Notes


All contents copyright (c) 2006 ZyXEL Communications Corporation.

52

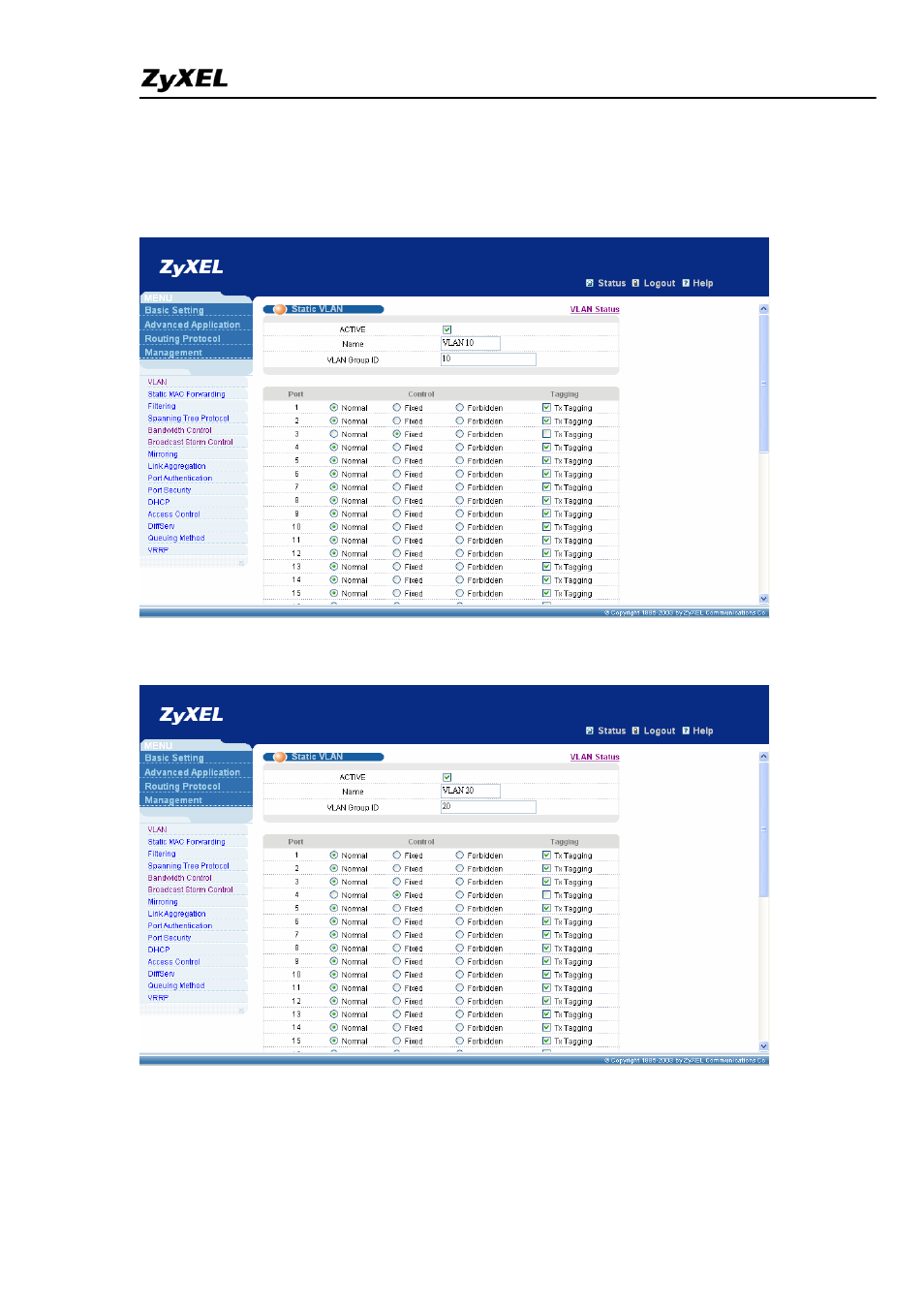

Please enter VLAN setting under Advanced Application menu and click “static
VLAN” to bring up the following screen, adding VLAN 10: port 3, fixed, untag;
port 23, fixed, Tx tagging”.

Add VLAN 20 to this switch, VLAN 20: port 4, fixed, untag; port 23, fixed, Tx
tagging.

Please click VLAN port setting to bring up the following screen, setup PVID 10
for port 3, PVID 20 for port 4, and enable GVRP on the top of the screen and
port 1, port 2, port 23.
