41

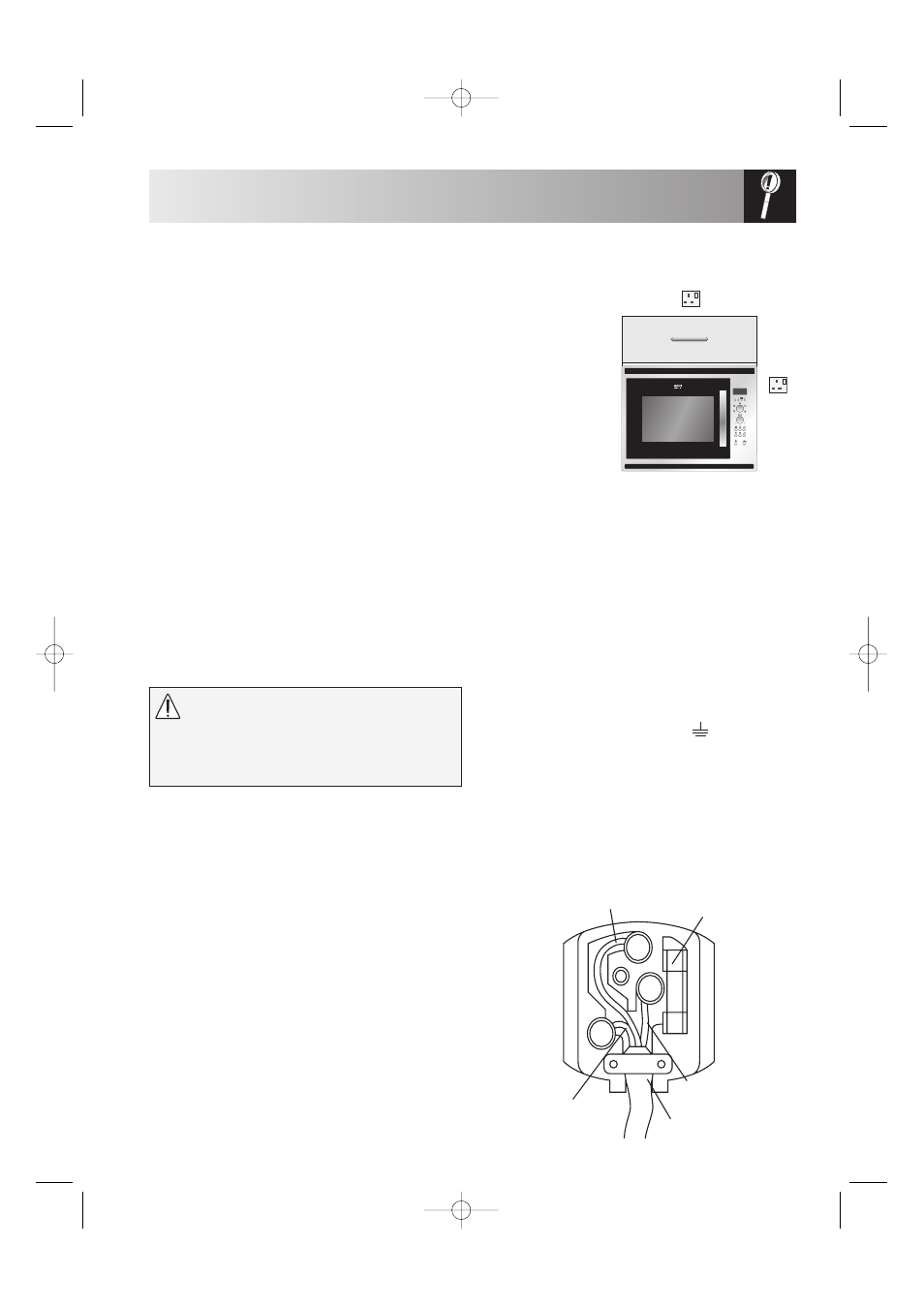

INSTALLATION
• The electrical outlet should be readily accessible so that the
unit can be unplugged easily in an emergency.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A).
If connection is to be made to position (A), remove the clip from position
15 on the rear of the oven (see page 5) and use the clip to secure the
power supply cord to the top of the housing unit (see page 40).
When not connecting the power supply cord to position (A), the power
supply cord should be routed under the oven.
• Connect the appliance to a single phase 230-240V/50Hz alternating
current via a correctly installed earth socket.
The socket must be fused with a 16A fuse.
• If the appliance is to be operated in a non-European country, the supply voltage,
current type and frequency of the appliance indicated on the rating plate must
correspond with the specification of your power supply. The rating plate can be found
on the inside face of the control panel.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when
the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
CONNECTING THE APPLIANCE TO THE POWER SUPPLY
ELECTRICAL CONNECTIONS
(A)
• If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off
and the appropriate plug fitted.
• Remove the fuse from the cut off plug. The cut off
plug should then be disposed of to prevent the
hazard of shocks in case it should be plugged
into a 13 Amp socket in another part of your
home.
IMPORTANT
The wires in the mains lead are coloured in
accordance with the following code:
GREEN AND YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
• Connect the green and yellow (earth) wire to the
terminal in the plug which is marked with the
letter ”E” or the earth symbol ( ) or coloured
green and yellow.
• Connect the blue (neutral) wire to the terminal in
the plug which is marked with the letter ”N” or
coloured black.
• Connect the brown (live) wire to the terminal in
the plug which is marked with the letter ”L” or
coloured red.
WARNING:
THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability
should this safety measure not be
observed.
13 AMP
GREEN & YELLOW
13 AMP FUSE
BROWN
CORD CLAMP
BLUE
