ZyXEL VES-1616/24FA-5x Series Support Notes
All contents copyright 2008 ZyXEL Communications Corporation. 98
Setting up 802.1x Radius Authentication.

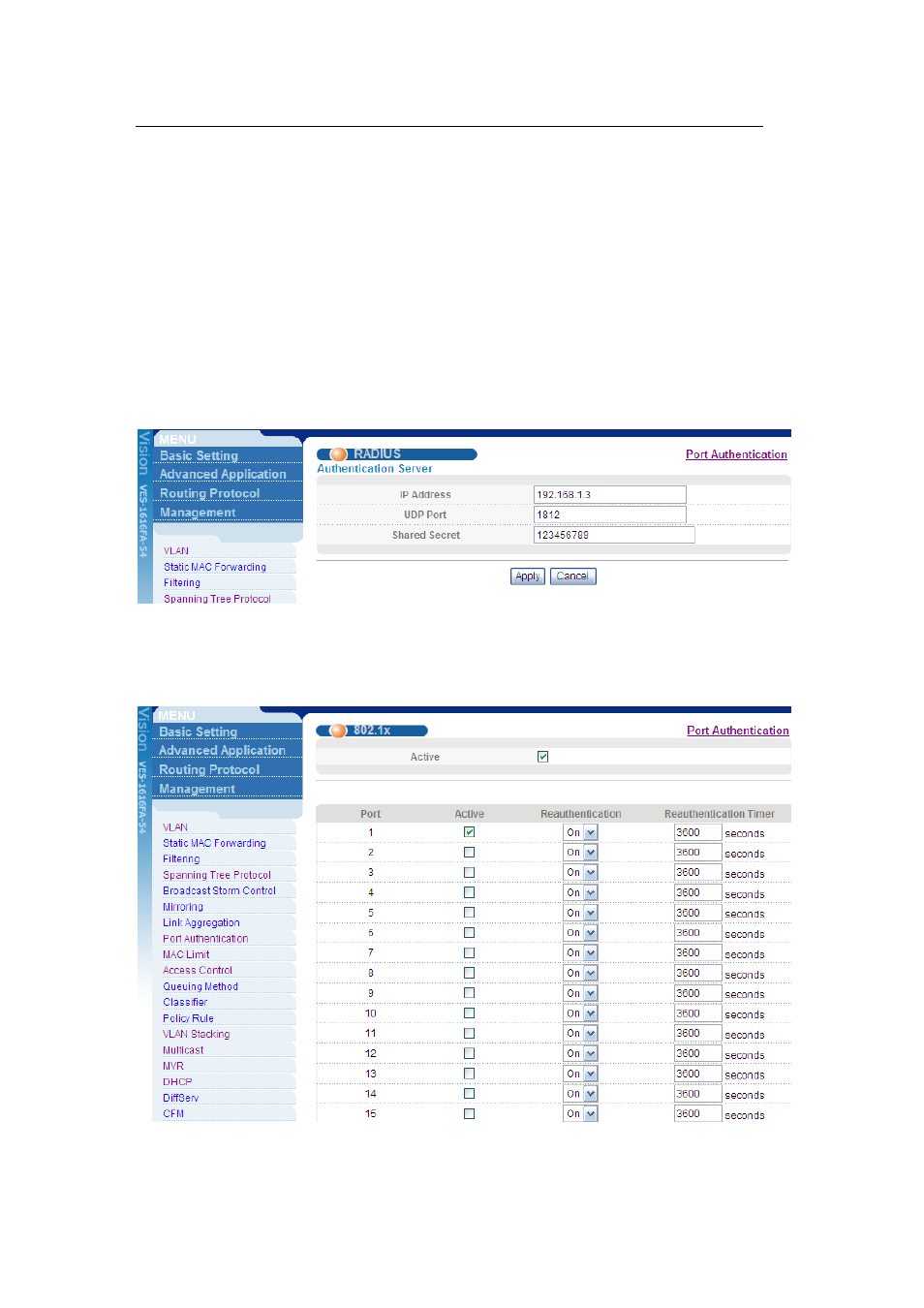

Port Authentication: RADIUS Setup
Click Advanced Application> Port Authentication in the navigation panel to
display the port Authentication page and click RADIUS link to display RADIUS
configuration screen as shown. Set the RADIUS server IP address, UDP port
and shared Secret. Make sure the information you have entered is the same as
the RADIUS server. Then click Apply to make the settings take effect.
Click the 802.1x link to display the 802.1x configuration screen. Select the Active
check box to enable and then select the Active for a port to enable 802.1x
authentications on that port. You can leave the other settings to the default values.
Click Apply to save your changes.
