ZyXEL VES-1616/24FA-5x Series Support Notes
All contents copyright 2008 ZyXEL Communications Corporation. 70
Configuration via Web
1. We need to create a VLAN for multicast traffic in GS-4024. In GS-4024, click
the Advanced Application and then select the VLAN. In the VLAN Configuration,
create a new VLAN 100.

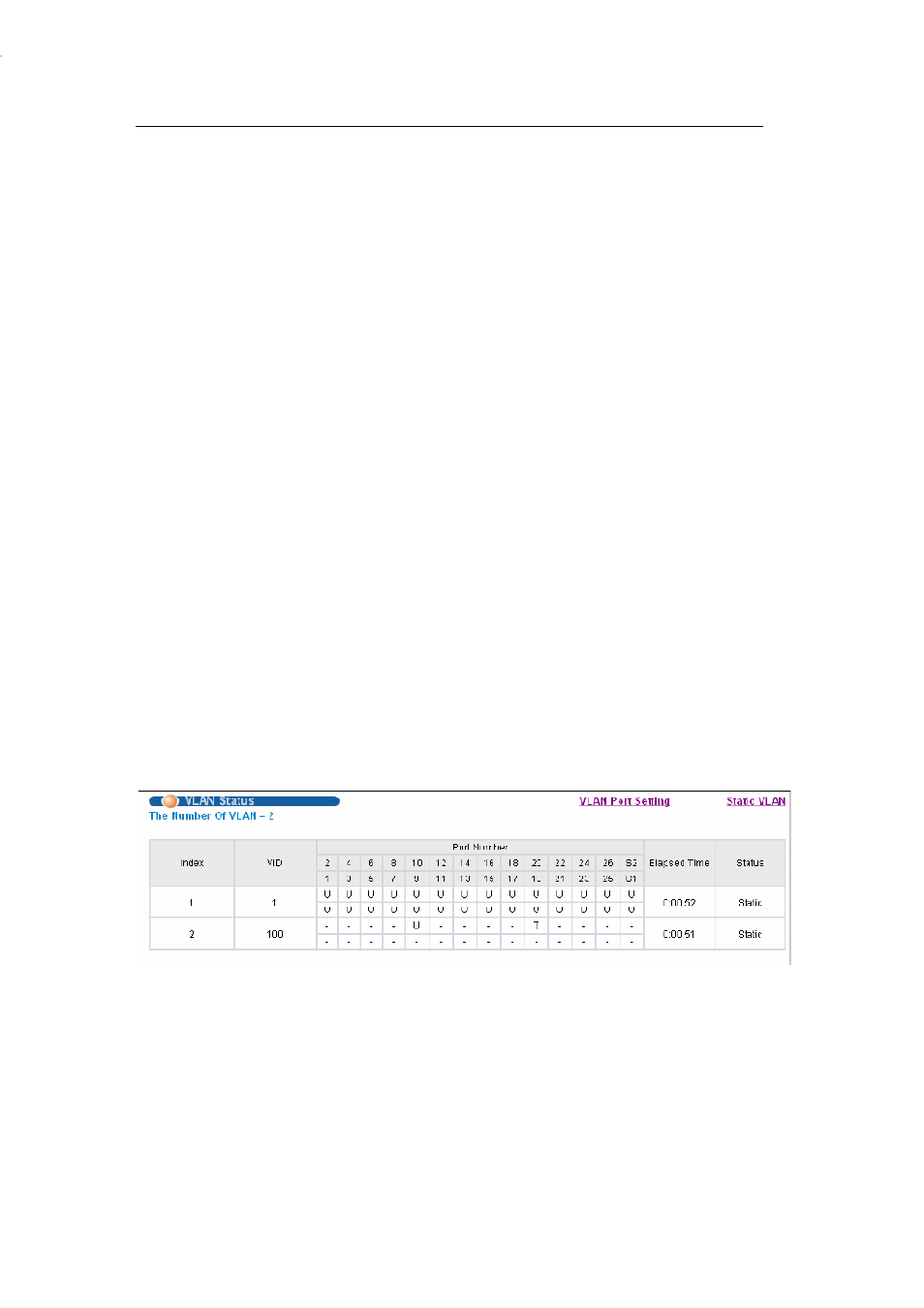

Figure 4 VLAN Configuration
2. In the GS-4024, click the Advanced Application and then select the VLAN. In
the VLAN port Setting, set the PVID of the port 10 to 100 as the multicast traffic
that flows from media server to port 10 must be tagged with PVID=100 to
communicate with the port in MVR VLAN 100 in VES-1616F-3X.
GS-4024
VES-1616F
VLAN 30
VLAN 40 VLAN 50
Port 1 Port 2
Port 3
Port 17
Port 20
Port 10
VLAN 100
Media Server
