4. In VES-1616FA-54, after the MVR configuration, click the Advanced
Application
, VLAN Status and check whether there is the new VLAN 100 added
in the VLAN list. We also create three separate VLANs, 30, 40, 50 and assign
their PVID as 30, 40 and 50 respectively.

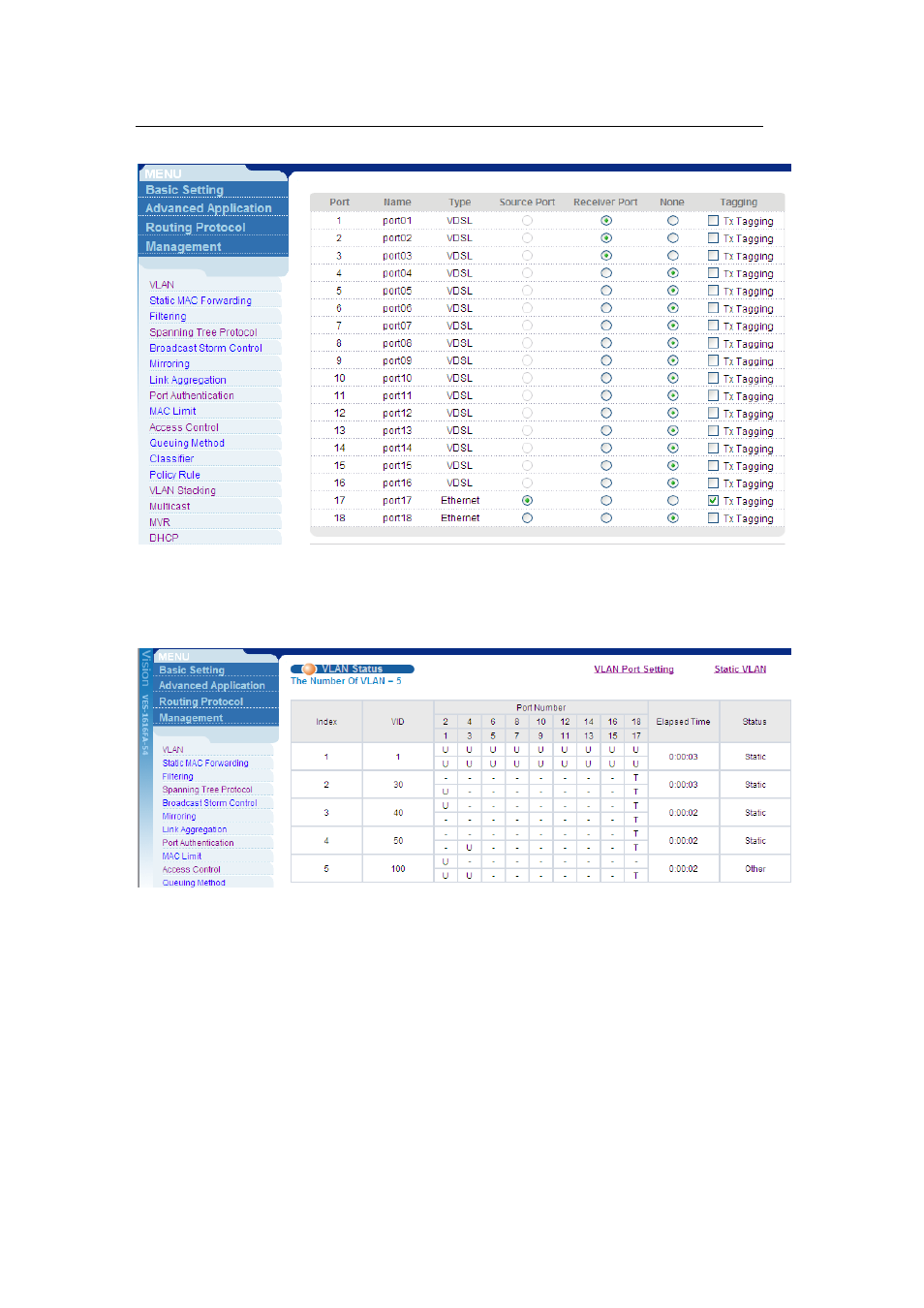

Open Advanced Application > VLAN > Static VLAN
to add a new VLAN. Tick
the Active box, type VLAN Name “30” and VLAN ID “30” in the columns. Change
Port 1 and Port 17 to fixed and keep port 17 tx tagging.
