Installing the Link 1000
13
Mounting the Link 1000 Control Panel
The Link 1000 control panel consists of a display panel and a
mounting plate.
To mount the control panel:
1. Separate the display panel and the mounting plate.

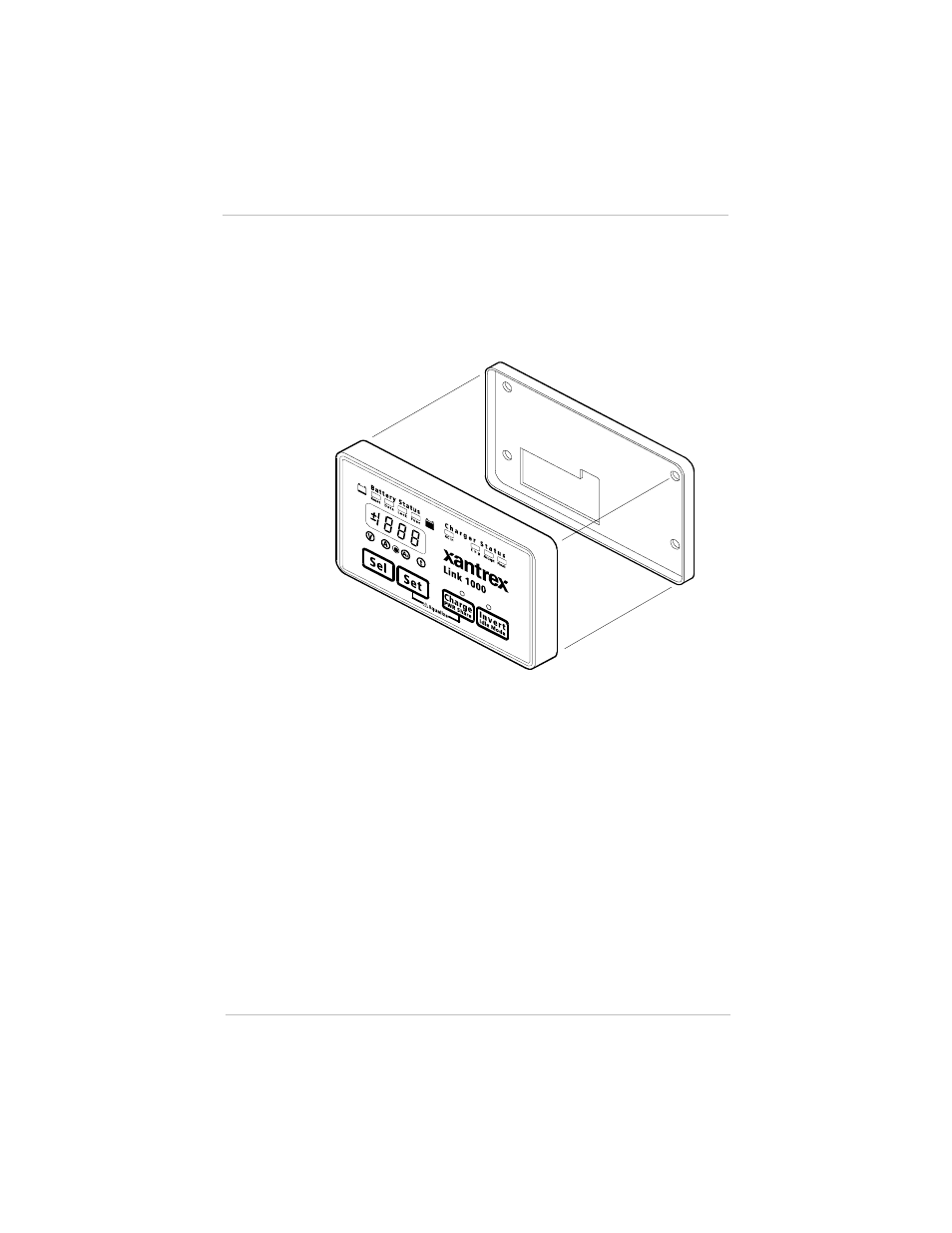

Figure 3 Display Panel and Mounting Plate
2. If you are going to run the phone cord and wires through
the opening in the rear of the mounting plate, make a
cutout in the mounting surface using the mounting plate
as a template. (You can also run the phone cord and wires
down from the bottom of the mounting plate.)
3. Screw the mounting plate to the mounting surface as
shown in Figure 4 .
Mounting Plate
Display Panel
