246695-YTG-C-0708
Johnson Controls Unitary Products 3
FEATURES
• High Efficiency – High efficiency units are rated at 11.35
EER. Gas/electric units have electronic spark ignition and
power vented combustion with steady state efficiencies of
80%. These efficiencies meet or exceed all legislated min-
imum levels and provide low operating costs.
• Service Friendly – The Predator
®
Magnum incorpo-
rates a number of enhancements which improve service-
ability.
The motor and blower slide out of the unit as a common
assembly. This facilitates greater access to all the indoor
airflow components, thus simplifying maintenance and
adjustment.
Service time is reduced through the use of hinged, toolless
panels. Such panels provide access to frequently
inspected components and areas, including the control
box, compressors, filters, indoor motor & blower, and the
heating section. The panels are screwed in place at the
factory to prevent access by children or other unauthorized
persons. It is recommended that the panels be secured
with screws once service is complete.
Service windows have been placed in both condenser
section walls. Rotation of the cover allows easy access
to the condenser coils for cleaning or inspection.
Both the unit control board and ignition control board uti-
lize flash codes to aid in diagnosis of unit malfunctions.
Unique alarm codes quickly identify the source of the
unit alarm.
All units use the same standard filter size. This standard-
ization removes any confusion on which filter sizes are
needed for replacement.
The non-corrosive drain pan slides out of the unit to per-
mit easy cleaning. The drain pan is accessed by remov-
ing the drain pan cover plate on the rear of the unit. Once
the plate is removed, the drain pan slides out through the
rear of the unit.
All Predator
®
Magnum units have a second model name-
plate located inside the control access door. This is to pre-
vent deterioration of the nameplate through weathering.

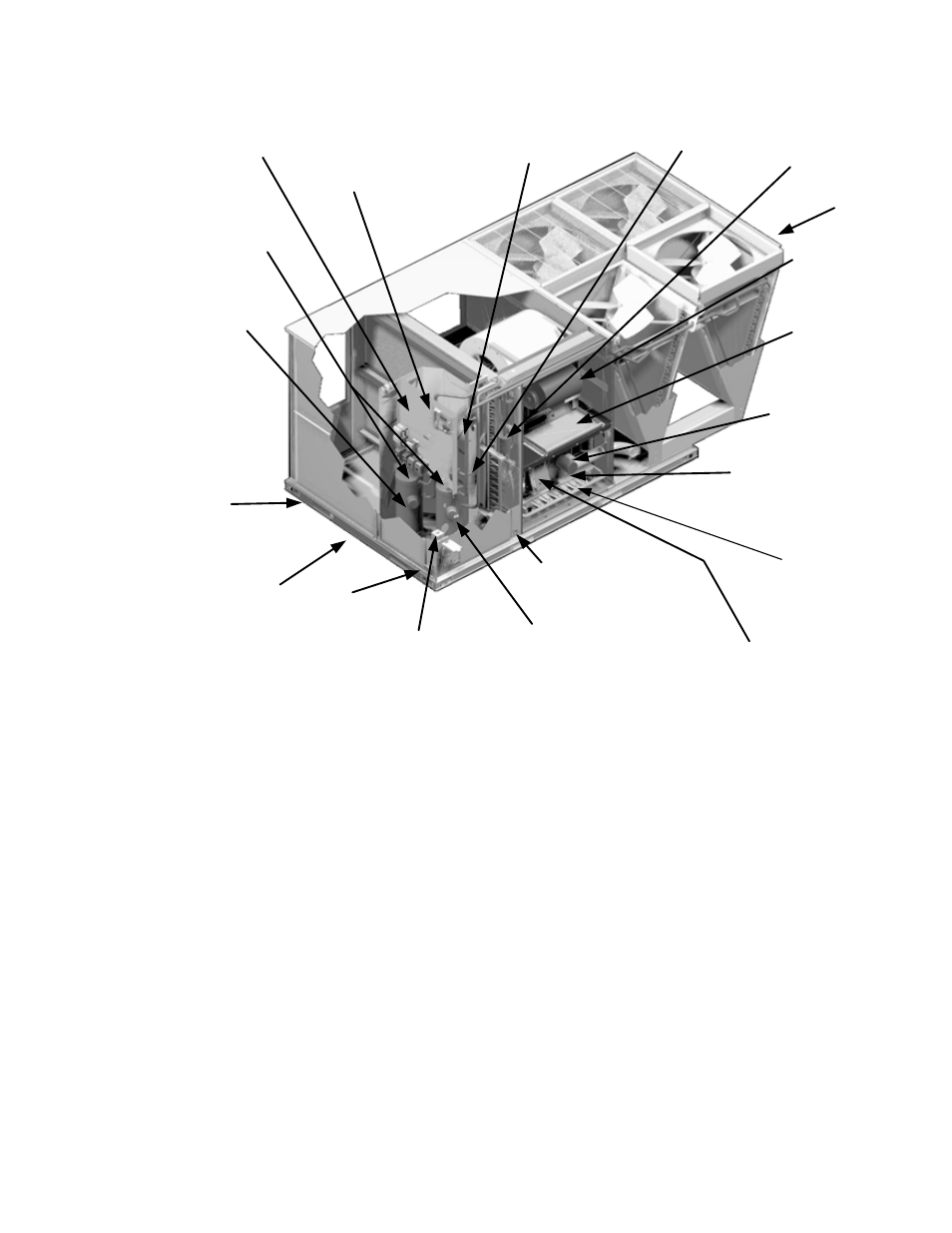

FIGURE 1 - PREDATOR ® MAGNUM COMPONENT LOCATION
Second model
nameplate inside
hinged access panel
Dual stage cooling
for maximum comfort
Compressor #2 access
(high-efficiency compressor
w/crankcase heater)
Base rails
w/forklift slots
(three sides)
and lifting holes
Roof curbs in eight-and
fourteen-inch heights.
Roof curbs for transitioning
from York Sunline™ footprint to
the DM/DH/DJ Series footprint
are available
(field-installed accessory)
Toolless
doorlatch
Side entry power
and control wiring
knockouts
Compressor #1 access
(high-efficiency compressor
w/crankcase heater)
Slide-out drain pan
with steel ¾" NPT,
female connection
Intelligent control board
for safe and efficient operation
Two-stage gas heating
to maintain warm,
comfortable temperature
20-gauge aluminized steel
tubular heat exchanger for
long life (stainless steel option)
Power ventor motor
Slide out motor and
blower assembly
for easy adjustment
and service
Belt-drive
blower motor
Condenser
Section
Filter drier
(solid core)
Filter access
(2" throw-away) Disconnect location
(optional disconnect switch) Simplicity™ Control board
w/screw connectors for T-stat
wiring and Network Connection
