Figure 8 - bottom duct openings (from above), Figure 9 - sideflow duct dimensions – York PREDATOR DJ 150 User Manual
Page 19
246695-YTG-C-0708
Johnson Controls Unitary Products
19

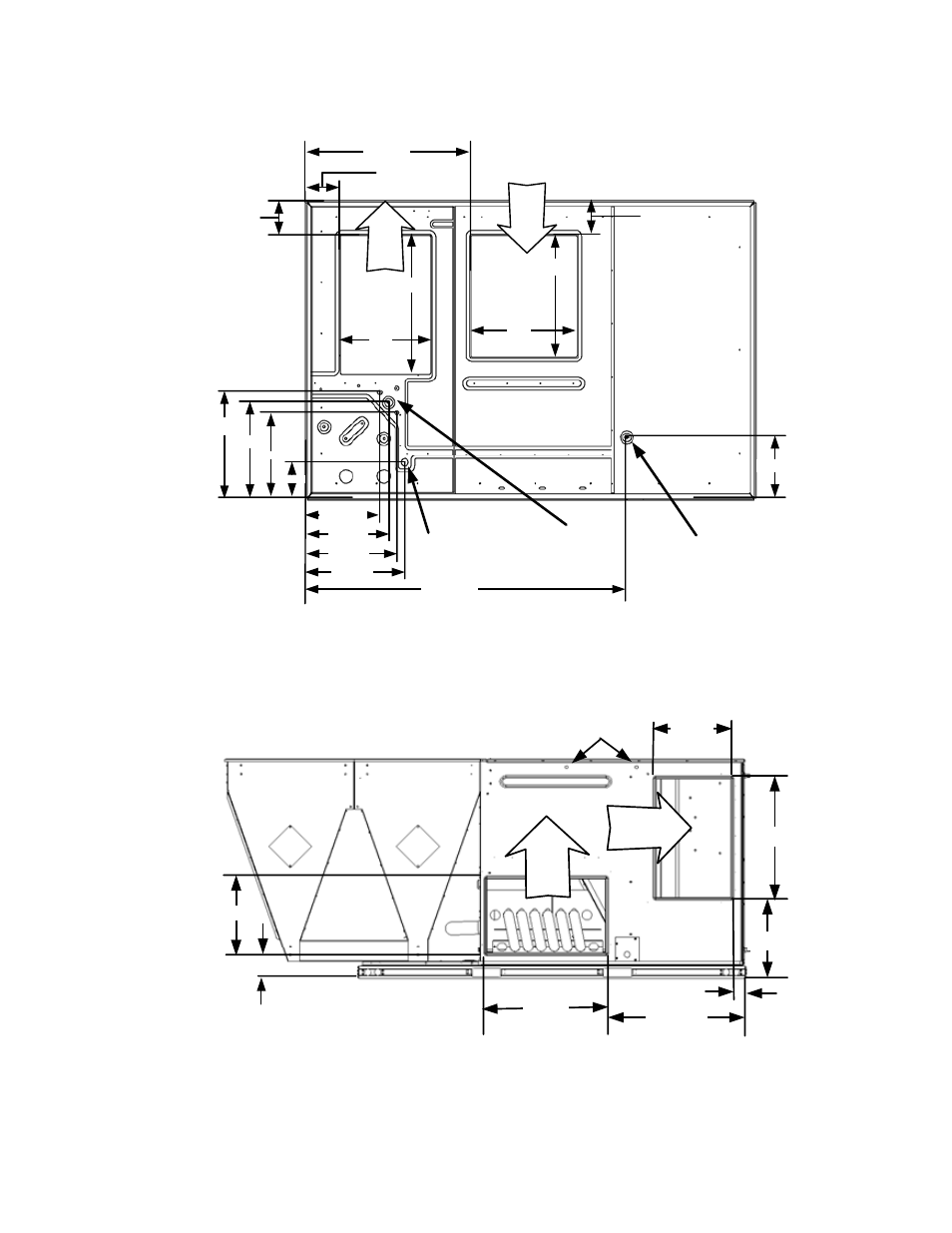

FIGURE 8 - BOTTOM DUCT OPENINGS (FROM ABOVE)
Return
Air
Supply
Air
32-11/16
6-13/16
6-13/16
6-13/16
21-3/16
19-3/16
17-3/16
7-1/8
14-23/32
16-3/8
18-1/16
19-5/8
63-1/2
27-1/2
18
24
21
12-5/16
LEFT
FRONT
Bottom
Condensate
Drain
Bottom
Power, Control and
Convenience Outlet
Wiring Entries
Bottom
Gas Supply Entry
FIGURE 9 - SIDEFLOW DUCT DIMENSIONS
Return
Air
Supply
Air
18-1/4
18-1/4
28-1/4
31-11/16
28-1/4
18-1/16
2-31/32
5-5/32
Dot
Plugs
