Page 38
P-660HW-T v2 User’s Guide
38
Chapter 1 Getting To Know Your ZyXEL Device

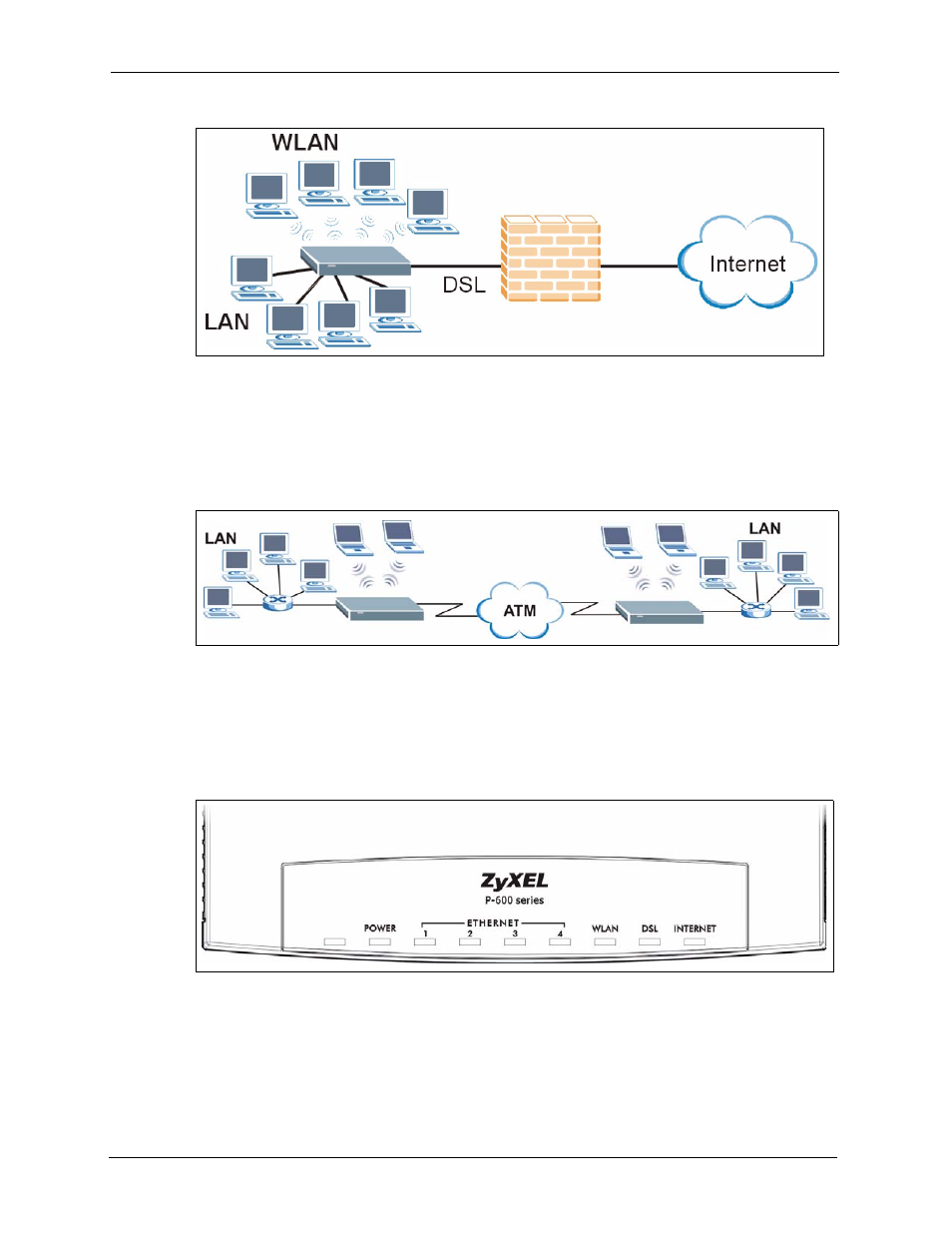

Figure 1 Protected Internet Access Applications
1.3.2 LAN to LAN Application
You can use the ZyXEL Device to connect two geographically dispersed networks over the
ADSL line. A typical LAN-to-LAN application example is shown as follows.
Figure 2 LAN-to-LAN Application Example
1.4 Front Panel LEDs
The following figure shows the front panel LEDs.
Figure 3 Front Panel
