CLP-130/120 Connections
ENGLISH
54
Clavinova HOST SELECT switch setting
Set the Clavinova HOST SELECT switch properly according to the type of connected computer.
• Macintosh: “Mac” (data transfer rate: 31,250bps, 1MHz clock)
• Windows: “PC-2” (data transfer rate: 38,400bps)
2. Using a MIDI interface and the Clavinova’s MIDI connectors

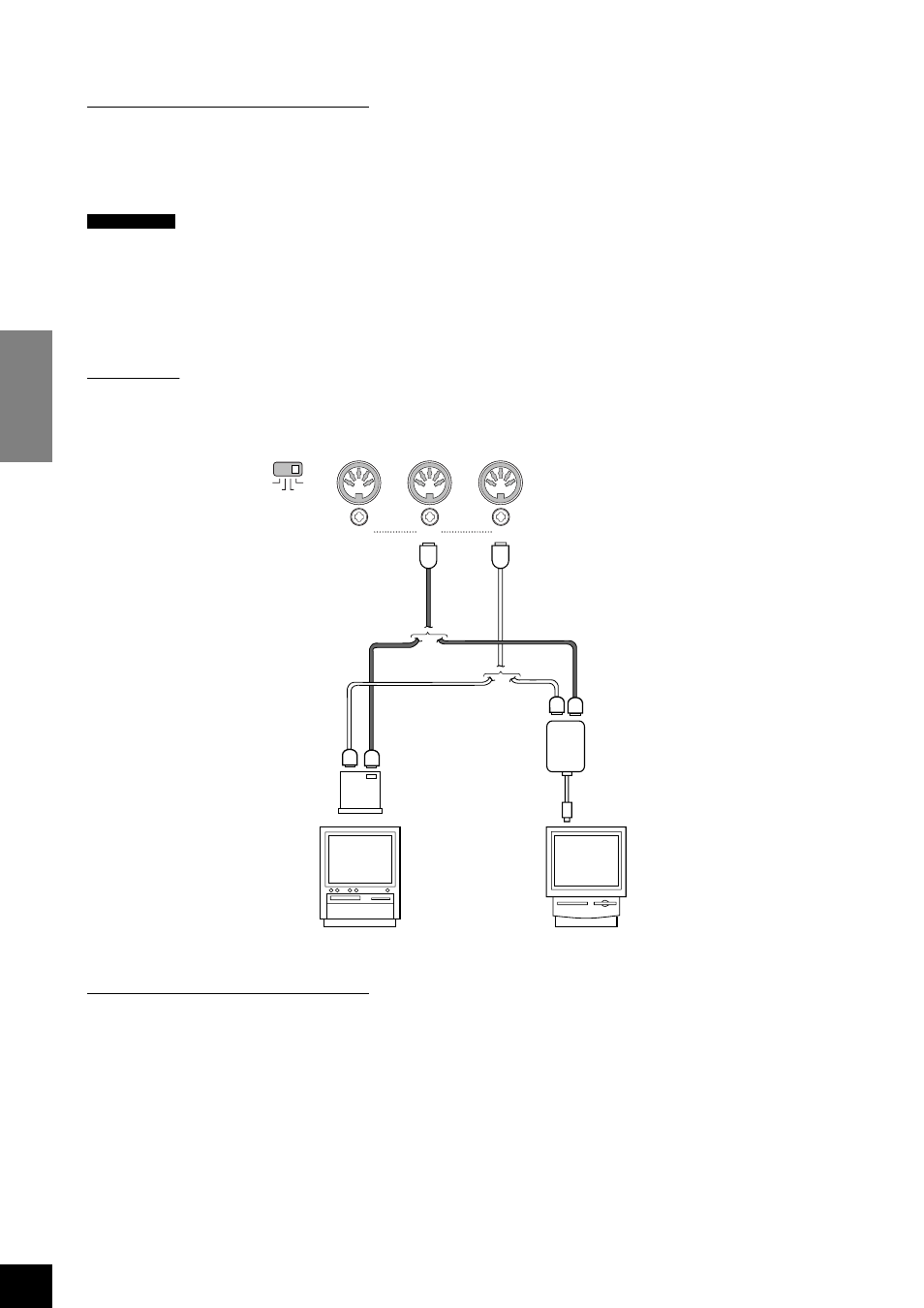

Connection
Use a MIDI interface device to connect a computer to the Clavinova using special MIDI cables.
Clavinova HOST SELECT switch setting
Set the Clavinova HOST SELECT switch to “MIDI.”
TIP If your system does not work properly with the connections and settings listed above, your software may require differ-
ent settings. Check your software operation manual and set the HOST SELECT switch to the proper data transfer rate.
(Data transfer rate of “PC-1” is 31,250bps.)
