CLP-130/120 Part Names
ENGLISH
15

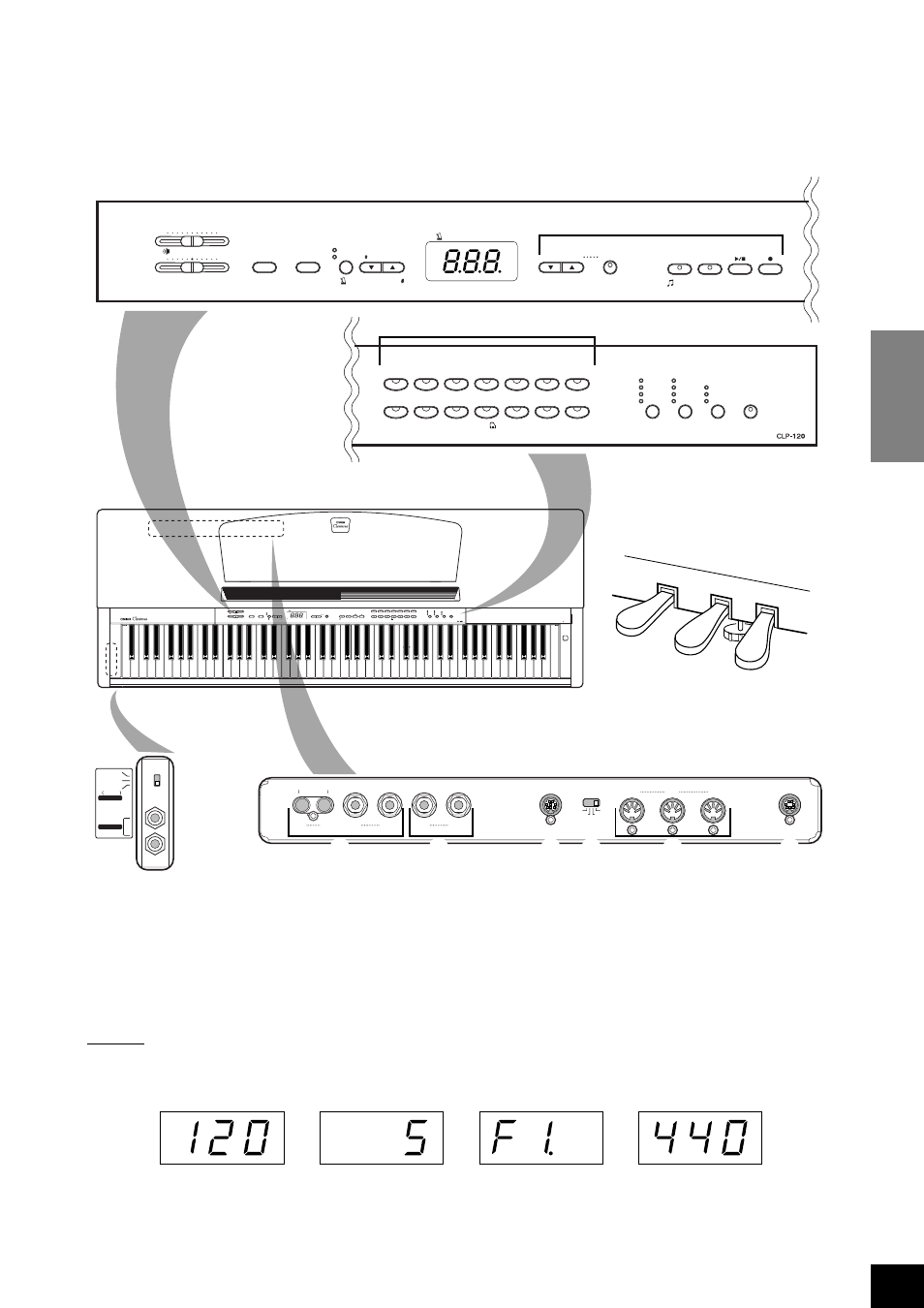

Top panel (CLP-120)
Display
• Check the operation on the display in the center of the top panel as you proceed.
• The display indicates different values, as shown below, depending on the operation.
A B C D
1
2
3
4 5 6 8 7
9
C0 D0 E0 F0 G0 A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7 B-1 A-1
MASTER VOLUME
BRILLIANCE DEMO METRONOME TEMPO / FUNCTION
TEMPO/ OTHER VALUE
MELLOW BRIGHT START/STOP
TEMPO
FUNCTION
MIN MAX
— /NO +/ YES PRESET TRACK
1
TRACK
2
START/STOP REC
GRAND
PIANO 1
CHURCH
ORGAN1 CHURCH
ORGAN2
E.PIANO
1
E.PIANO
2
HARPSI-
CHORD1
HARPSI-
CHORD2
VIBRA-
PHONE
CHOIR GUITAR
ROOM
HALL 1
HALL 2
STAGE CHORUS
PHASER
TREMOLO
DELAY
HARD
MEDIUM
SOFT
ON
GRAND
PIANO 2
JAZZ
ORGAN
STRINGS
1
STRINGS
2
REVERB EFFECT TOUCH TRANSPOSE
SONG
PHONES
SPEAKER
NORMAL
OFF
ON
HP. SW
MASTER VOLUME
BRILLIANCE DEMO METRONOME TEMPO / FUNCTION
TEMPO/ OTHER VALUE
MELLOW BRIGHT START/STOP TEMPO
FUNCTION
MIN MAX
— / NO +/ YES PRESET TRACK 1 TRACK 2 START/STOP REC
GRAND
PIANO 1
CHURCH
ORGAN 1
E.PIANO 1 E.PIANO 2 HARPSI-
CHORD 1 HARPSI-
CHORD 2 VIBRA-
PHONE
CHOIR GUITAR
ROOM
HALL 1
HALL 2
STAGE CHORUS
PHASER
TREMOLO
DELAY HARD
MEDIUM
SOFT ON
GRAND
PIANO 2
CHURCH
ORGAN 2 STRINGS 1 STRINGS 2 JAZZ ORGAN
VOICE REVERB EFFECT TOUCH TRANSPOSE SONG POWER
AUX OUT AUX IN
L/L+R
LEVEL FIXED
R L/L+R R L R
PEDAL TO HOST HOST SELECT
MIDI
THRU
MIDI Mac
PC-2 PC-1
OUT IN
E F G H I J
M
N
O
K
L
VOICE
Connectors (CLP-120)
H [TO HOST] ...............................P49–55
I HOST SELECT...........................P49–55
J MIDI [IN] [OUT] [THRU]...........P49–55
K [SPEAKER] ..................................... P12
L [PHONES] ..................................... P12
M Soft (Left) Pedal ............................ P22
N Sostenute (Center) Pedal............... P22
O Damper (Right) Pedal ................... P21
Tempo
(Normal indication)
A song number of
“50 Greats for the Piano”
Function number Parameter value
