Step 27
Install bottom tray
You will need: Bottom tray, catch pan holder, catch
pan, and one drip pan.

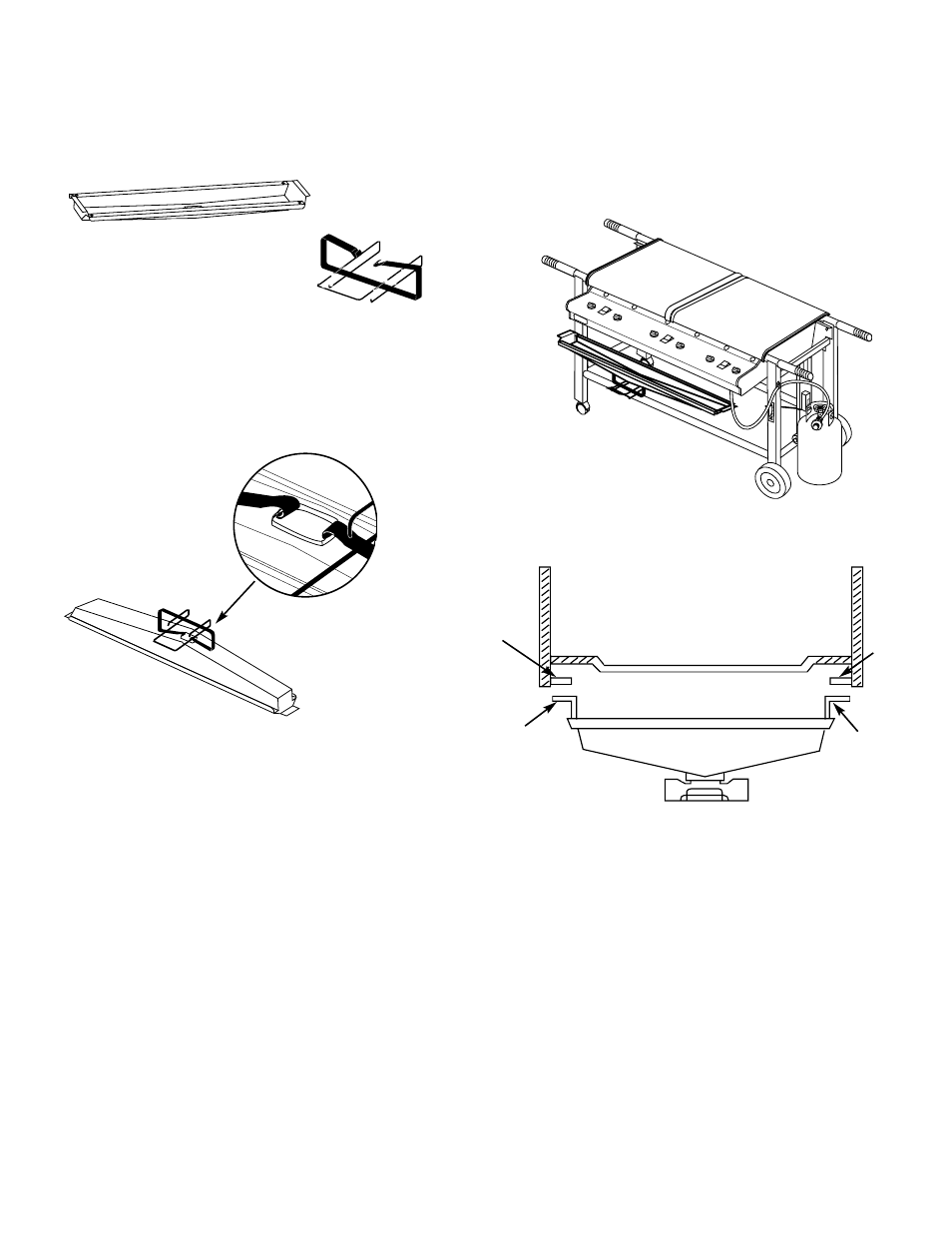

Figure 41
Figure 42
Figure 43
Figure 44
Note: It may be easier to install the catch pan holder
by removing the catch pan from the holder.
Hook the ends of the catch pan holder into the hole in
the bottom tray. Figure 42.
Slide the bottom tray into the mounting slots under the
bottom of the cooking box with the finger grip of the
catch pan toward you. Figure 43.
ƽCAUTION: Do not line the bottom tray with
aluminum foil. It can cause grease fires by trapping
the grease and not allowing grease to flow into the
catch pan.
Put the foil drip pan into the catch pan.
Mounting
slots
Mounting
slots
View from front of the Cooking Box
Tabs of
bottom tray
Tabs of
bottom tray
