Step 6
Assemble front top frame rail
You will need: one top frame rail #1,
one top frame rail #2, one 1/4-20 x 1/2 inch bolt, frame
assembly and 7/16 inch or adjustable wrench.
Put top frame rail #1 to your right and top frame rail #2
to your left. Figure 6. Insert top frame rail #1 into top
frame rail #2. Figure 6 (a).
Insert the bolt. Figure 6 (b). Tighten bolt with a wrench.
(If you try to insert a bolt and there are no holes, you
have top frame rail #2 turned the wrong way. Turn top
frame rail #2 around.)
Note: Do not use a washer for this step.
Step 5
Install match holder bracket
You will need: one plastic button, match holder bracket
and frame assembly.
Align the match holder with the hole in the frame cross
piece and insert the plastic button through the match
holder bracket and frame.Figure 5.
Uncoil match holder and chain and hang on bracket.

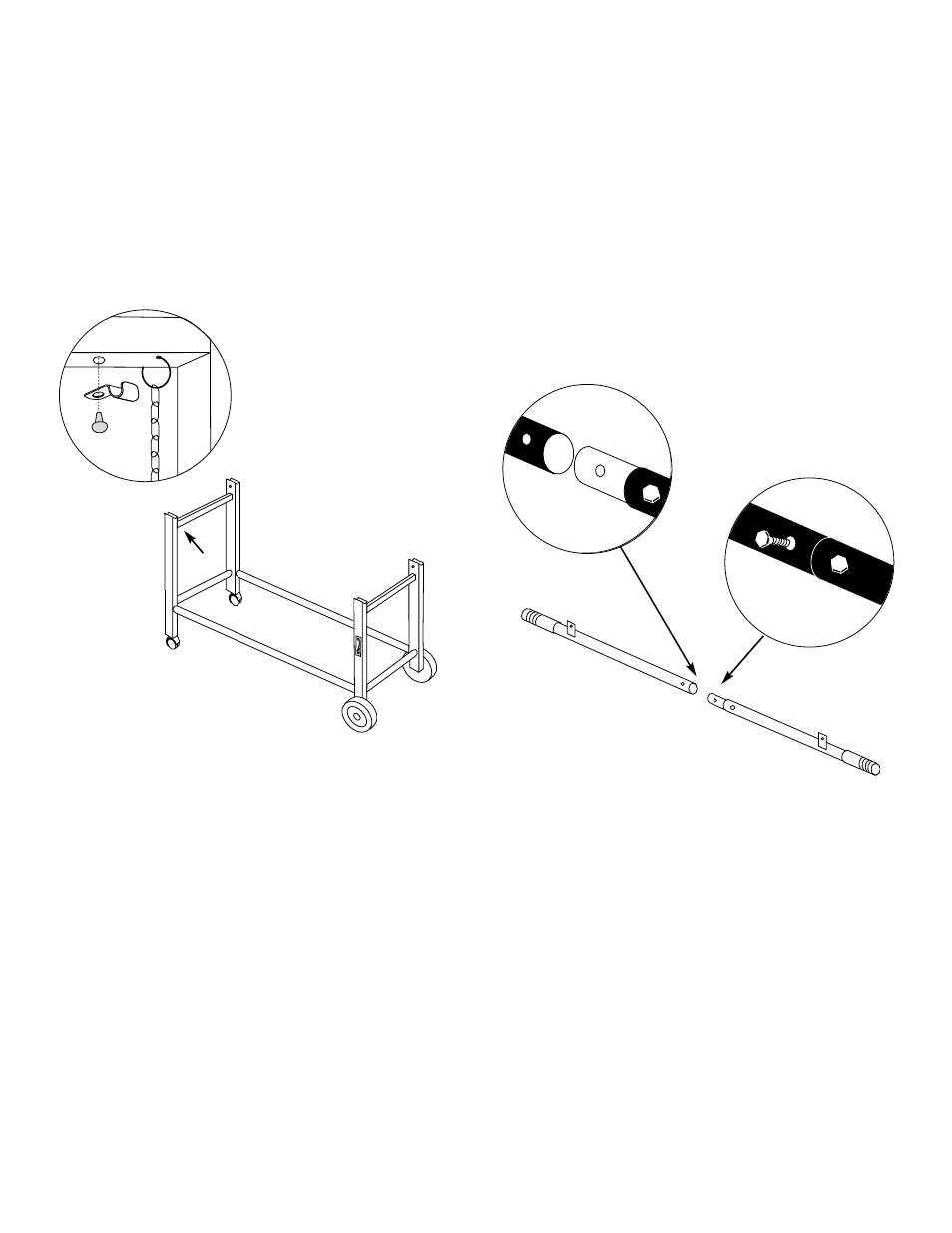

Figure 6
Figure 5
(a)
(b)
1
2
View from underneath
side of frame
