Step 2

Assemble wheel frame

You will need: wheel frame, two wheels, two wheel
hubcaps, hammer and a block of wood.

Note: Work on a carpeted area (on grass, or on one of
the boxes) to protect the finish during the frame
assembly.

Set one end of wheel frame on the block of wood (or
other hard, protected surface). Put one wheel on axle,
WEBER side facing up, and tap on one hubcap.

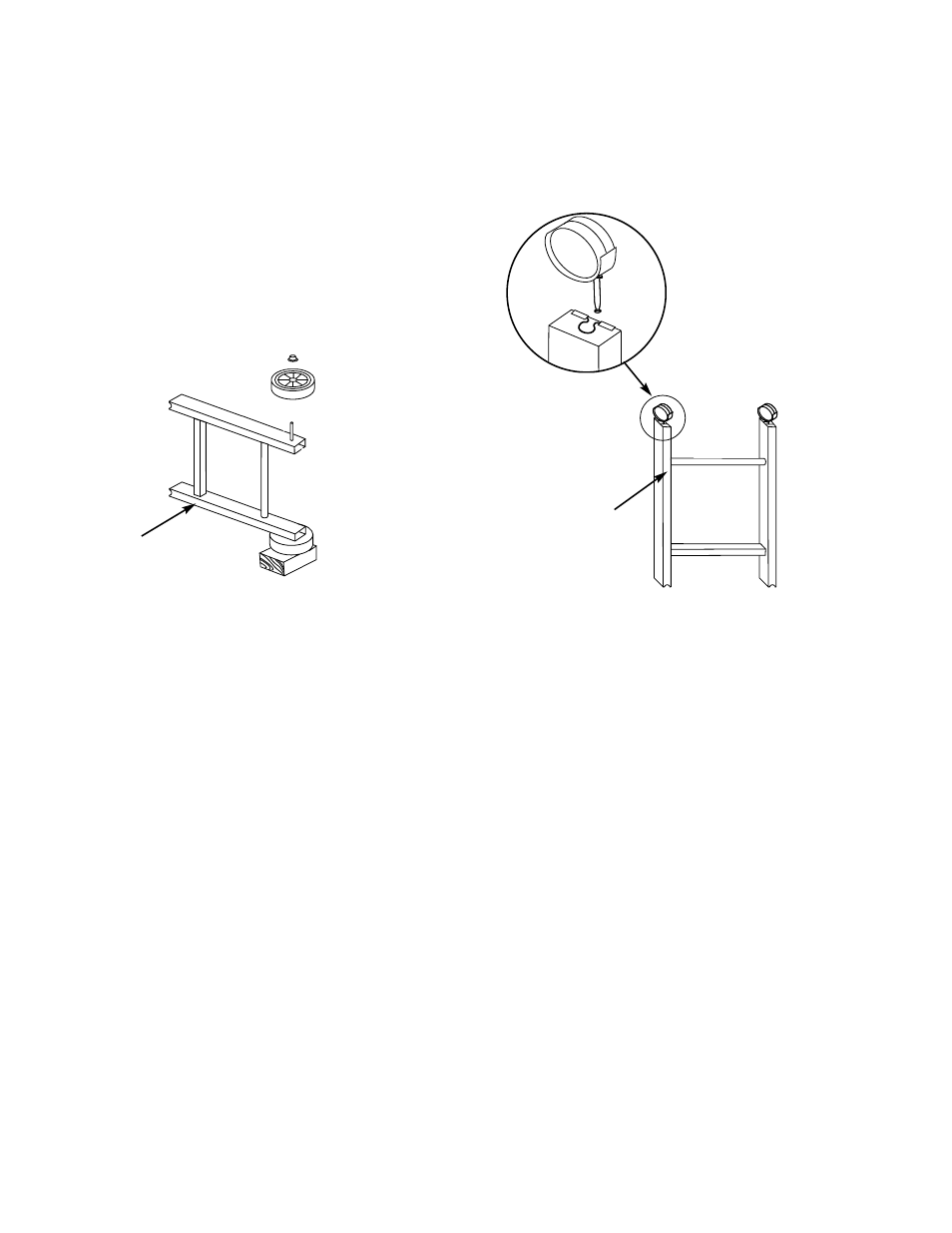

Figure 1.

Repeat with other wheel and hubcap.

Step 3

Insert casters

You will need: caster frame and two casters.

Push the casters firmly into the inserts in the ends of
the caster legs. Figure 2.

Figure 1

Figure 2

Wheel frame

Caster frame
