Maintenance Instructions
REPLACING/REPAIRING
67
GHS Blower Drive Belt
1.
Remove the GHS blower drive belt by unhook-
ing the belt tension spring from the hook on the
chassis frame (located above the blower pul-
ley). Lift the belt tightener idler pulley up and roll
belt off the pulleys.

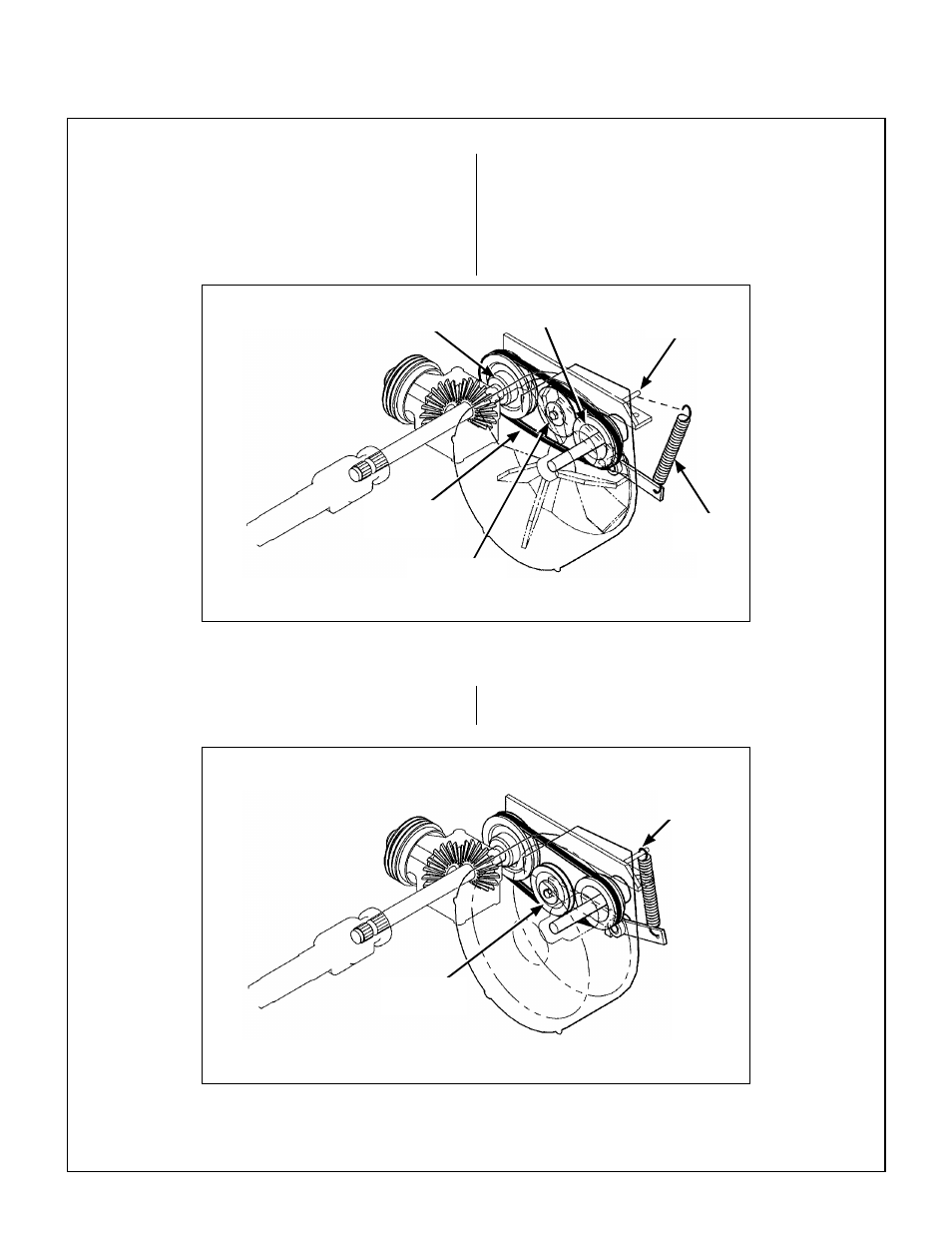

Chassis
Frame Hook
Blower
Pulley
Belt Tightener
Idler Pulley
(Disengaged)
Blower Drive
Pulley
Spring
Removed
GHS Blower
Drive Belt
Spring
Attached
Idler Pulley
(Engaged)
GHS Blower Drive Belt Assembly (Disengaged)
Blower Drive Belt Spring Removal
2.
Reverse the procedure to install the GHS blow-
er drive belt and spring.
GHS Blower Drive Belt Assembly (Engaged)
