Assembly Instructions
18

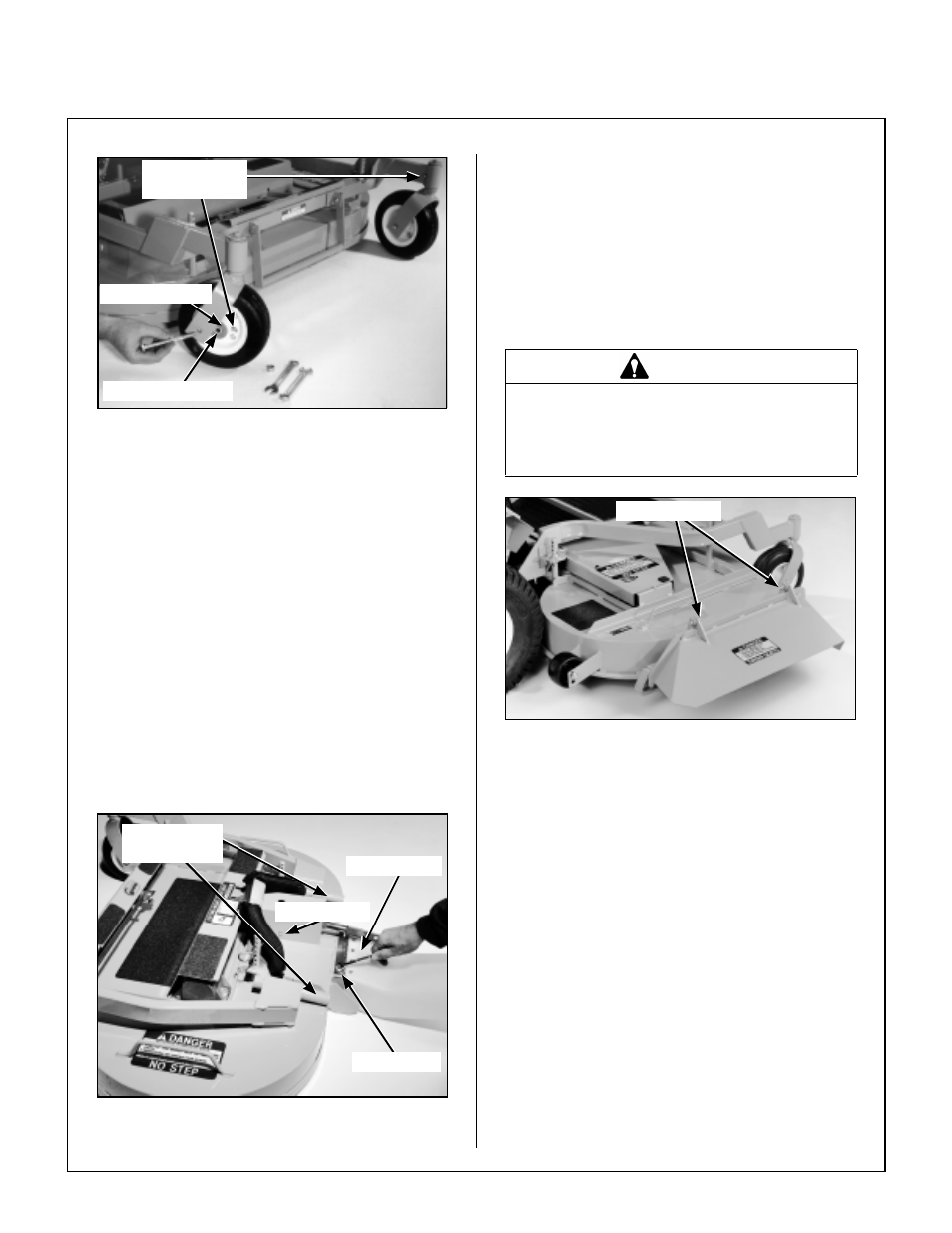

Deck Caster Wheel Installation
NOTE: If semi-pneumatic wheels are installed,
make sure the spacer washers fit over the spacer
tube and are not caught between the fork and the
end of the tube. The washers should move freely
on the axle spacer tube.
5. Grease the caster wheel bearings and caster
pivot bearings - one grease fitting for each wheel
and each pivot.
Deck Discharge Chute Installation
(GHS Rear Discharge Models Only)
Mount the discharge chute hinge on top of the deck
discharge opening using the 1/4-20 x 1/2 in. socket
button head bolt and 1/4-20 ESNA nut. Position the
bolt with the head inside of the chute and the nut on
the outside.
Discharge Chute and PTO Shaft Guard
Installation on Rear Discharge Deck
Deck Discharge Shield Installation
(Side Discharge Models Only)
Attach the deck side discharge shield by positioning
the shield hinge lug in front of the deck mount and
fastening with two 3/8-16 x 1-1/4 in. bolts, 3/8-16
ESNA nuts, and 3/8 in. wave spring washers. The
wave washers fit between the two hinging surfaces.
Tighten the nuts until the shield moves freely but is
not loose.
Discharge Shield Installation
on Side Discharge Deck
PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two 1/4-20 x 1/2 in. bolts.
Mower Deck lnstallation on Tractor
Deck Installation
1. Lightly grease each deck support arm (2) on the
tractor. Refer to Mower Deck Installation pho-
to on next page for location of deck support arm.
2. Engage the deck carrier frame tube sockets on
the tractor support arms (refer to Discharge
Chute and PTO Shaft Guard Installation
photo for socket location). Slide the deck onto
the support arms: all the way if SD equipped
model, approximately 3 in. (76 mm) if GHS
equipped model.
Spacer Washer
Axle Spacer Tube
Grease Fitting
Locations
Carrier Frame
Tube Sockets
Attach Chute
Attach Guard
Nut on Top
WARNING
DO NOT operate the machine without the
grass deflector chute attached and in the
lowest possible position.
Attach Shield
