CONTROLS
SGJ32 86037680 01/03/07 3-8
Indicates vac motor is running
5. SOLUTION
CONTROL SWITCH
This switch controls the amount of solution flow to the scrub deck. There are 7 different flow settings. To
increase the solution flow, press the solution control switch (+). To decrease solution flow, press the top of
the switch (-). If the brush motors are turned off or the direction control pedal is in neutral, the flow is
automatically interrupted until the motors are turned on again, or the drive pedal is moved forward or reverse.
This feature prevents unintentional draining of the solution tank and allows the operator to adjust the solution
flow to the scrub deck without resetting each time the scrubbing operation is interrupted. If recycling option is
installed, this switch controls the amount of solution flow to the scrub deck by controlling the speed of the
pump.
NOTE: Press switch and hold momentarily each time to change solution flow.
6. VACUUM/SQUEEGEE SWITCH
This switch independently controls the vacuum motor and squeegee position. To start the vacuum motor and
lower the squeegee to the floor, press the bottom of the switch. To raise the squeegee and turn off the
vacuum motor, press the top of the switch. The squeegee will raise after a 15 second delay, and the vacuum
motor will turn off 15 seconds later, in order to clear vacuum hose of recovered solution.

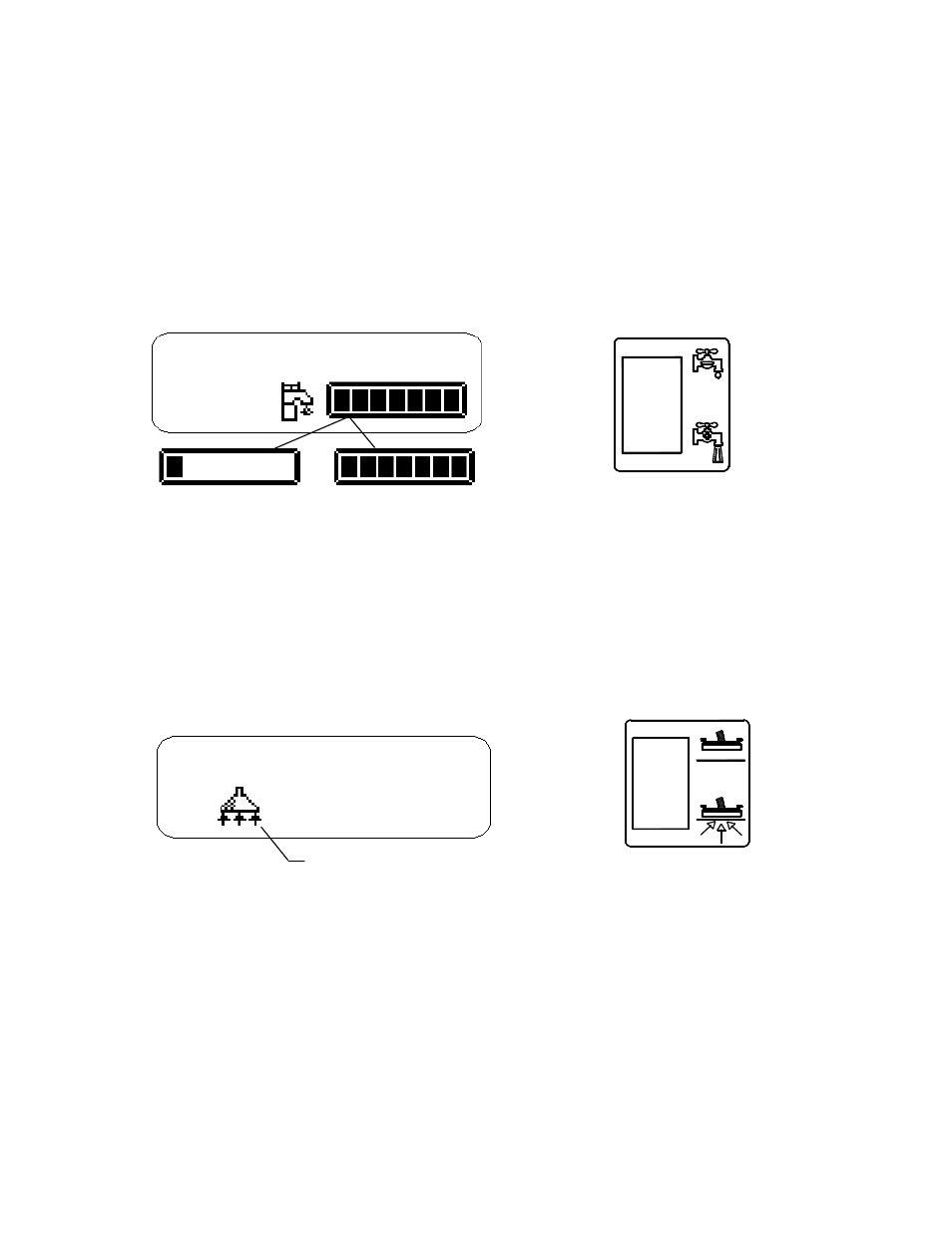

INFORMATION DISPLAY
LESS SOLUTION MORE SOLUTION
