GOLD CGs Gas-Fired Water Boiler — Boiler Manual

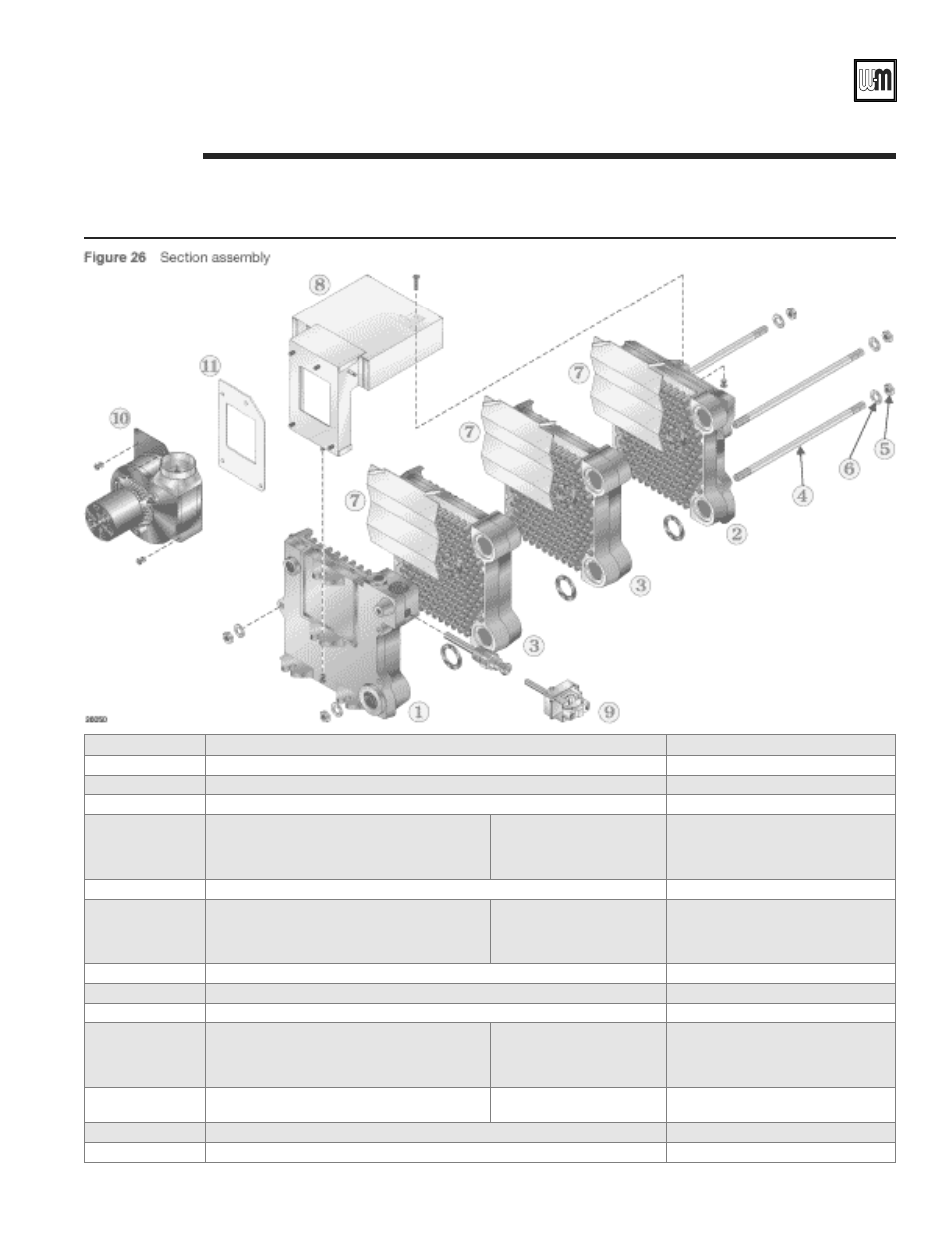

Replacement parts — section assembly
12b
Item number Description Weil-McLain part number
1 End section, left hand, 51124 311-103-830
2 End section, right hand 51128 311-103-821
3 Intermediate section, 51125 311-103-818
not shown Replacement section assembly CGs-3
CGs-4
CGs-5
CGs-6 321-114-345
321-114-346
321-114-347
321-114-348
not shown Section replacement kit, includes seals and sealant for 1 joint 381-354-527
4 Tie rod, ⁷⁄₁₆" without nut (3 per boiler): CGs-3
CGs-4
CGs-5
CGs-6 560-234-500
560-234-501
560-234-502
560-234-503
5 Nut, ⁷⁄₁₆" (2 per tie rod) 561-928-235
6 Washer, ⁷⁄₁₆" (1 per tie rod) 562-248-684
7 Radiation plate (1 per joint) 460-003-700
8 Collector hood and transition assembly CGs-3
CGs-4
CGs-5
CGs-6 450-020-511
450-020-512
450-020-513
450-020-514
9 High limit, 30˚ differential, with well Honeywell L4080D1036
White-Rodgers 11B81-3 510-312-250
10 Inducer fan assembly kit, includes inducer fan assembly, gasket and nuts 381-356-499
11 Gasket, inducer 590-317-627
