Part Number 550-141-873/0502 10
5. Install vent starter
87208
Saf-T Vent®
starter
Band clamp
screw
Band clamp
strap
Blower
housing
outlet
³⁄₈" Bead of
sealant
87209
Band clamp
screw
Band clamp
strap
Blower
housing
outlet
3/8" Bead
of sealant
StaR-34
starter
87210
Z-Vent II
starter
Feed
position
Tighten
position
Band clamp
screw Band clamp
strap
Blower
housing
outlet
³⁄₈" Bead
of sealant
87211
FasNSeal™
starter
Band clamp
screw
Band clamp
screw
Band clamp
strap
Blower
housing
outlet

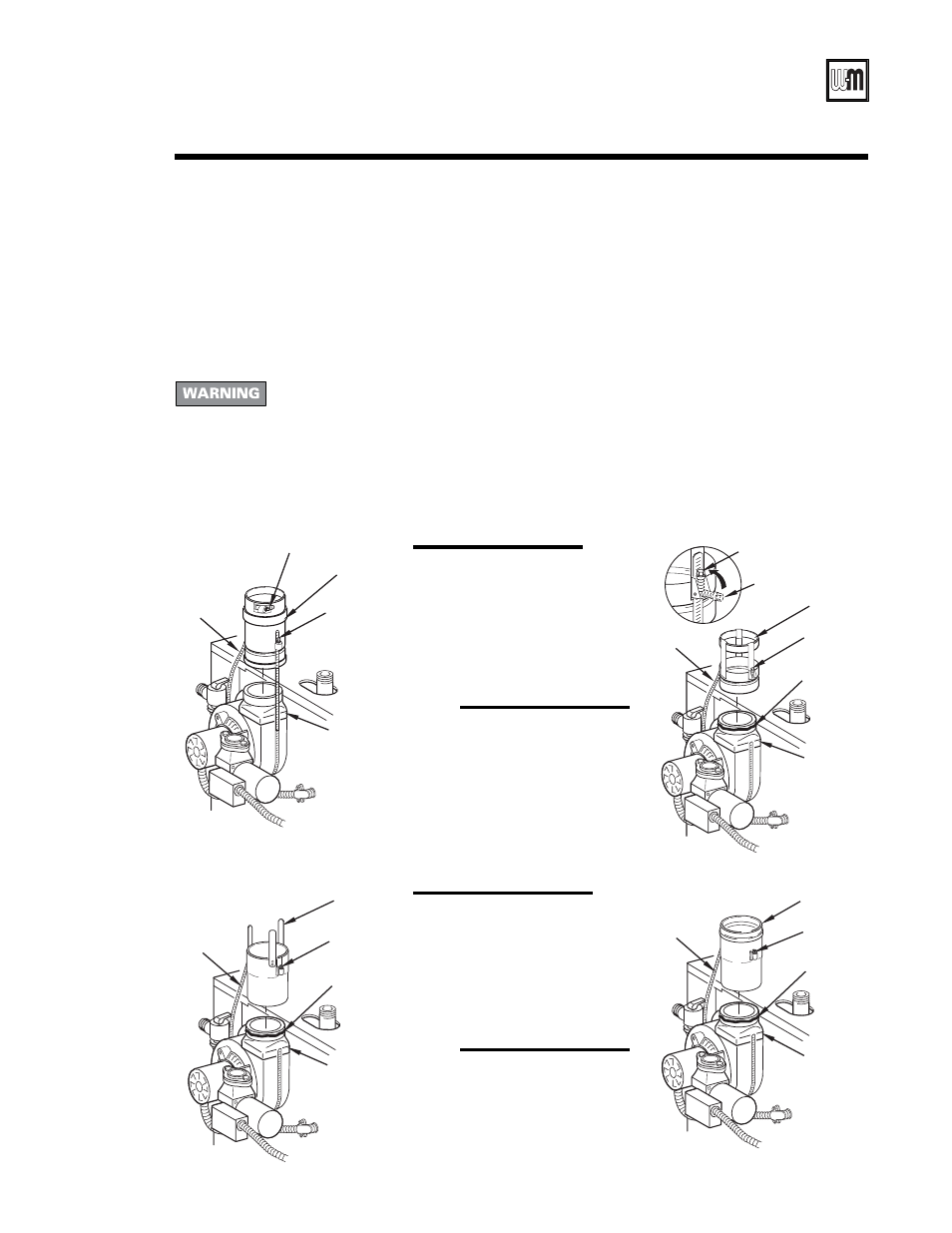

Figure 7
FasNSeal ™ vent starter
Figure 8
Z-Vent II vent starter
Figure 10
StaR-34 vent starter
Figure 9
Saf-T Vent ® vent starter
1. Select a vent pipe manufacturer and obtain all vent
components needed, based on boiler location and
venting method.
2. You must use the vent starter made by the vent pipe
manufacturer. See separate CGi, CGs & GV Vent
Component Supplement , for part numbers of each
component, listed by vent manufacturer.
Use only the vent starter of the same
manufacturer as the vent compo-
nents. Do not mix components from
different systems. The vent system
could fail, causing flue gas spillage,
resulting in severe personal injury or
death.
3. Follow all applicable national, state, local or
provincial codes when venting the CGs boiler.
4. Connect vent starter to blower housing outlet as
shown in the Figures 7 through 10 , below.
a. Do not mix components from different vent
manufacturers.
b. Maintain minimum 2" clearance from
combustible materials to vent pipe.
c. Seal with sealant specified by vent pipe
manufacturer, using
³⁄₈" bead (not required for
FasNSeal™).
d. Tighten strap at band clamp screw until strap is
snug around blower housing.
