13
BMC and BMC-6X Installation and Operation Manual

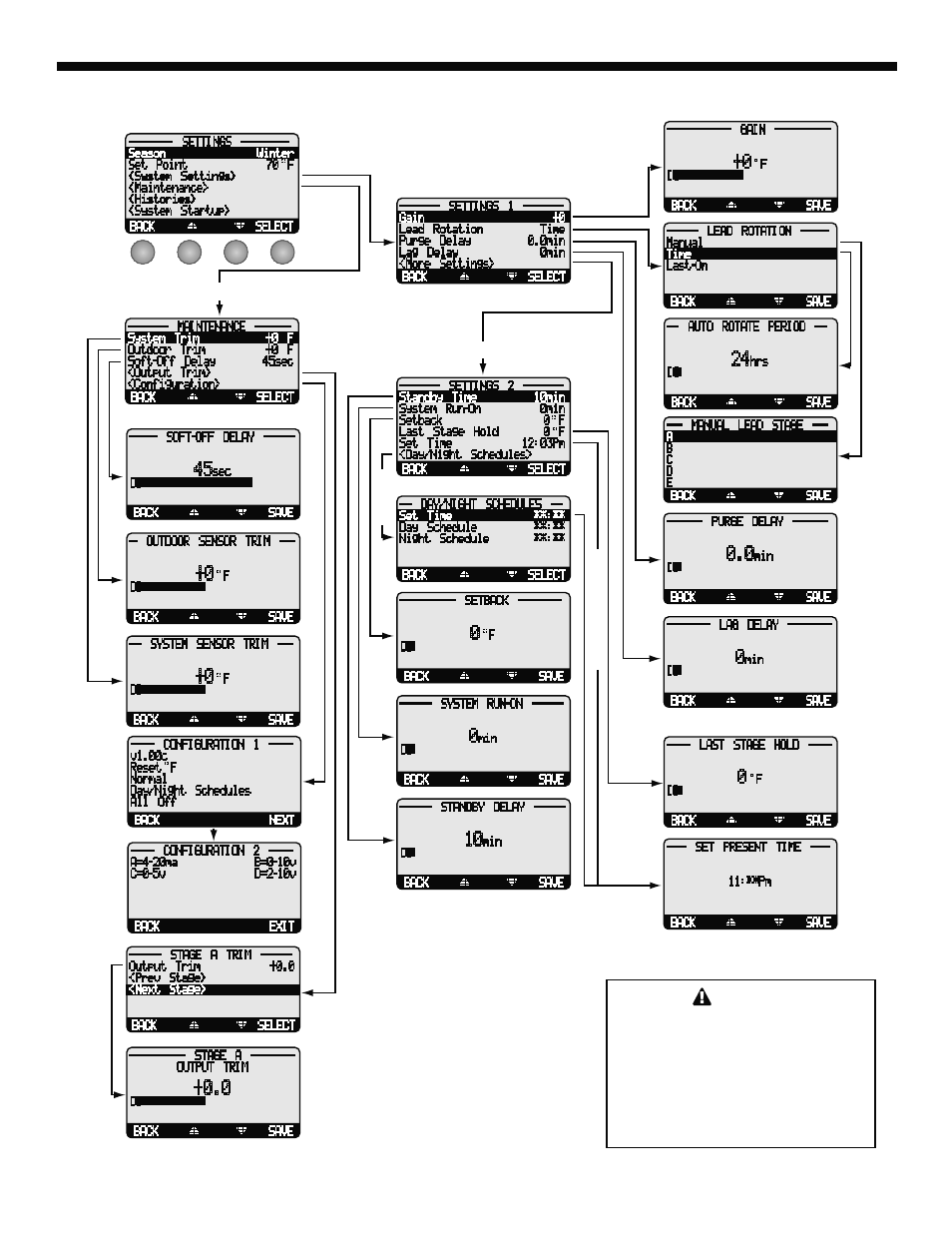

----------- SETTINGS ------------
Season Winter
Set Point 70 F
BACK SELECT
BACK SAVE
---------------- GAIN --------------
+0
F
[]
BACK SELECT
---------- SETTINGS 1 ----------
Gain +0
Lead Rotation Time
Purge Delay 0.0min
Lag Delay 0min
BACK SELECT
---------- SETTINGS 2 ----------
Standby Time 10min
System Run-On 0min
Setback 0 F
Last Stage Hold 0 F
Set Time 12:03Pm
BACK SELECT
--- DAY/NIGHT SCHEDULES ---
Set Time **:**
Day Schedule **:**
Night Schedule **:**
BACK SAVE
-------- LEAD ROTATION -------
Manual
Time
Last-On
BACK SAVE
---- MANUAL LEAD STAGE ----
A
B
C
D
E
BACK SAVE
--- AUTO ROTATE PERIOD ---
24
hrs
[]
BACK SAVE
--------- PURGE DELAY ---------
0.0
min
[]
BACK SAVE
----------- LAG DELAY -----------
0
min
[]
SYSTEM SETTINGS1
SYSTEM SETTINGS2
BACK SAVE
-------- STANDBY DELAY --------
10
min
[]
BACK SAVE
-------- SYSTEM RUN-ON --------
0
min
[]
BACK SAVE
-------------- SETBACK -----------
0
F
[]
BACK SAVE
------ LAST STAGE HOLD ------
0
F
[]
BACK SAVE
----- SET PRESENT TIME -----
11:**Pm
SETBACK INPUT
Shutdown
/TStat
BACK SELECT
---------- MAINTENANCE ---------
System Trim +0 F
Outdoor Trim +0 F
Soft-Off Delay 45sec
MAINTENANCE
BACK SAVE
--- SYSTEM SENSOR TRIM ----
+0
F
[]
BACK SAVE
-- OUTDOOR SENSOR TRIM ----
+0
F
[]
BACK SAVE
------- SOFT-OFF DELAY --------
45
sec
[]
BACK SELECT
-------- STAGE A TRIM --------
Output Trim +0.0
BACK SAVE
-------------- STAGE A -----------
OUTPUT TRIM
+0.0
[]
BACK EXIT
------ CONFIGURATION 2 ------
A=4-20ma B=0-10v
C=0-5v D=2-10v
BACK NEXT
------ CONFIGURATION 1 ------
v1.00c
Reset F
Normal
Day/Night Schedules
All Off
ALERT
To be able to change the BMC
settings the Program/Run Switch
must be set to Program. The switch
is located under the Enclosure
Wiring Cover for security. The
Enclosure Wiring Cover can be
securely closed using a lock.
