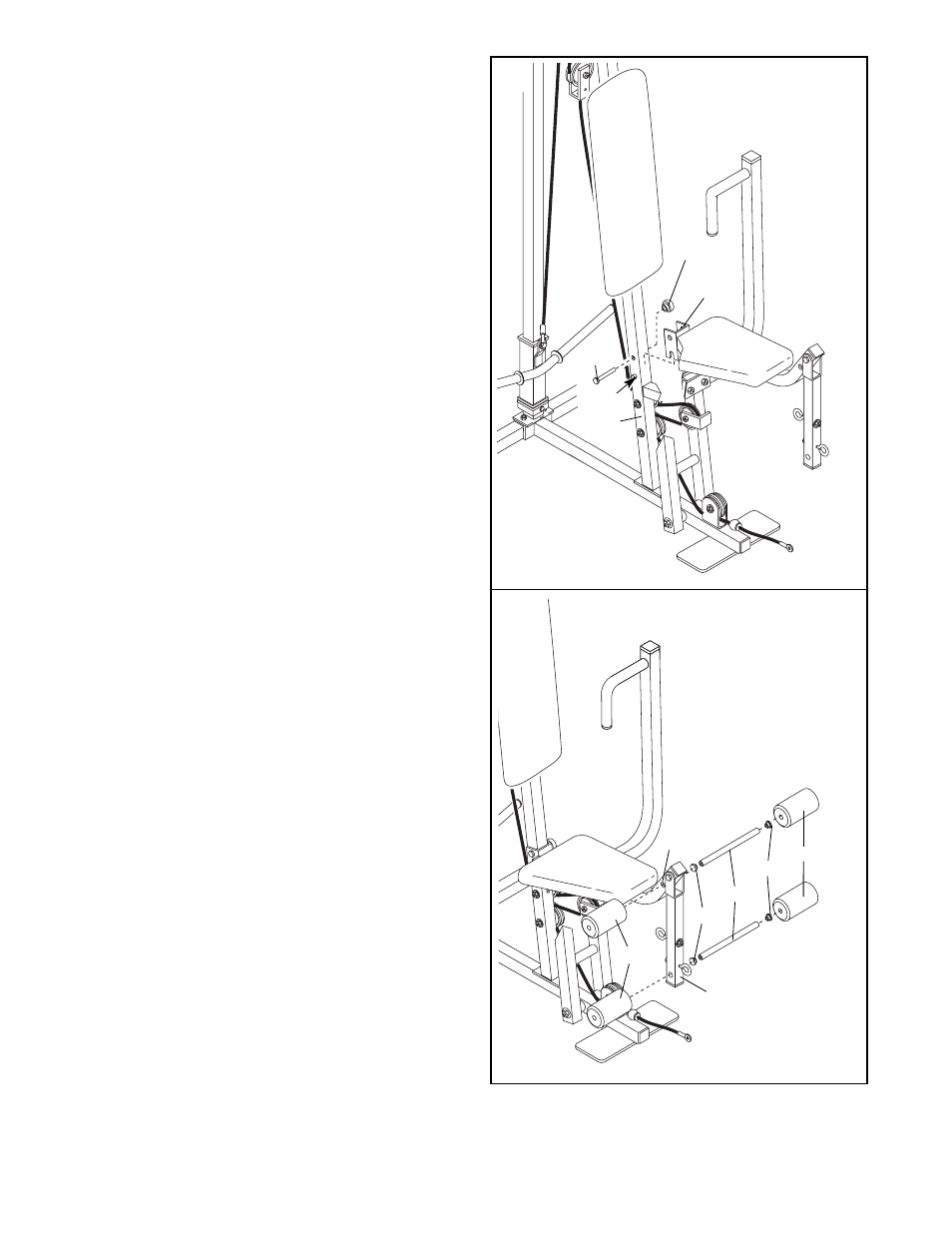

26. Rest the Seat Frame (36) on the indicated pin in
the Front Upright (42). Attach the Seat Frame to
the Front Upright with an M8 x 67mm Carriage
Bolt (14) and the Seat Knob (40).
26
36
40
Pin
42
14
27. Press 19mm Round Inner Caps (34) into the ends
of both Pad Tubes (28).
Insert one Pad Tube (28) into the Seat Frame
(36). Slide a Foam Pad (30) onto each end of the
Pad Tube.
Insert the other Pad Tube (28) into the Leg Lever
(29). Slide a Foam Pad (30) onto each end of the
Pad Tube.
27
30
34
28
34
29
30
36
