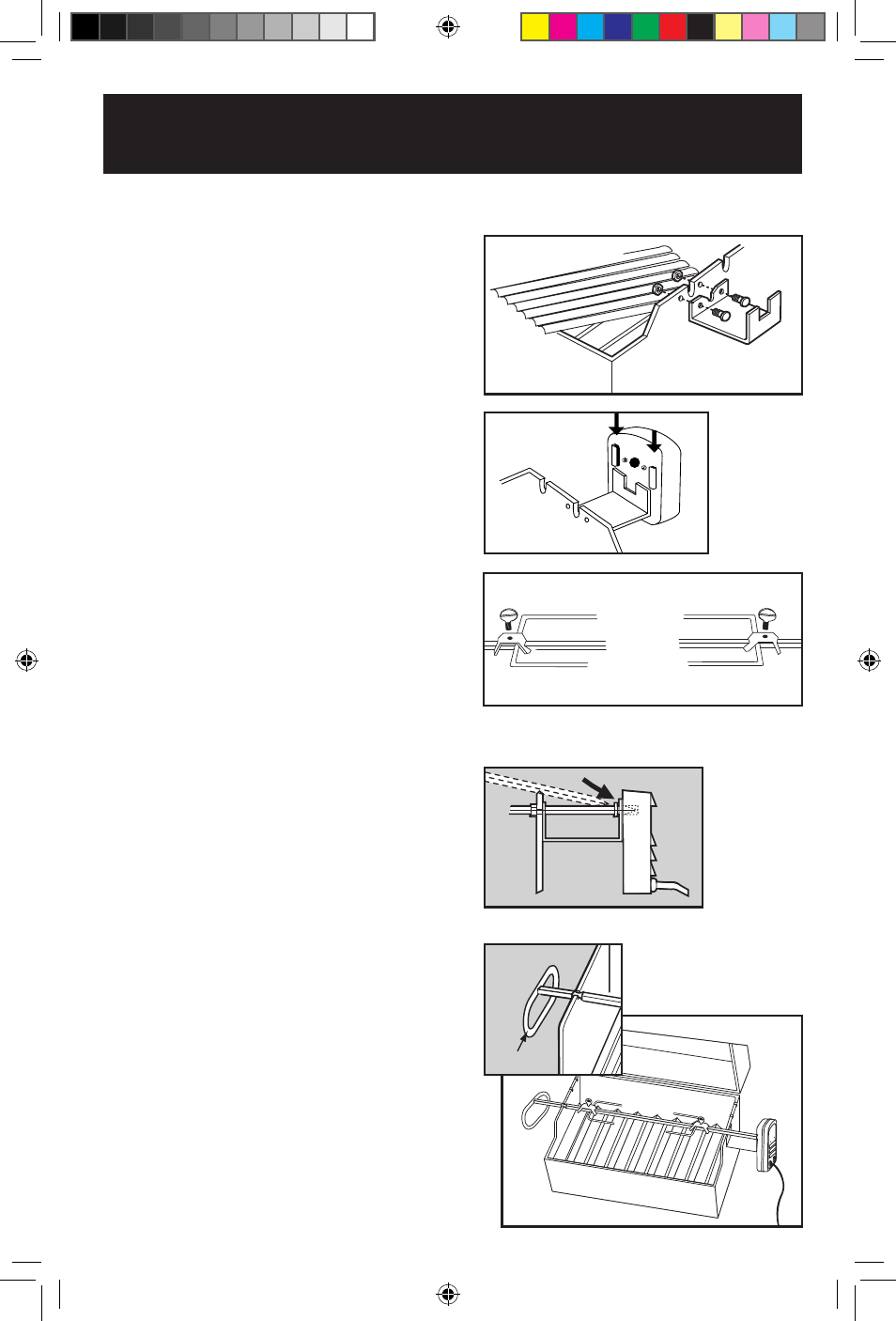

assembly
1. Install the motor bracket
Attach the stainless steel motor bracket
to the left-hand side of the cooking box,
using the 1/4-20 fasteners and the
1/4-20 Keps nuts.
2. attach the motor
Slide the motor onto the stainless steel
motor bracket.
3. Put the spit Forks on the
rotisserie shaft
Slide the forks onto the shaft so that
the tines are facing each other. Screw
in the thumb screws to hold the forks
in place.
4. Insert the rotisserie shaft in the
motor
Insert the pointed end of the rotisserie
shaft into the motor.
5. set the rotisserie shaft on
rotisserie support block
Place the handle(1) end of rotisserie on
the support notch.
