the mounting surface with nails.
Weather seal (may not be included):
Cut or trim the weather seal (if necessary) to the header and jambs.
NOTE: If nailing product at 40°f or below, pre-drilling is required.
for Q.I. track: Align the header seal with the inside edge of the header and temporarily secure
it to the header with equally spaced nails. next, fit the jamb seals up tight against the header
seal and flush with the inside edge of the jamb. Temporarily secure the jamb seals with equally
spaced nails. This will keep the bottom section from falling out of the opening during installation.
for f.A. track: Align the header seal 1/8” to 1/4” inside the header, and temporarily secure it
to the header with equally spaced nails. next, fit the jamb seals up tight against the header seal
and 1/8” to 1/4” inside the jamb. Temporarily secure the jamb seals with equally spaced nails.
This will keep the bottom section from falling out of the opening during installation.
NOTE: Do not permanently attach weather seal to the jamb at this time.

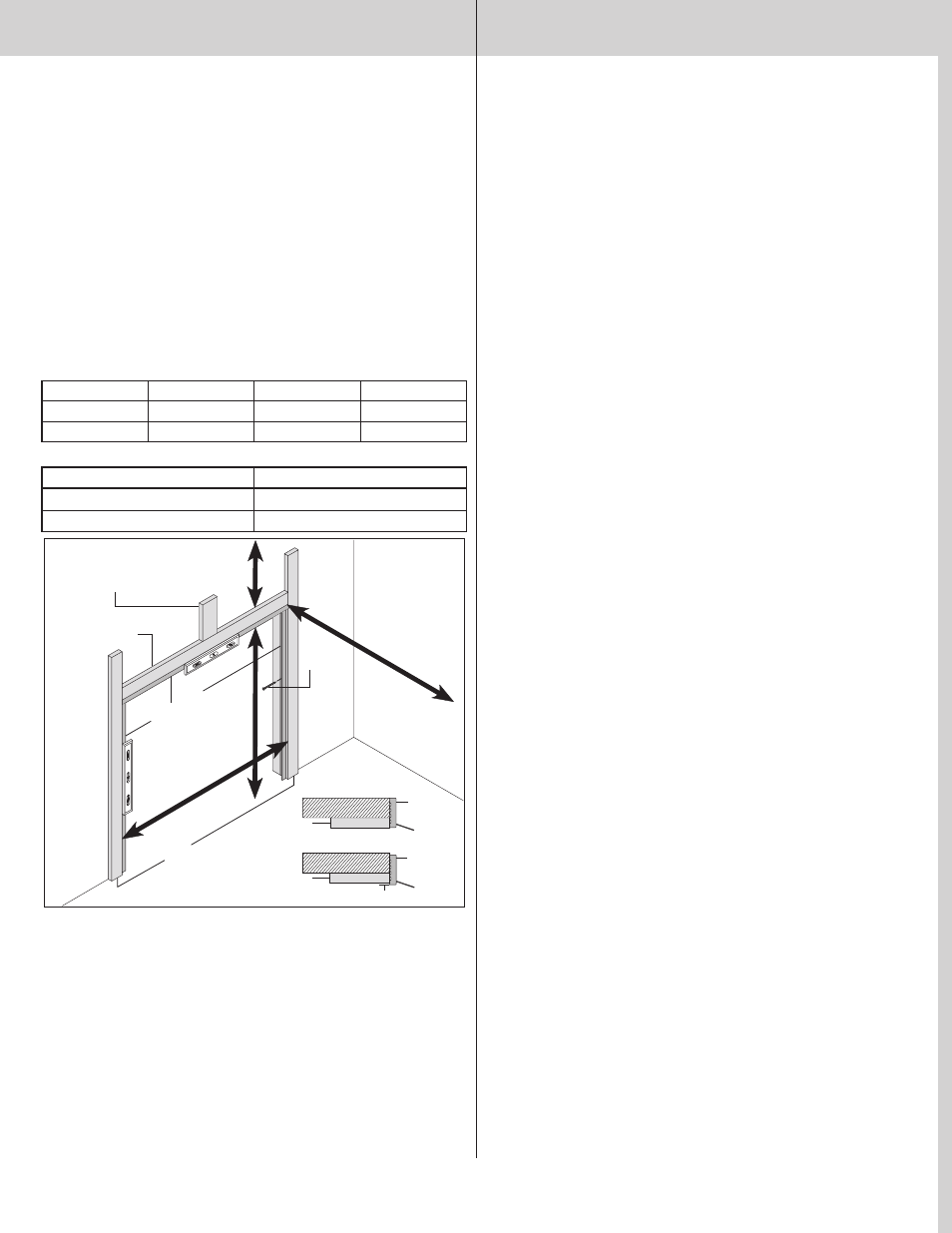

headroom requirement: Headroom is defined as the space needed above the top of the door
for tracks, springs, etc. to allow the door to open properly. If the door is to be motor operated,
2-1/2” (64 mm) of additional headroom is required.
Backroom requirement: Backroom is defined as the distance needed from the opening back
into the garage to allow the door to open fully.
BACkROOM REQuIREMENTs
DOOR hEIGhT TRACk MANuAL LIfT MOTOR OPERATED
6’0” to 7’0” 12”,15” Radius 98” (2489 mm) 125” (3175 mm)
7’1” to 8’0” 12”,15” Radius 110” (2794 mm) 137” (3480 mm)
hEADROOM REQuIREMENTs
TRACk TyPE sPACE NEEDED
15” Radius track 14-1/2” (368 mm)
12” Radius track 12-1/2” (318 mm)
Weather seal
Level header
Door width
Jambs
Backroom
Plumb
jambs
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weather
Seal
Weather
Seal
Jamb
Q.I. track
F.A. track
Jamb
1/8” to 1/4”
4
