– 2 –

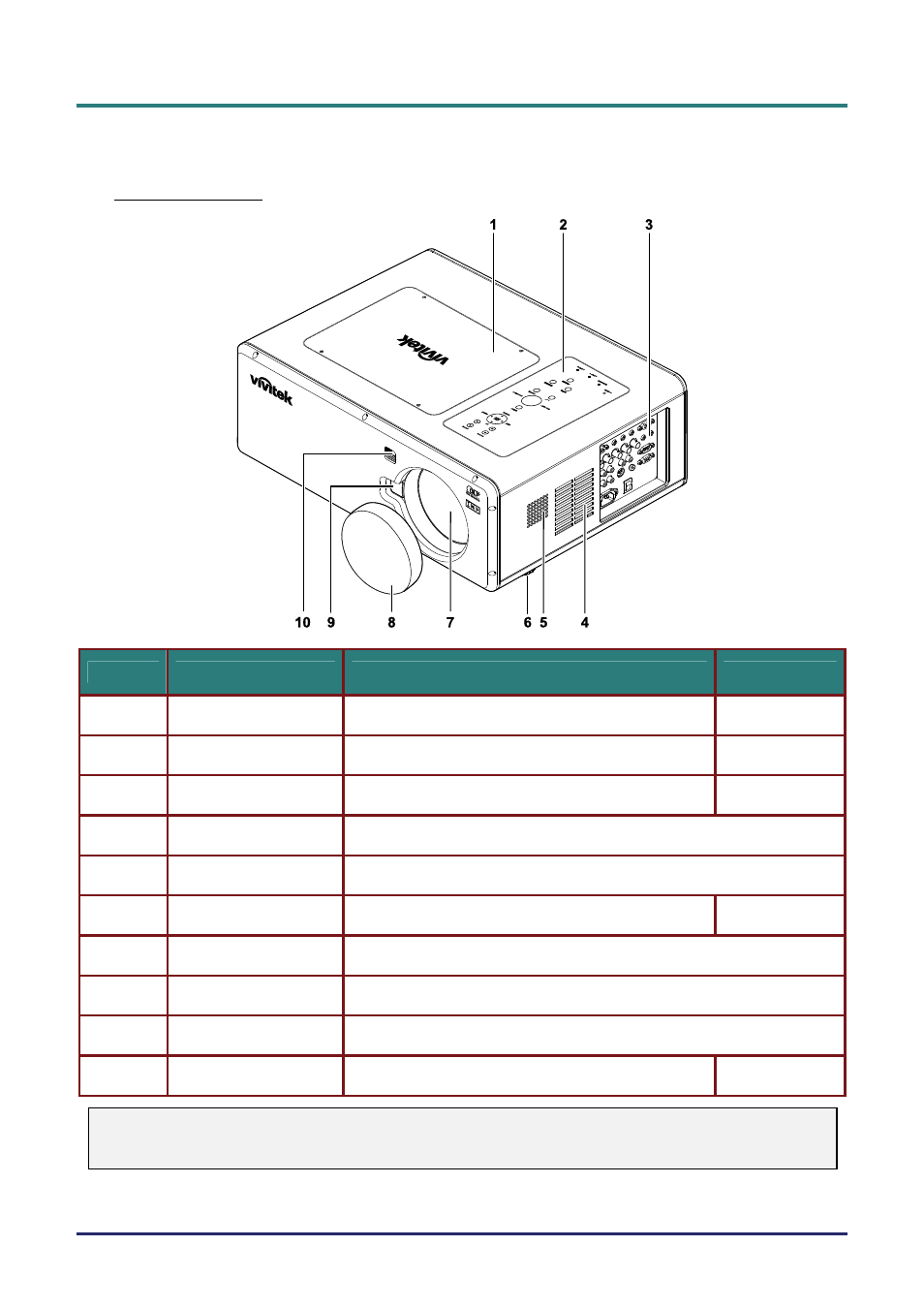

Views of Projector Parts
Front-right View
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Lamp cover
Remove cover to replace lamp or color wheel
2.
OSD control panel
See OSD Controls and Status LEDs
3.
I/O connector panel
Connect various input devices
4.
Intake vent
Lamp cooling vent – do not obstruct
5.
Speakers
Built-in stereo speakers
6.
Height adjuster
Adjusts level of projector
7.
Lens
Remove lens cap before use
8.
Lens cap
Covers lens to protect when not in use
9.
Lens release button
Press the release button before removing the lens
10.
IR receiver
Receiver for IR signal from remote control
Important:
Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool.
Do not obstruct any of the grill openings.
