Correcting Keystone by Using the Remote Control
Important:
When adjusting the keystone, place the projector in the following position.
Horizontal: set to the lens center
Vertical: set to the maximum top

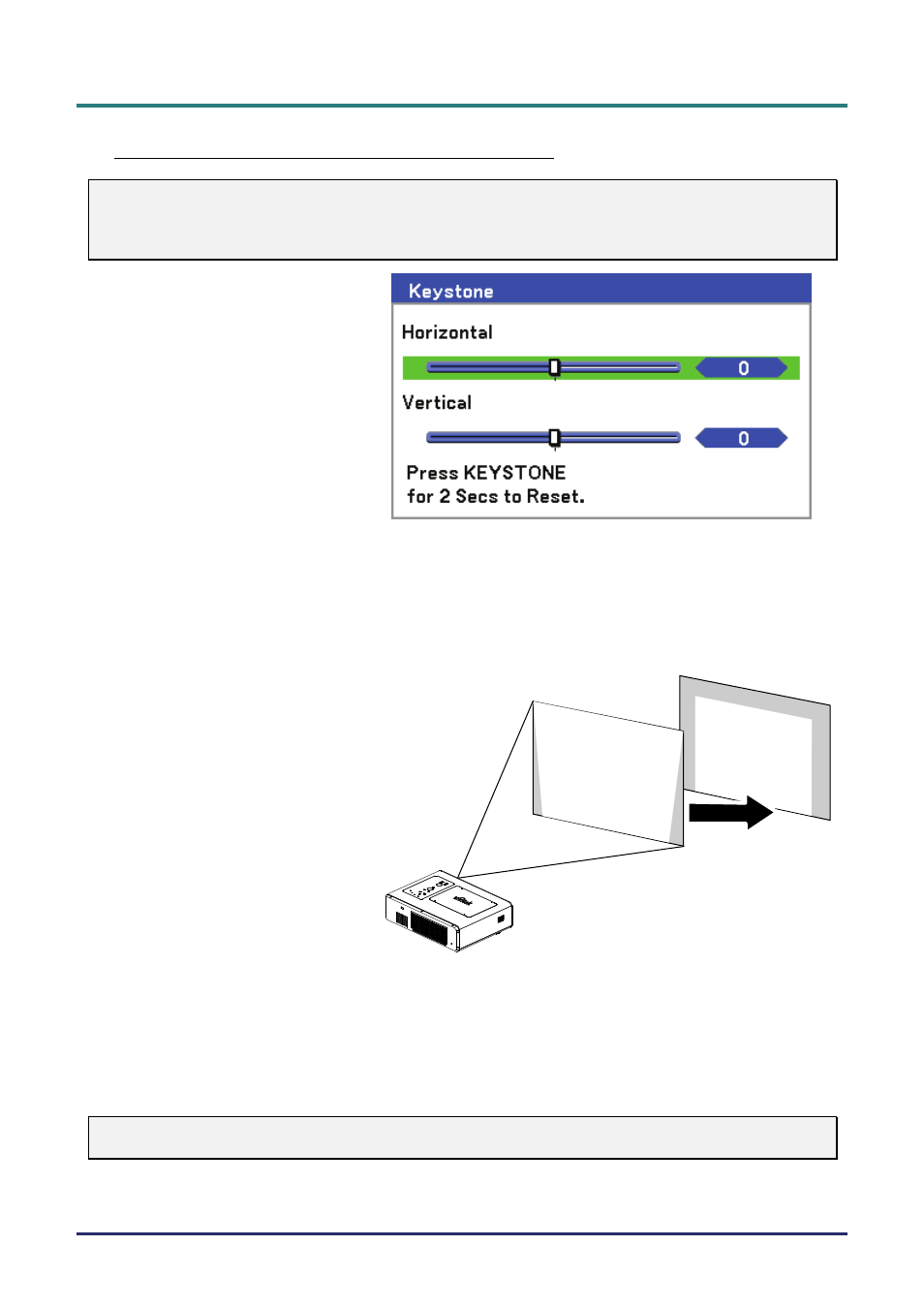

1.
Press the Keystone button
to display the Keystone
window.
2.
Adjust the Horizontal and
Vertical sliding bars using
the select
▲▼◄► but-
tons.
3.
Adjust the slide bars until
the screen trapezoid is a
regular shape (see dia-
gram).
4.
Press Cancel or Menu to
return to the projected im-
age.
Note:
Holding down the Keystone button for 2 seconds resets the default keystone values.
