– 8 –

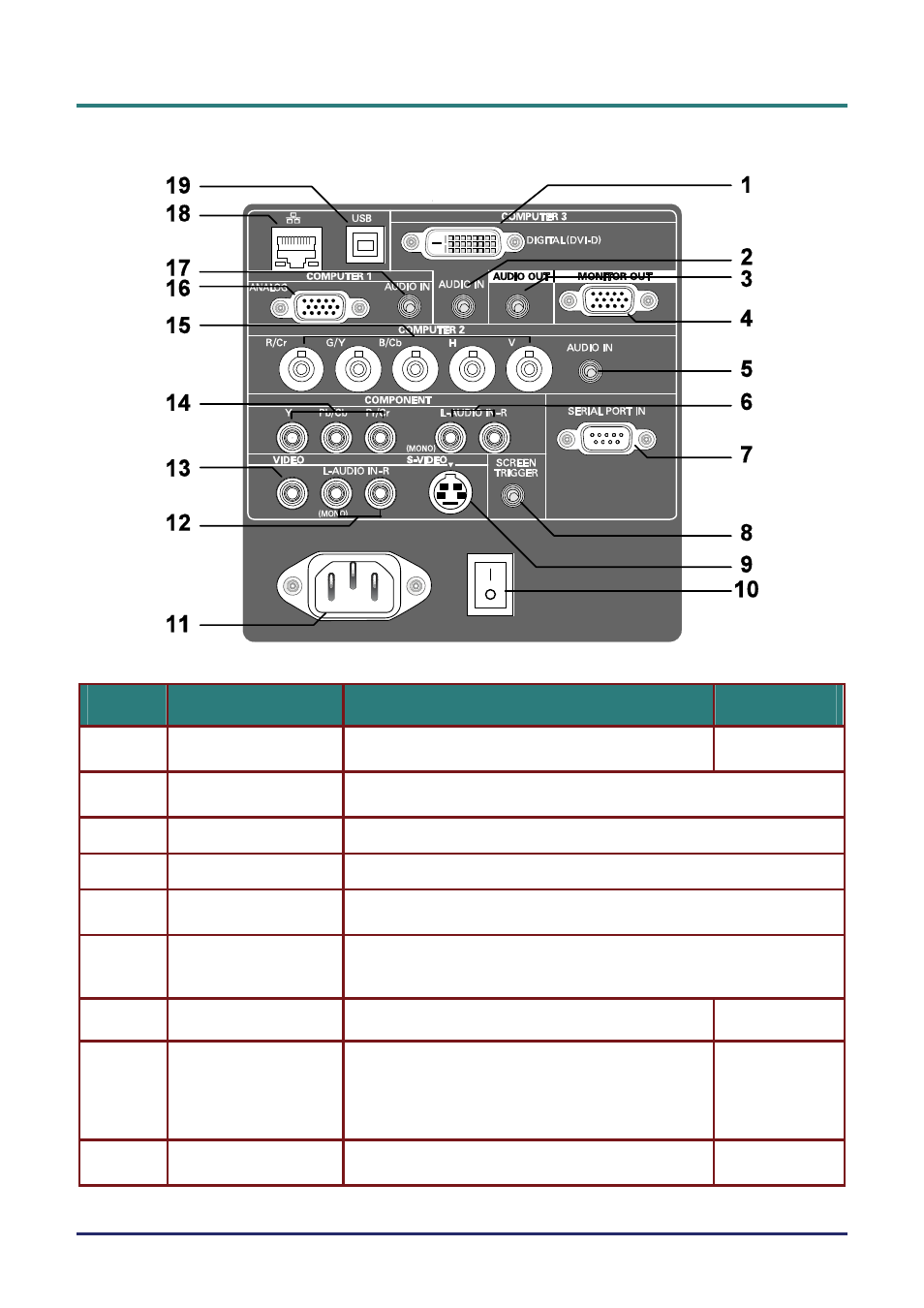

Terminal Panel Features
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
COMPUTER 3 IN
Connect the DVI-D cable (not supplied) from a
computer
2.
AUDIO IN
(COMPUTER 3)
Connect the audio cable (not supplied) from the input device
3.
AUDIO OUT
Audio loop-thru
4.
MONITOR OUT
Connect to a monitor
5.
AUDIO IN
(COMPUTER 2)
Connect the audio cable (not supplied) from the input device
6.
AUDIO IN [L
(MONO)/R]
(COMPONENT)
Connect an RCA audio cables (not supplied) from the input device
right and left channels
7.
SERIAL PORT IN
Installation control
8.
SCREEN TRIGGER
When connected to the screen through a commer-
cially available cable, the screen deploys
automatically on start up of the projector. The
screen retracts when the projector is powered off
(see notes below)
9.
S-VIDEO
Connect a commercially available S-video cable
from a video device
