• Slide the post (AH5) into the tube (AH1).
Insert set screw (M6x8) and tighten, after
centering the post. Insert plastic cap (H26).
• Insert the knee pad post (AH1) into the
bracket on the press arm floor support
(AC1).
• Insert the press arm seat back post (AJ2)
into the bracket on the press arm upright
(AB2). Thread the pull pin (B) until post is
secured in place.
• Attach the lower end of the press arm seat
back support (AJ3) to the press arm seat
back post (AJ2) using the axle (4”) provided.
Center the axle in the connection and slide
a bolt (M10x125) with a flat washer
(10.2x22x2) through the axle. Secure the
bolt with another flat washer and nylon nut
(M10). See diagram for clarification.
• Secure the left and right leg press seat
handlebars (AE2 & AE4) to the leg press
seat bottom support (AT1) using two bolts
(M10x68), four flat washers (10.2x22x2),
and two nylon nuts (M10).
• Connect the leg press seat back support
(AJ7) and leg press seat back post (AJ8)
using three bolts (M10x20) and three flat
washers (10.2x22x2). Attach three nuts (M10)
to the back. Insert the assembly into the bracket
on the leg press upright (AB4).

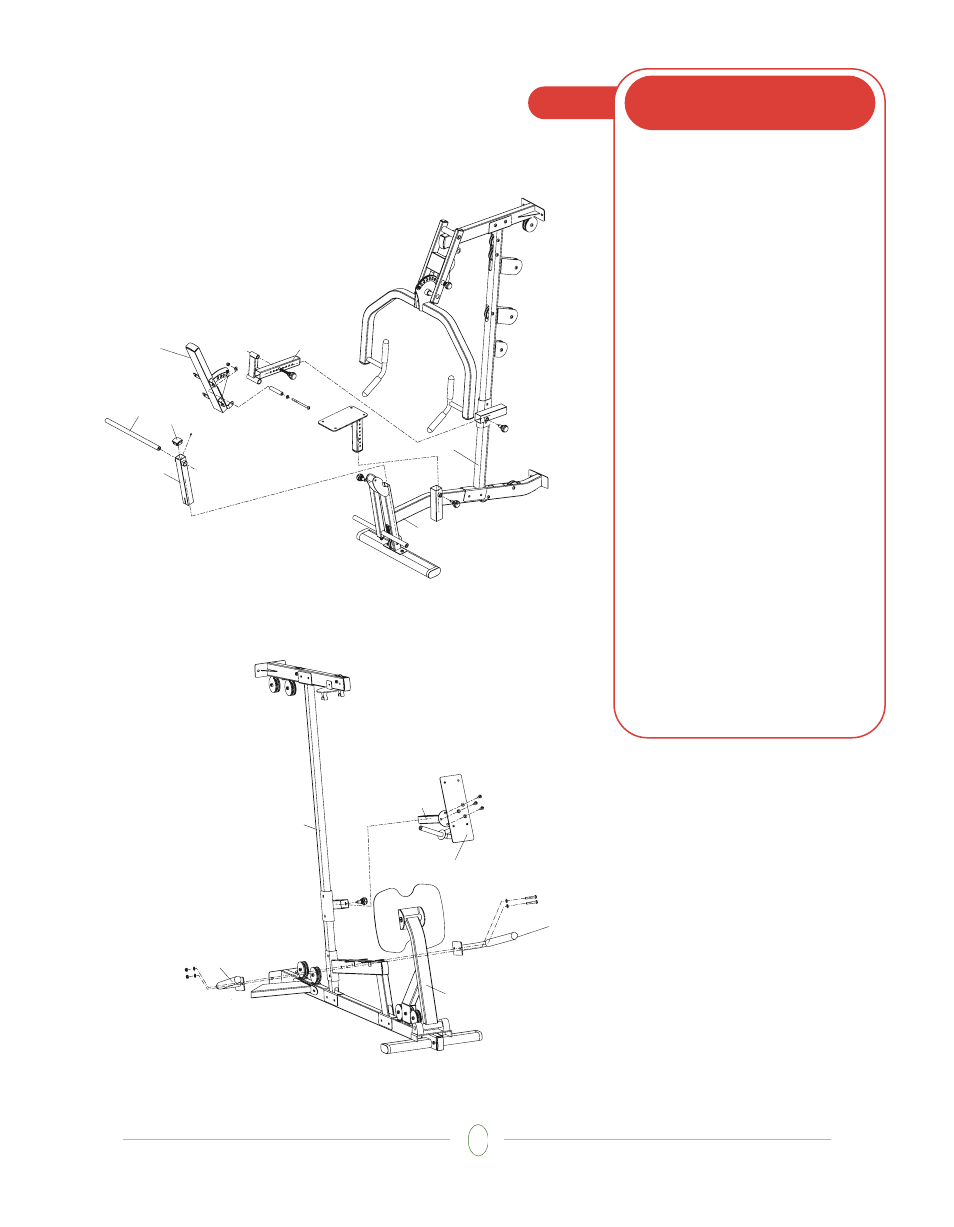

RED BAG
AH1
H26
AC1
AJ3 AJ2
AB2
AH5
AE2
AT1
AJ7
AE4
AJ8
AB4
